7368 ISAM ONT E-240G-B Product Guide Install an E-240G-B ONU
Issue: 01 3FE-46261-AAAA-TCZZA 59
6.6 ONU installation procedure
Use this procedure to install an E-240G-B ONU.
1 Place the ONU:
a On a flat surface, go to step 2.
b On a wall, go to step 3.
c In an outdoor enclosure, go to step 4.
2 Place the ONU on the flat surface, such as a desk, horizontally resting on its four feet as
shown in Figure 19; go to step 7.
Figure 19 E-240G-B ONU on a desk
Note 1 — Observe the local and national laws and regulations
that may be applicable to this installation.
Note 2 — The ONU should be installed in accordance with the
applicable requirements of the NEC or CEC. Local authorities
and practices take precedent when there is conflict between the
local standard and the NEC or CEC.
Note 3 — The ONU must be installed by qualified service
personnel.
Note 4 — Indoor ONUs must be installed with cables that are
suitably rated and listed for indoor use.
Note 5 — See E-240G-B detailed specifications in the
E-240G-B unit data sheet for the temperature ranges for ONUs.

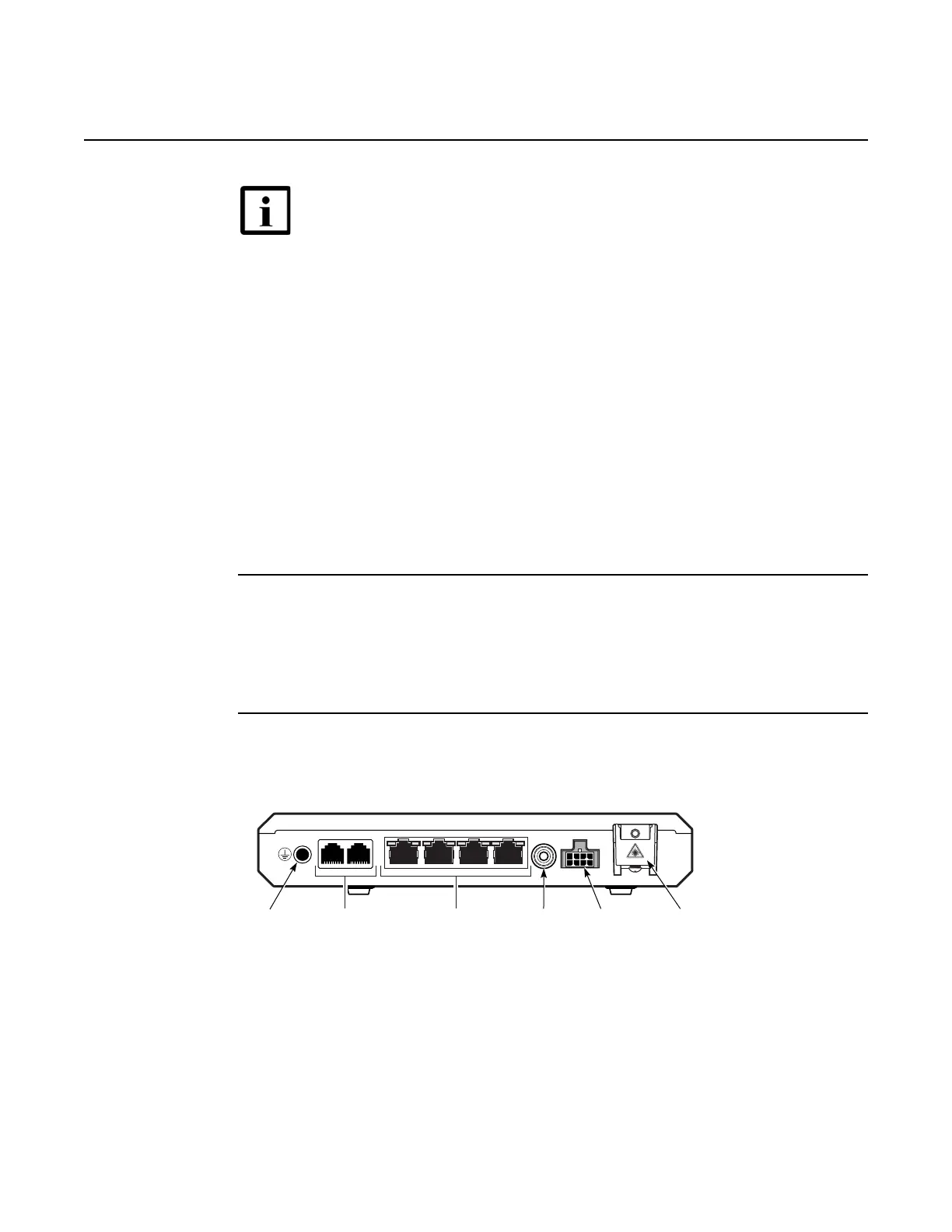

DATA 1 DATA 2 DATA 3 DATA 4
ON/OFF
POWER
POTS 1 POTS 2
POTS ports
(RJ-14)
Gigabit Ethernet
ports (RJ-45)
On/off
button
Power
connector
SC/APC
connector
Ground lug
24108
