Nokia XS-2426G-B User Manual

3
Connect the Ethernet cables to the RJ-45 ports.
4
Route the POTS cable directly to the RJ-11 port as per local practices.
5
DANGER
Hazard
Fiber cables transmit invisible laser light. To avoid eye damage or blindness, never look directly
into fibers, connectors, or adapters.
WARNING
Equipment Damage
Be careful to maintain a bend radius of no less than 1.5 in. (3.8 cm) when connecting the fiber
optic cable. Too small of a bend radius in the cable can result in damage to the optic fiber.
36736
WPS
WLAN
ON/OF
F
P
O
W
ER
USB
L
A
N1
L
A
N2
L
A
N3
L
A
N4
TEL2
Ethernet
ports (4)
(RJ-45)
Wi-Fi
security/
on/off buttons
On/off
button
Power
USB
POTS
ports (2)
(RJ-11)

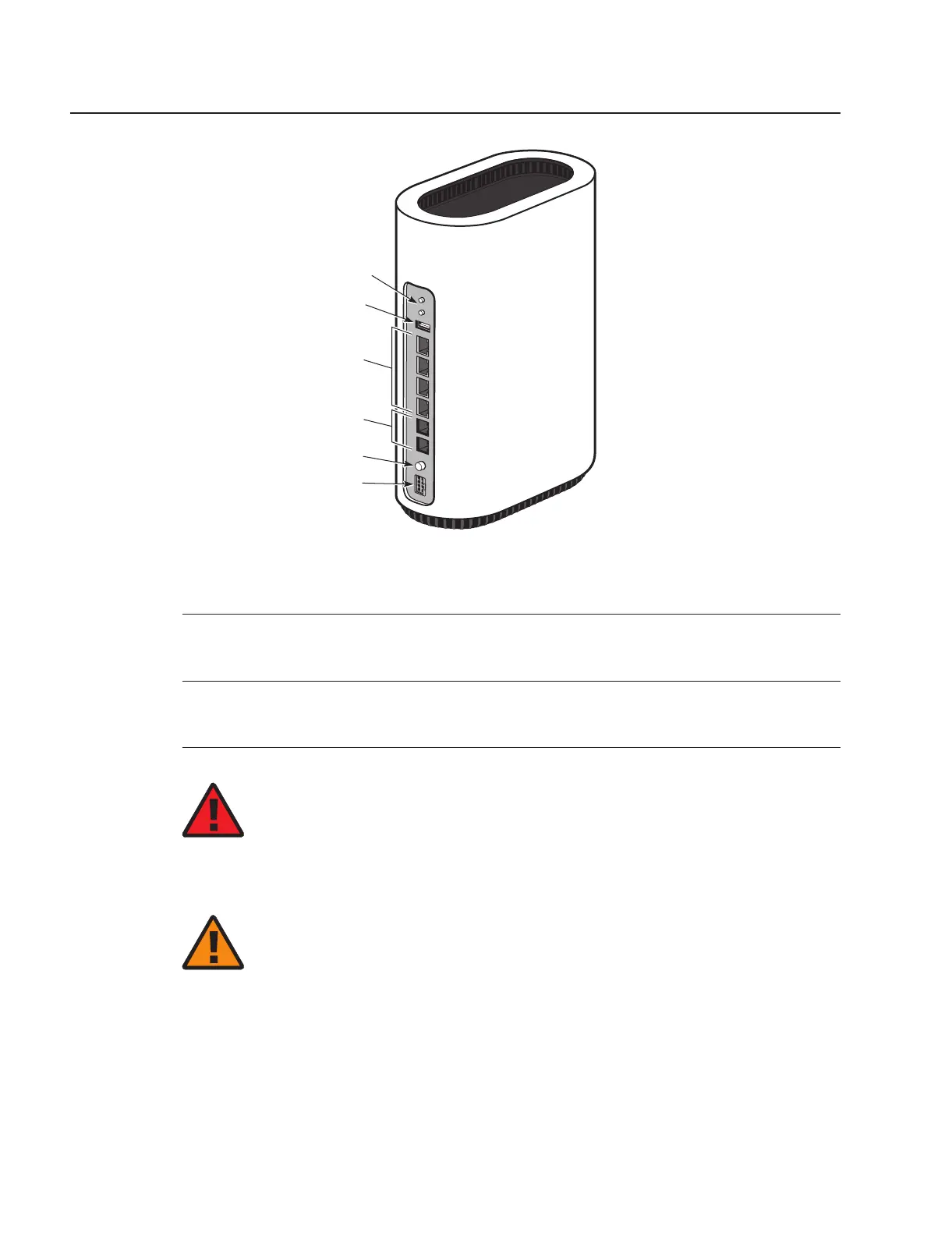

Install a XS-2426G-B indoor ONT
Procedure
Nokia ONT
Review Review
© 2021 Nokia. Nokia Confidential Information
Use subject to agreed restrictions on disclosure and use.
3FE-49546-AAAA-TCZZA
December 2021
66 Issue 1

Nokia XS-2426G-B Specifications

General

GPON Ports	1
Gigabit Ethernet Ports	4
FXS Ports	2
Power over Ethernet	No
VLAN Support	Yes
Jumbo Frame Support	Yes
Operating Temperature	0°C to 40°C
Humidity	5% to 95% (non-condensing)
Wi-Fi Bands	2.4GHz & 5GHz
Management	TR-069
Power Supply	12 V DC
