Table 8-3 LAN Status parameters (continued)
Field Description
Ethernet Rx packets Number of packets received on the Ethernet connection
Ethernet Tx packets Number of packets transmitted on the Ethernet connection
Ethernet Rx bytes Number of bytes received on the Ethernet connection
Ethernet Tx bytes Number of bytes transmitted on the Ethernet connection
You can click
to update the displayed information.
END OF STEPS
8.9 Viewing WAN status
1
Click Status→WAN Status from the left pane. The WAN Status page displays the following
information.
Table 8-4 WAN Status parameters
Field Description
WAN Connection List Drop-down menu listing all WAN connections. The connection shown is the
connection for which WAN status will be shown.
Access type Indicates the access type
Connection mode Connection mode of the WAN connection
VLAN VLAN ID
WAN link status Indicates whether the WAN link is up or down

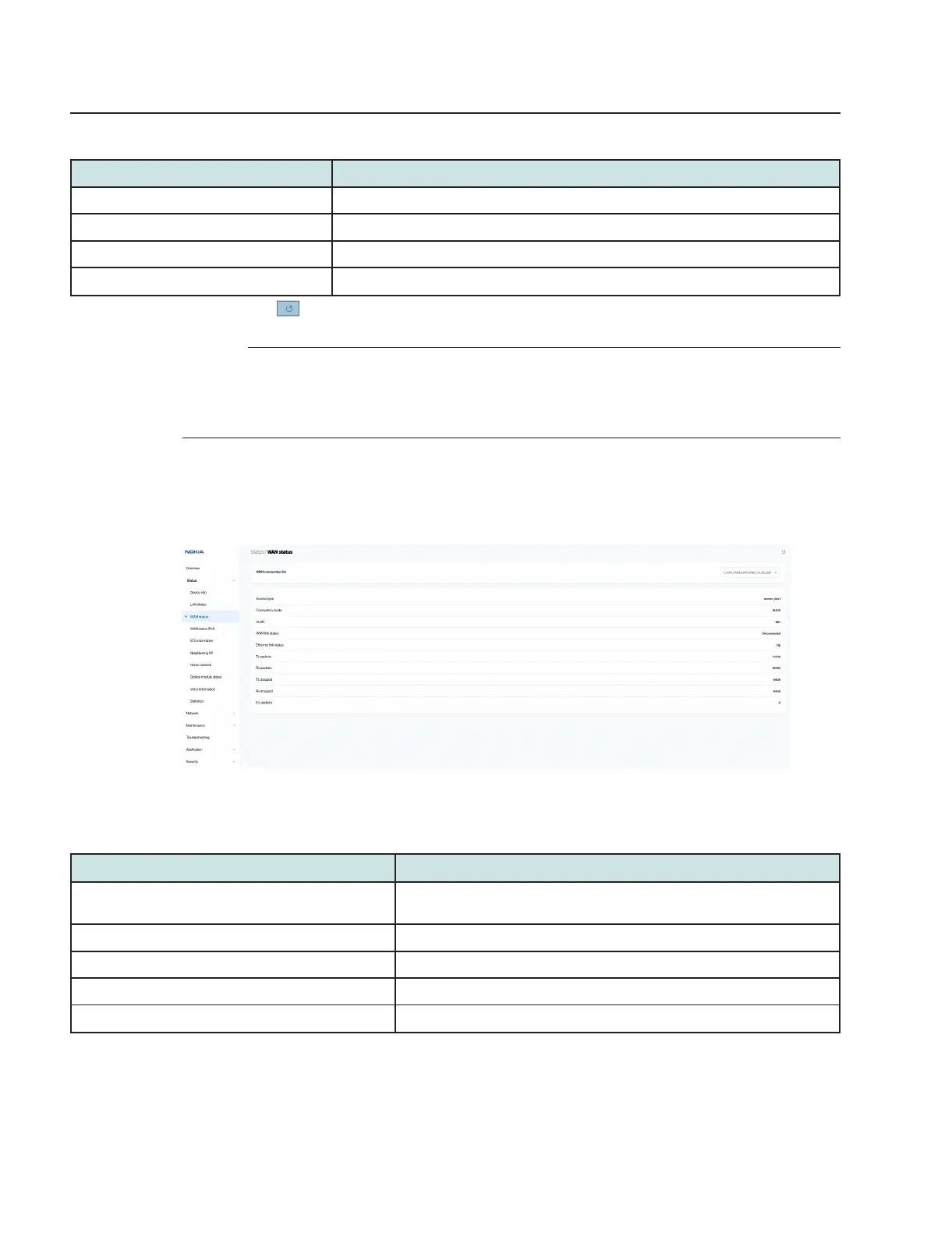

Figure 8-4 WAN Status page
Configure a XS-2426G-B indoor ONT
Viewing device information and connection status
Viewing WAN status
Nokia ONT
Review Review
© 2021 Nokia. Nokia Confidential Information
Use subject to agreed restrictions on disclosure and use.
3FE-49546-AAAA-TCZZA
December 2021
88 Issue 1

Nokia XS-2426G-B Specifications

General

GPON Ports	1
Gigabit Ethernet Ports	4
FXS Ports	2
Power over Ethernet	No
VLAN Support	Yes
Jumbo Frame Support	Yes
Operating Temperature	0°C to 40°C
Humidity	5% to 95% (non-condensing)
Wi-Fi Bands	2.4GHz & 5GHz
Management	TR-069
Power Supply	12 V DC
