a. Determine the location of the two anchor holes for the wall mount bracket. The bracket can
be used as a template for marking and drilling the holes.
It is recommended to use a level to ensure that the ONT unit is installed properly.
b. Drill two holes 35 mm (1.37 in.) depth into the wall and with the centers spaced 157 mm (6.2
in.).
c. Insert the two mounting screws and optional anchors into the holes, leaving a 2 mm (0.078
in.) gap between the screw head and the wall.
d. At this point, perform a test to ensure that the wall mount bracket fits securely over the screw
heads. Mount the bracket flush to the wall so that it does not warp or twist.
e. Remove the wall mount bracket from the wall.
f. Route the power cord through the slot in the wall mount bracket. The ferrite bead on the
power cord should remain on the underside of the wall mount bracket.
g. Connect the power cord to the XS-2426G-B ONT.
h. Install the ONT into the wall mount bracket by lifting the unit above the bracket and sliding it
downward onto the bottom ledge of the bracket. See
Figure 6-4, “ONT to wall mount
connection” (p. 70)
.

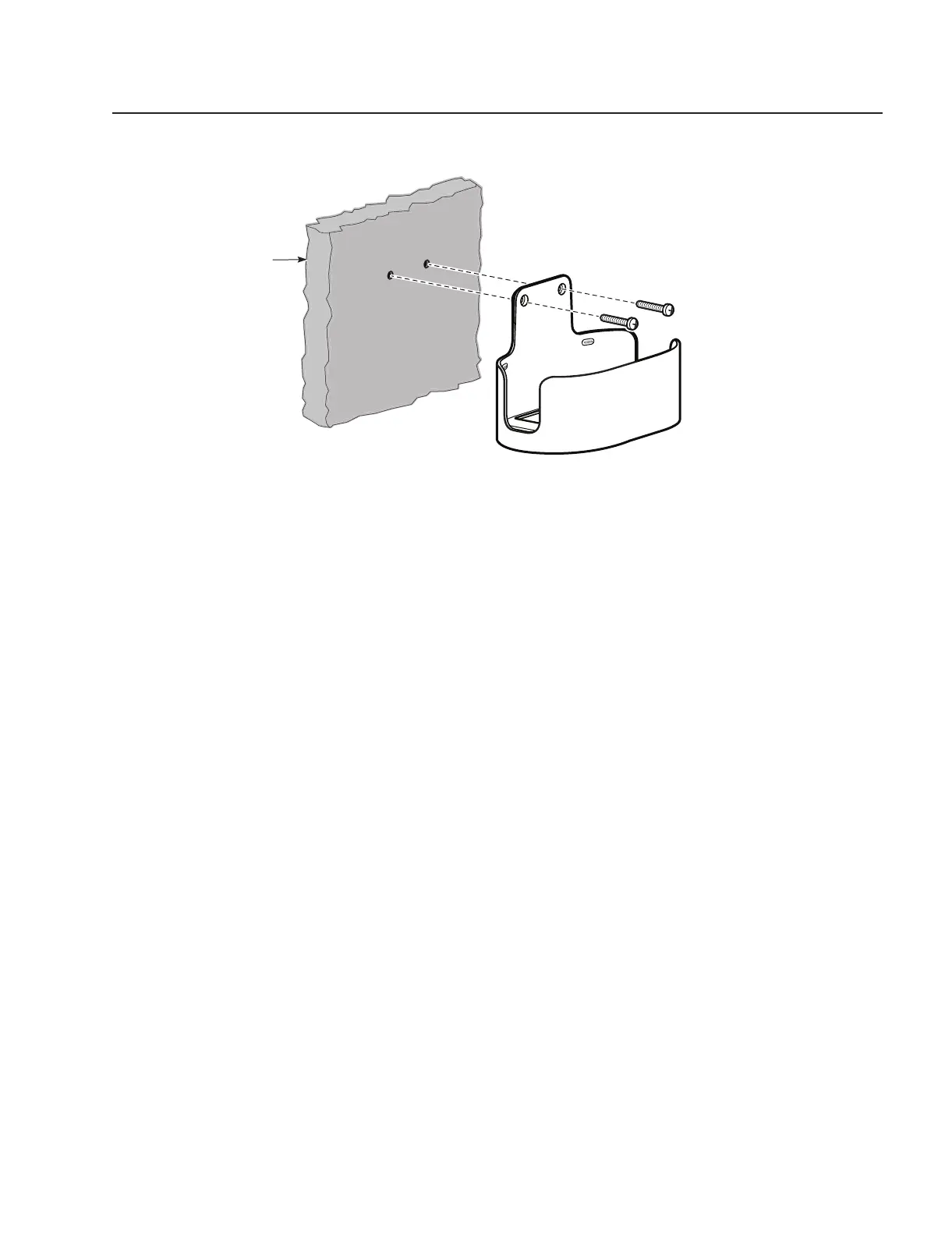

Figure 6-3 XS-2426G-B wall mount bracket
Install a XS-2426G-B indoor ONT
Wall mount an XS-2426G-B indoor ONT
