OBL MB Series User Manual

6
19
MB MC
POS. MECHANISM COMPONENTS
5 VALVE SEAT
6 VALVE GUIDE
8 O-RING
9 O-RING
14 VALVE HOUSING
15 VALVE
18 THREADED STUB
21 LIQUID END
29 SCREW
32 DIAPHRAGM
33 YOKE
47 FLANGE
54 RING NUT
55 O-RING
65 WASHER
100 NUT
101 PUMP HOUSING
102 SLIDE
103 SPRING
105 ECCENTRIC SHAFT
111 ADJUSTMENT SPINDLE
112 GUIDE
113 KNOB
117 GEAR CASING
118 MOTOR
119 OIL FILLING PLUG
120 OIL WINDOW
121 OIL DRAIN PLUG
MB - BALL BEARING
122
MC - BUSH
124 DOWEL
125 SCREW
131 CIRCLIP
132 O-RING
133 O-RING
136 O-RING
137 SEAL
138 ADHESIVE SCALE
158 ENDLESS SCREW
159 O-RING
162 WORM WHEEL
172 BALL BEARING
173 BALL BEARING
174 KEY
180 SCREW
190 O-RING
198 SCREW
219 O-RING
329 ELASTIC PIN
332 O-RING
Head Construction A

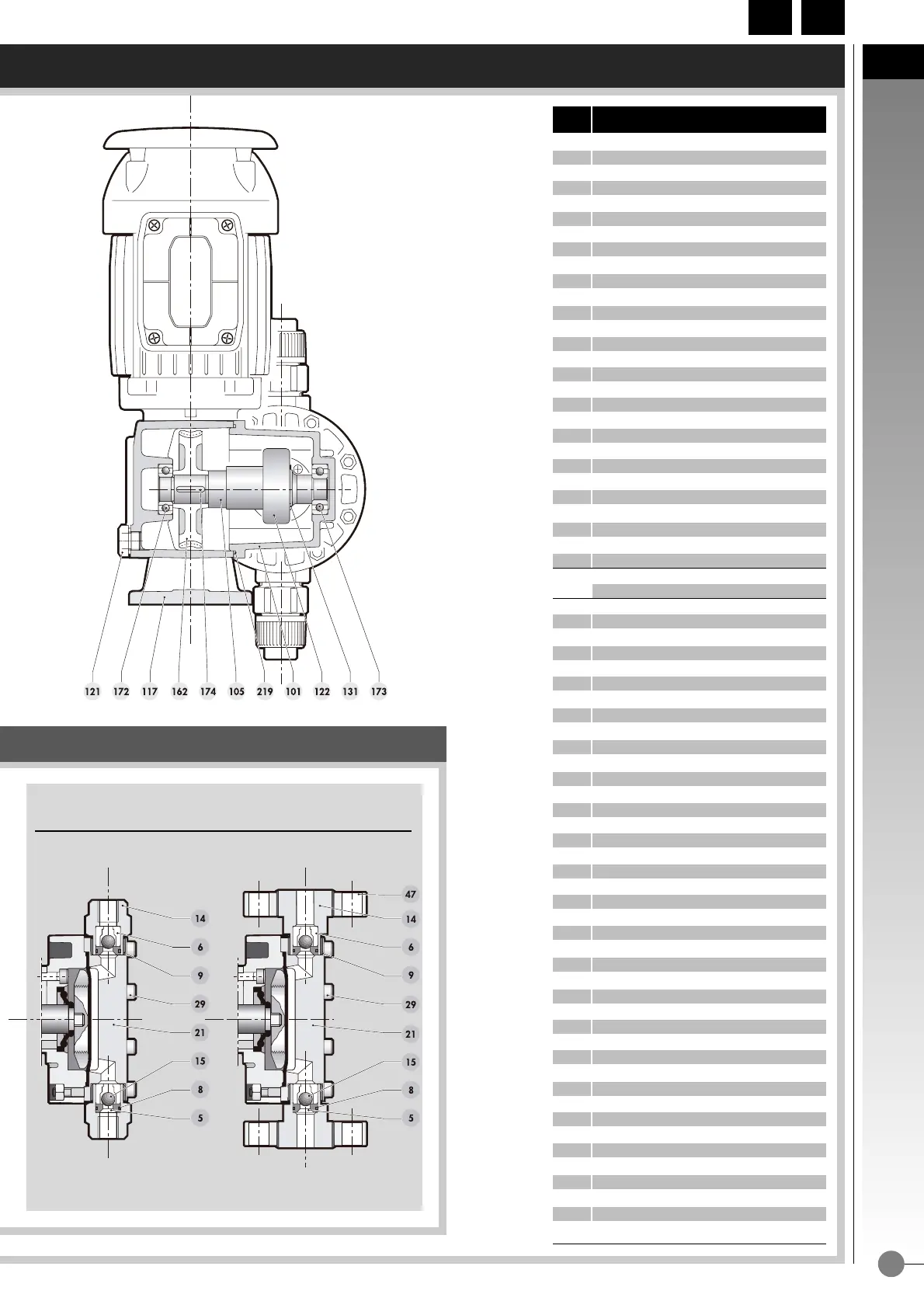

MECHANISM SECTIONAL DRAWING
SECTIONAL DRAWING
