1.2.6 DRUM CLEANING

The cleaning blade and the used toner tank are contained in the toner cartridge.

The Discharge Lamp and A counter blade system is used for drum cleaning. The

Discharge Lamp[C] discharge the drum surface. The cleaning blade [A] removes

any toner remaining on the drum after the image is transferred to the paper. This

removed toner is stored in the used toner tank [B].

There is no used toner overflow detection mechanism, because the used toner

tank is large enough for the lifetime of the toner cassette.

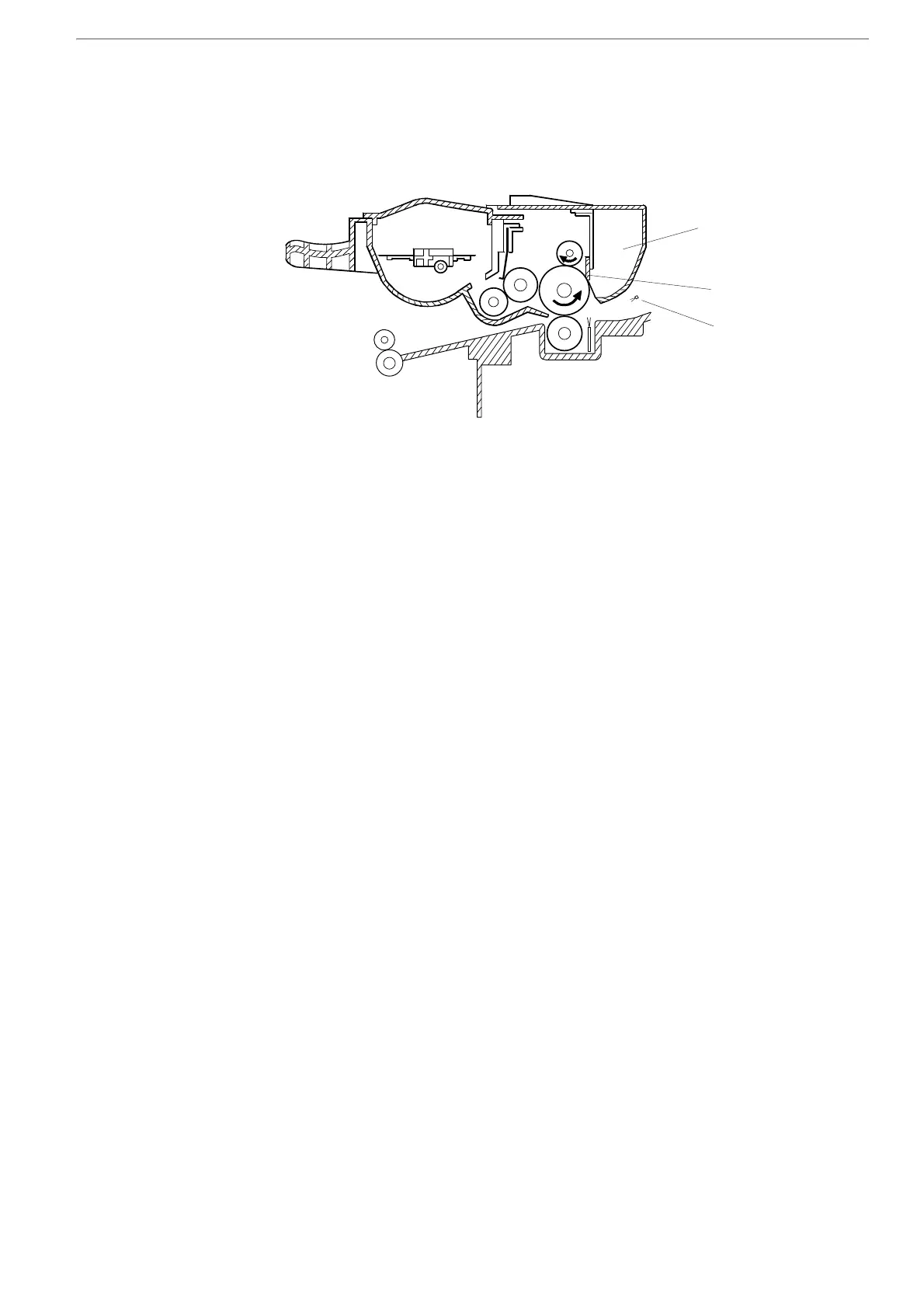

G182D102.WMF

[A]

[B]

[C]
