1.2.2 CHARGE

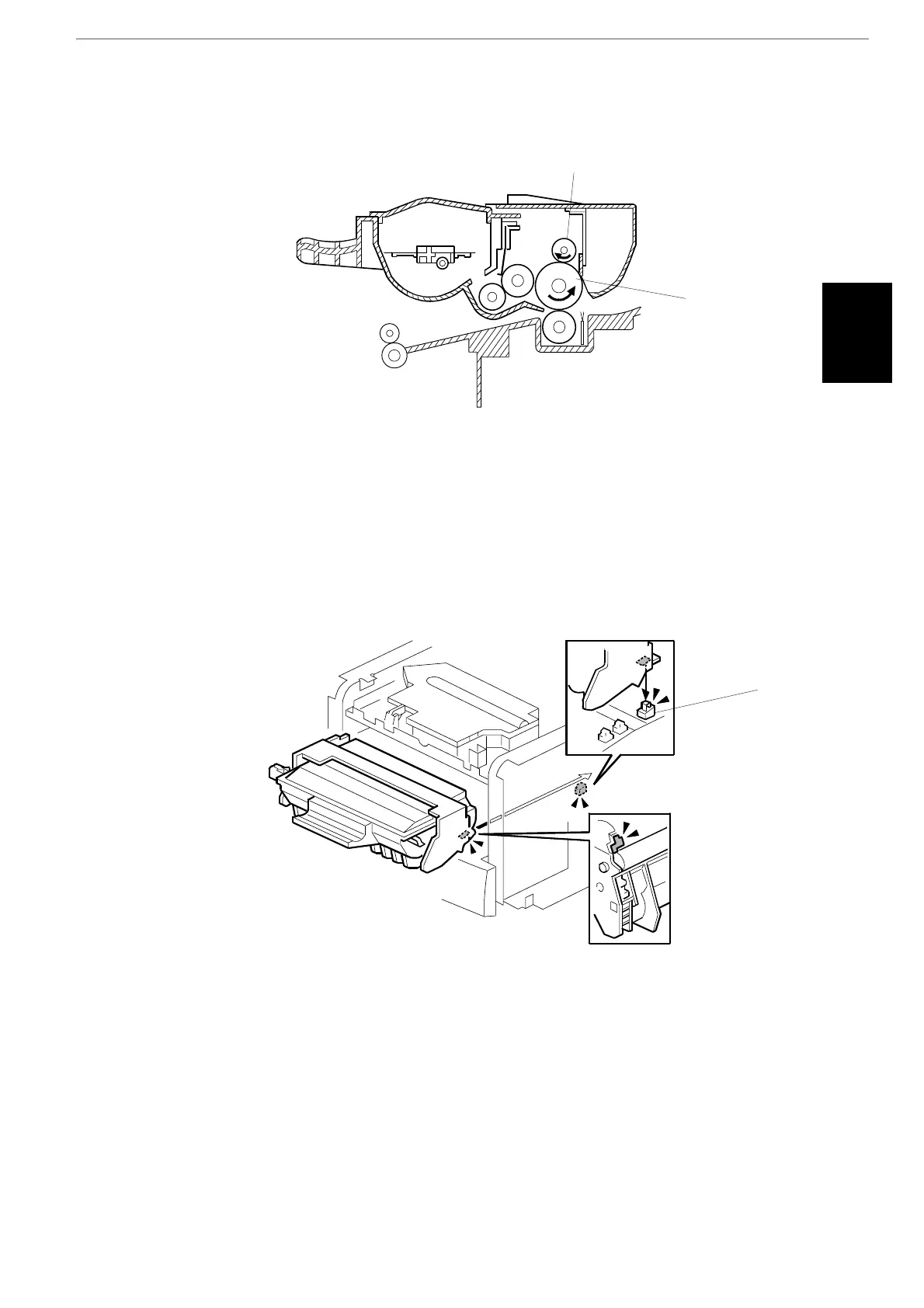

The OPC (Organic Photoconductor) drum [A] used in this machine is small in
diameter. This allows a very compact design.
A charge roller [B] charges the photoconductor. The charge roller has the
advantage of not generating ozone. A large negative voltage is applied from the
Power Supply Unit board to the charge roller. This charge roller gives the OPC
drum surface a negative charge.
The voltage to the charge roller is supplied through the terminal [C] from the Power
Supply Unit board.
