PRINTER 3000 304 995 - 01

PRINTER MODEL-L1

          

（

G191

）

SERVICE MANUAL

TECHNICAL DOCUMENT

エラー

スタイルが定義されていません。

6 September 2005

1-20

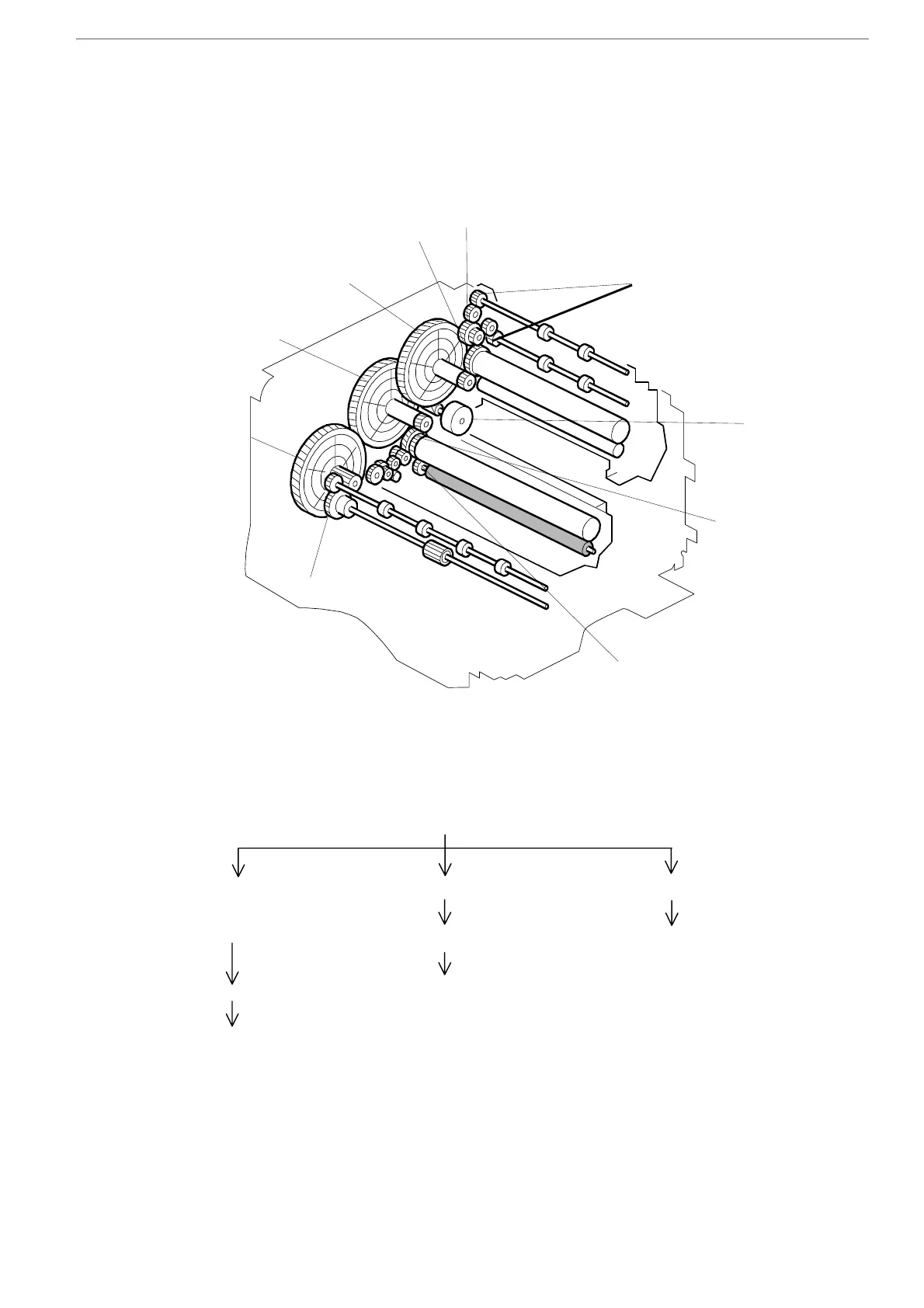

1.2.10 PAPER FEED DRIVE RELEASE AND FUSING DRIVE

RELEASE

The main motor drives the paper feed unit, the transfer roller, the toner cassette,

and fusing unit through a series of gears as follows.

Main motor [A]

Idle gear 1[B] Idle gear 2 [C] Idle gear 3 [D]

Hot roller gear [H] OPC drum gear [F] Paper feed

drive gear [E]

Idle gear 4 [I] Transfer roller gear [G]

Exit roller gear [J]

G182D009.WMF

[A]

[B]

[C]

[D]

[E]

[F]

[G]

[H]

[I]

[J]
