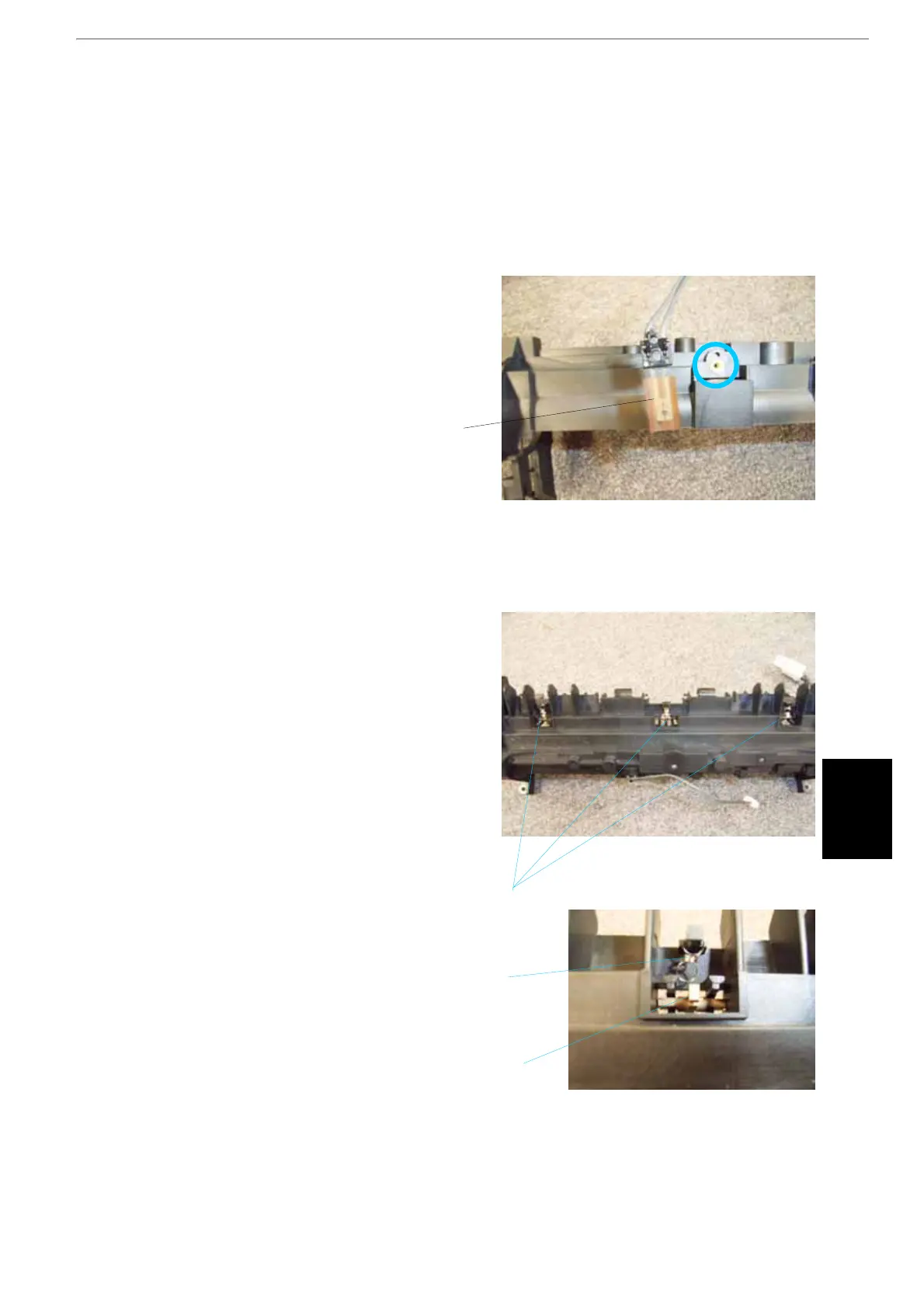

2.3.5 THERMISTOR

Preparation:

• Remove the paper exit assembly (* 2.3.2).

[A]: Thermistor (1 screw)

NOTE: When reassembling, do not

damage the thermistor, and check

that the element touches the hot

roller.

2.3.6 HOT ROLLER STRIPPERS

Preparation:

• Remove the paper exit assembly (*

2.3.2).

• Remove the fusing lamp and hot

roller (* 2.3.3).

There are 3 hot roller strippers [A] in the

fusing unit.

[B]: Hot roller stripper (1 spring [B] each)

NOTE: When reassembling, be careful

not to lose the spring [B].




[A]

[B]
