PRINTER 3000 304 995 - 01
i
PRINTER MODEL-L1
（
G191
）
SERVICE MANUAL
TECHNICAL DOCUMENT
2-4
2.2 LASER UNIT
WARNING FOR THE LASER UNIT
This machine contains a laser beam generator. Laser beams can cause
permanent eye damage. Do not open the laser unit or look along the laser
beam path while the main power is on.

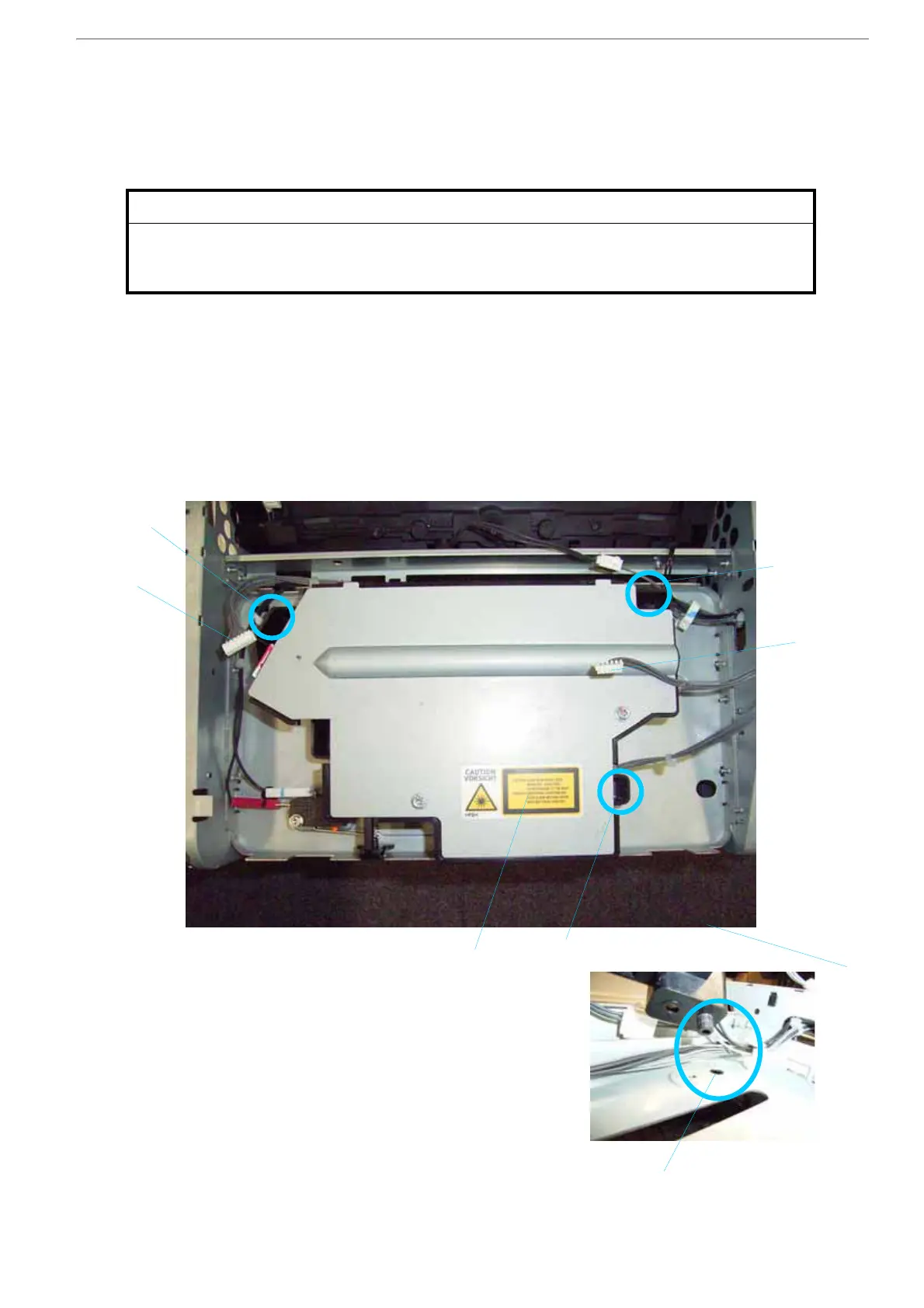

Preparation:
1) Remove the upper unit. (See Upper Unit Removal.)
[A]: Laser diode unit harness
[B]: Polygon mirror motor harness
[C]: Laser unit (3 screws [circled in blue above])
NOTE: When re-assembling, make sure to set the
positioning pin [D] in the hole [E].
[A]
[B]
[C]
[C]
[C]
[F]
[D]
[E]
This device complies with IEC60825-1:1993+A1:1997+A2:2001 standard, is classified
as laser class 1 product and contains one class 3B laser diode, 10.72 mW max,
770-795 nm and other class 1 LEDs (280 µW at 639 nm)
.
The maximum breakdown output power of radiation of laser diode is 50 mW
at 770-795 nm.
[F]: Warning label (see the following page)
To Next Page
