PRINTER 3000 304 995 - 01

PRINTER MODEL-L1

          

（

G191

）

SERVICE MANUAL

TECHNICAL DOCUMENT

2-5

Replacement

Adjustment

CAUTION

VORSICHT

>PS<

CATION-CLASS 3B LASER RADIATION

WHEN OPEN

AVOID EXPOSURE TO THE BEAM

VORSICHT-LASERSTRAHLUNG KLASSE 3B

WENN ABDECKUNG GEOFFNET

NICHT DEM STRAHL AUSSETZEN

3BLASERCAUTION.WMF

2-6

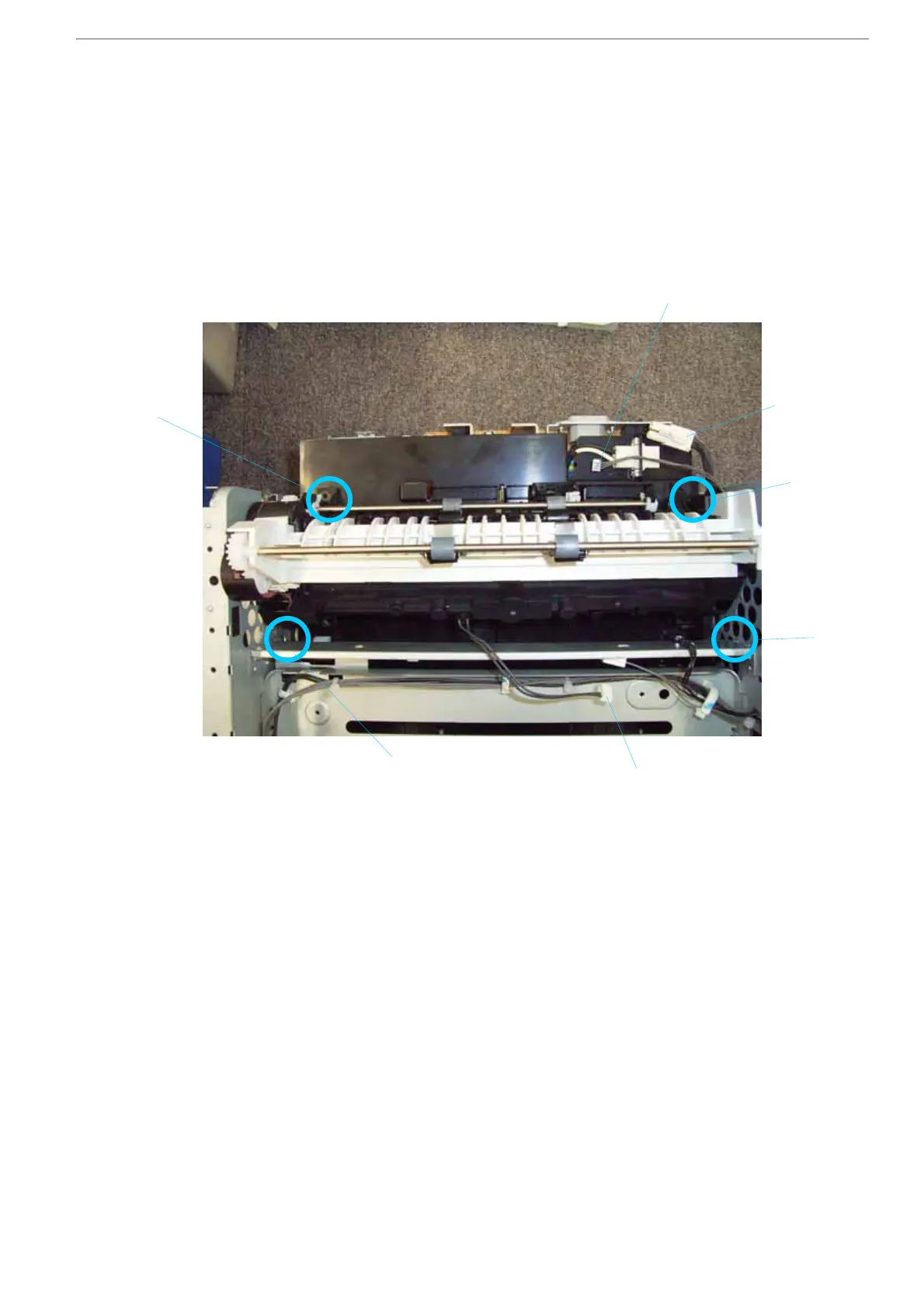

2.3 FUSING AREA

2.3.1 FUSING UNIT

Preparation:

1) Remove the upper unit. (See Upper Unit Removal.)

[A]: Thermistor harness

[B]: Paper exit sensor harness

[C]: Fusing lamp harness

[D]: Fusing unit (4 screws [circled in blue above])


[A]

[B]

[C]

[D]
