Oki MB451 User Manual

Replacing Consumable Items
-168-

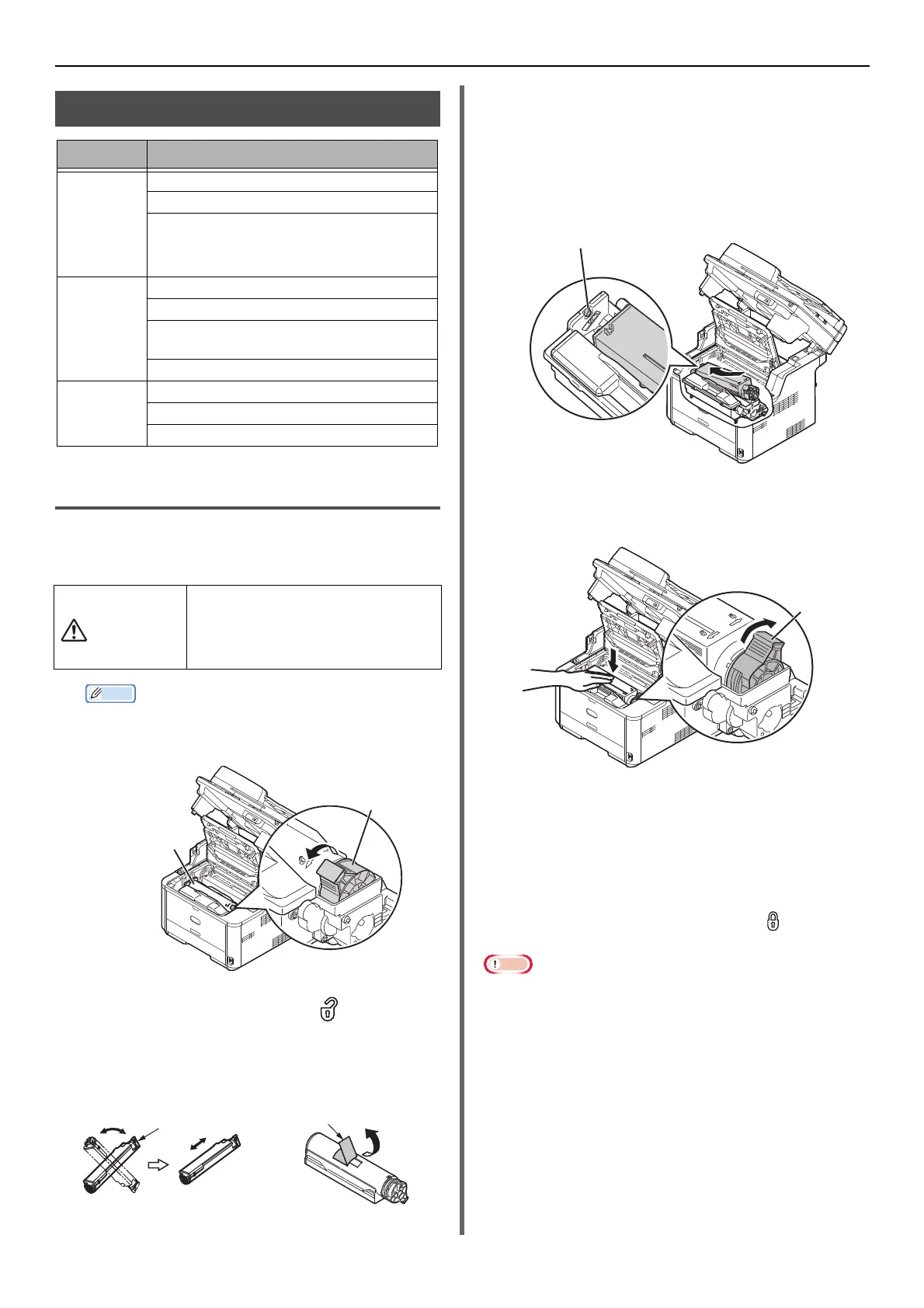

Replacing Toner Cartridges
Procedure for Replacement
1 Open the top cover and remove the used
toner cartridge.
Memo
 When disposing of used toner cartridges by necessity,
poly-bag them, and be sure to follow instructions and
regulations of your local government.
 Rotate the blue lever of the toner cartridge in
the direction of the arrow of on the toner
cartridge until it stops.
 Remove the toner cartridge.
2 Install a new toner cartridge.
 Unpack the new toner cartridge.
 Hold the toner cartridge and gently shake it
several times.
 Place the toner cartridge horizontally and
partially remove the tape from it.
 Hold the toner cartridge with the tape face
down and the blue lever on the right side.
 Insert the toner cartridge, while matching its
left side with the protrusion on the left side of
the image drum.
 Firmly press the grooves on the right side of
the toner cartridge against the protrusion of
the cartridge guide on the right side of the
image drum.
 While holding down the toner cartridge top
with your hand to prevent it from rising,
rotate the blue release lever on the right side
in the direction of the arrow of on the
toner cartridge until it stops.
Note
 When the toner cartridge is not fully fixed, a decline in
print quality may occur.
3 Lightly wipe the whole LED head with a
soft cloth or soft tissue paper.
Model Type
MB451/
MB461/
MB471/
MB471w/
ES4161
MFP
Starter toner cartridge
Toner cartridge
Toner cartridge
(Medium)
MB491/
ES4191
MFP
Starter toner cartridge
Toner cartridge
Toner cartridge
(Medium)
Toner cartridge (Large)
MB441/
MB451/
MB451w
Starter toner cartridge
Toner cartridge
Toner cartridge (Small)
WARNING
Be sure not to throw used toner
cartridges into fire; toner in the
cartridges may scatter and ignite,
causing burn injuries.
Toner cartridge
lever
Toner cartridge
Tape
Protrusion of image drum
lever
