Maintenance > 124
I
MAGE
DRUM
REPLACEMENT
The image drum assembly comes complete with its own installation details which give full
instructions on replacement. You are advised to follow these instructions carefully.
R
EPLACING
THE
TRANSFER
BELT
UNIT
The belt unit is located under the image drum assembly.
Switch off the MFP and allow the fuser to cool for about 10 minutes before opening the
cover. Refer to “Turning off your machine” on page 21 for details.

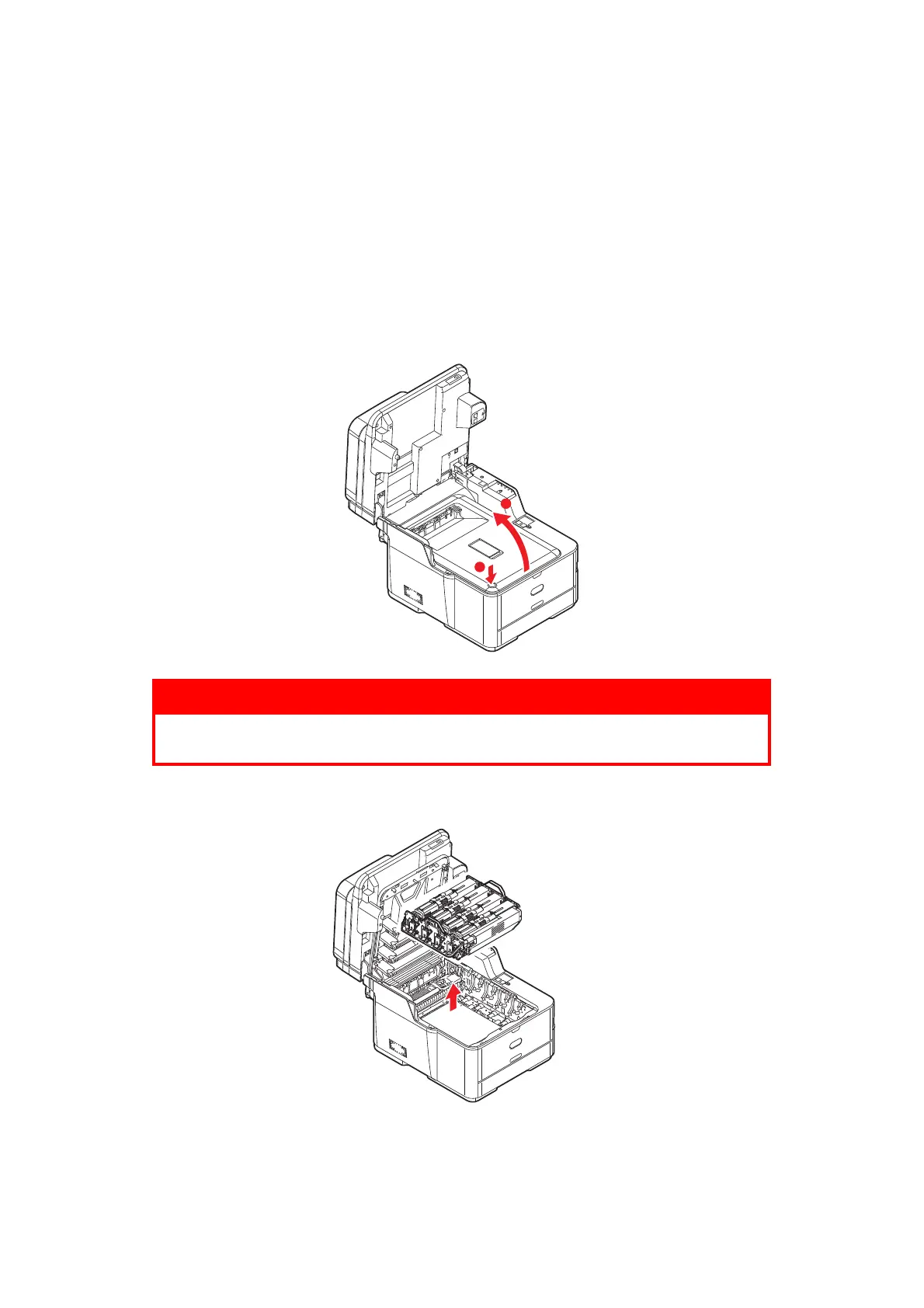

1. Gently raise the scanner.
2. Press the cover release (a) and open the top cover (b) fully.
3. Holding it by its handles, lift the image drum assembly, complete with toner
cartridges, up and out of the printer.
WARNING!
If the MFP has been powered on, the fuser will be hot. This area is
clearly labelled. Do not touch.
