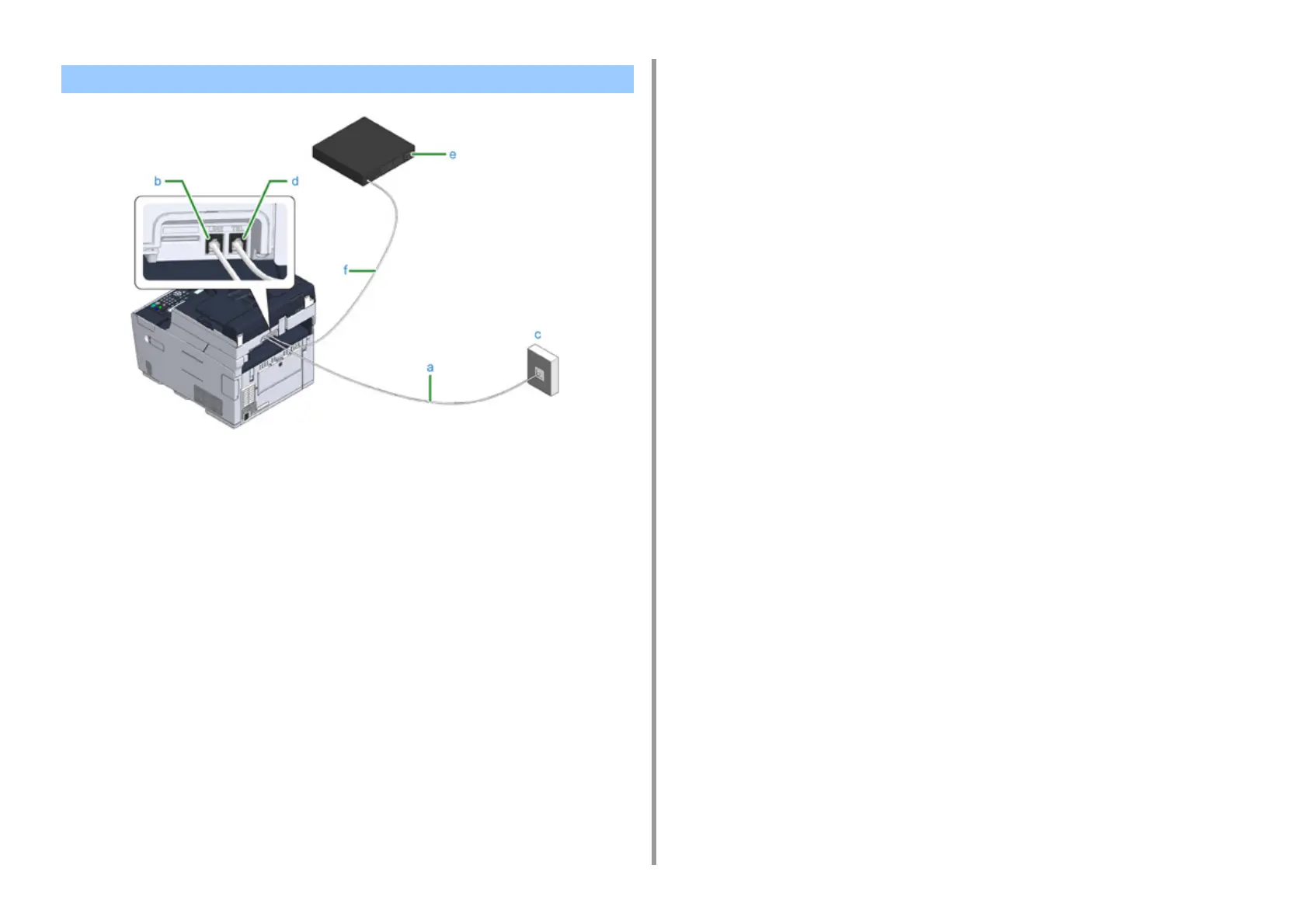

- 32 -
2. Setting Up
1
Plug the included telephon
e cable (a) that is connected to th
e public line
(analog) (c) into the LINE conne
ctor (b) of the machine
2
Remove the teleph
one connector
cover
.
3
Plug the telephone cable (f) that is connecte
d to the CS tuner or digita
l
television (e) into the TEL connecto
r (d) of the machine.
Connecting a CS T
uner or Dig
it
al T
elevision
31
33
Table of Contents
Table of Contents
2
Before Starting
4
Cautions Related to Safety
5
General Cautions
6
About this Manual
8
About Descriptions
8
Trademarks and Other Information
10
License
12
Setting up
13
Installation Requirements
14
Installation Environment
14
Installation Space
15
Checking the Accessories
17
Unpacking and Installing the Machine
18
Installing the Optional Equipment
22
Installing the Wireless LAN Module
22
Installing the Additional Tray Unit
23
Setting the Printer Driver
25
Connecting a Telephone Line
27
Connecting to the Public Line (if Using Only for Faxes)
27
Connecting to the Public Line (if Connecting a Telephone to the Machine)
28
Connecting the Optical IP Telephone
29
Connecting to the ADSL Environment
30
Connecting PBX, Home Telephone or Business Phone
31
Connecting as an Extension Telephone
31
Connecting a CS Tuner or Digital Television
32
Connecting the Power Code
33
Connecting a LAN Cable/Usb Cable
35
Connecting a LAN Cable
35
Connecting a USB Cable
37
Loading Paper in the Tray
39
Checking the Setting Information
41
Setting up this Machine
42
Language Setup
42
Setting the Administrator Password
43
Easy Setup
43
Before Connecting to a Wireless LAN
45
Connecting to a Wireless LAN (Only When the Wireless LAN Module Is Mounted)
45
Enabling Wireless LAN Connection
46
Connecting to an Access Point (Infrastructure)
47
Connecting to the Machine Directly
51
Installing a Driver and Software to a Computer
53
For Windows
53
For Mac os X
56
Basic Operations
60
Names of Components
61
Front View
61
Rear View
62
Inside of the Machine
63
Basic Operations on the Operator Panel
64
Names and Functions
64
Name and Functions on the Operator Panel
65
Adjusting the Angle of the Display Screen
66
Entering Characters
66
Turning the Machine on or off
68
Turning the Machine on
68
Turning the Machine off
69
Loading Paper
70
About Paper Types that Can be Loaded
70
Loading Paper in Tray 1/2/3
73
Loading Paper in the MP Tray
74
Paper Storage
76
Setting a Document
77
About Documents that Can be Set
77
Setting in the ADF
78
Setting on the Document Glass
80
Copy
81
Copying
82
Cancelling Copying
83
Specifying the Number of Copies
84
Scan
85
Sending Scanned Data as an E-Mail Attachment
86
Before Using Scan to E-Mail
86
Entering E-Mail Address to Send E-Mail
87
Saving Scanned Data in a Shared Folder
88
Creating a Shared Folder in a Computer
88
Registering a Destination (Profile)
89
How to Use Scan to Shared Folder
90
Cancelling Scanning
91
Print
92
Printing from a Computer (Windows)
93
For Windows PCL Printer Driver
93
For Windows PS Printer Driver
94
Printing from a Computer (Mac os X)
96
Cancelling a Print Job
97
About Screens and Functions of each Printer Driver
98
Windows PCL Printer Driver
98
Windows PS Printer Driver
100
Mac os X PS Printer Driver
102
Fax
107
Basic Operations of Fax Functions
108
Entering Fax Number to Send a Fax
108
Cancelling a Fax Transmission
109
Setting for Receptions
110
Setting the Reception Mode
110
Drd
111
Maintenance
113
Replacing Consumables
114
Cautions When Replacing Consumables
114
Replacing the Toner Cartridges
115
Replacing the Image Drum
119
Replacing the Image Drum and Toner Cartridge at the same Time
123
Cleaning each Part of the Machine
127
Cleaning the Document Glass
127
Cleaning the LED Head
128
Troubleshooting
130
If Paper Jams Occur
131
If the Error Code Is "370", "371", "372
131
If the Error Code Is "380", "381", "382", "385", "389
136
If the Error Code Is "390
140
If the Error Code Is "391", "392", "393
143
If the Error Code Is "409
145
If a Document Jam Occurs
151
If a Document Is Visible in the Paper Path
151
If a Document Is Invisible in the Paper Path
152
Copy Problems
154
Unable to Copy
154
Scan Problems
156
Unable to Scan
156
Print Problems
157
Unable to Print
157
Fax Problems
159
Unable to Send a Fax
159
Unable to Receive a Fax
160
If an Error Message Is Displayed on the Operator Panel
161
Error Message List
161
Operating Management/ Specifications
171
Changing the Administrator Password
172
Saving Power Consumption with the Power Save Function
173
Setting the Length of Idle Time before Entering Power Save Mode
173
Setting the Length of Idle Time before Entering Sleep Mode
174
Restrictions in Power Saving Function
174
Time
174
Setting the Waiting Time from When an Incoming Call Arrives to When Reception Starts (Response Waiting Automatically Turning the Machine off (Auto Power Off)
175
Setting the Length of Idle Time before Auto Power off Works
176
Specifications
177
General Specifications
177
Copier Specifications
178
Fax Specifications
178
Scanner Specifications
179
Printing Specifications
179
Network Specifications
180
Wireless LAN Specifications (Option)
181
Menu List
182
Contact Us
197
