3.2.7
Semi-automatic sheet feeder (SASF) (See Figure 3-14.)
This function sets the print start position of the paper automatically when using cut-sheet and
continuous sheet paper.
The procedural operation is as follows:
(I)
When using a cut-sheet
(SASF)
1)
Set the release lever to the cut-sheet side (rear side).
2)
Insert paper from behind the platen.
3)
Pull the bail arm forward to set it to the open state, causing the
SASF
switch to be turned
on.
4)
LF operation is’started and paper will be fed to the print position.
5)
About 2.31 inches of a sheet is fed.
5)
If the bail arm is returned to the original position, a reverse LF of about 0.15 inch is
performed.

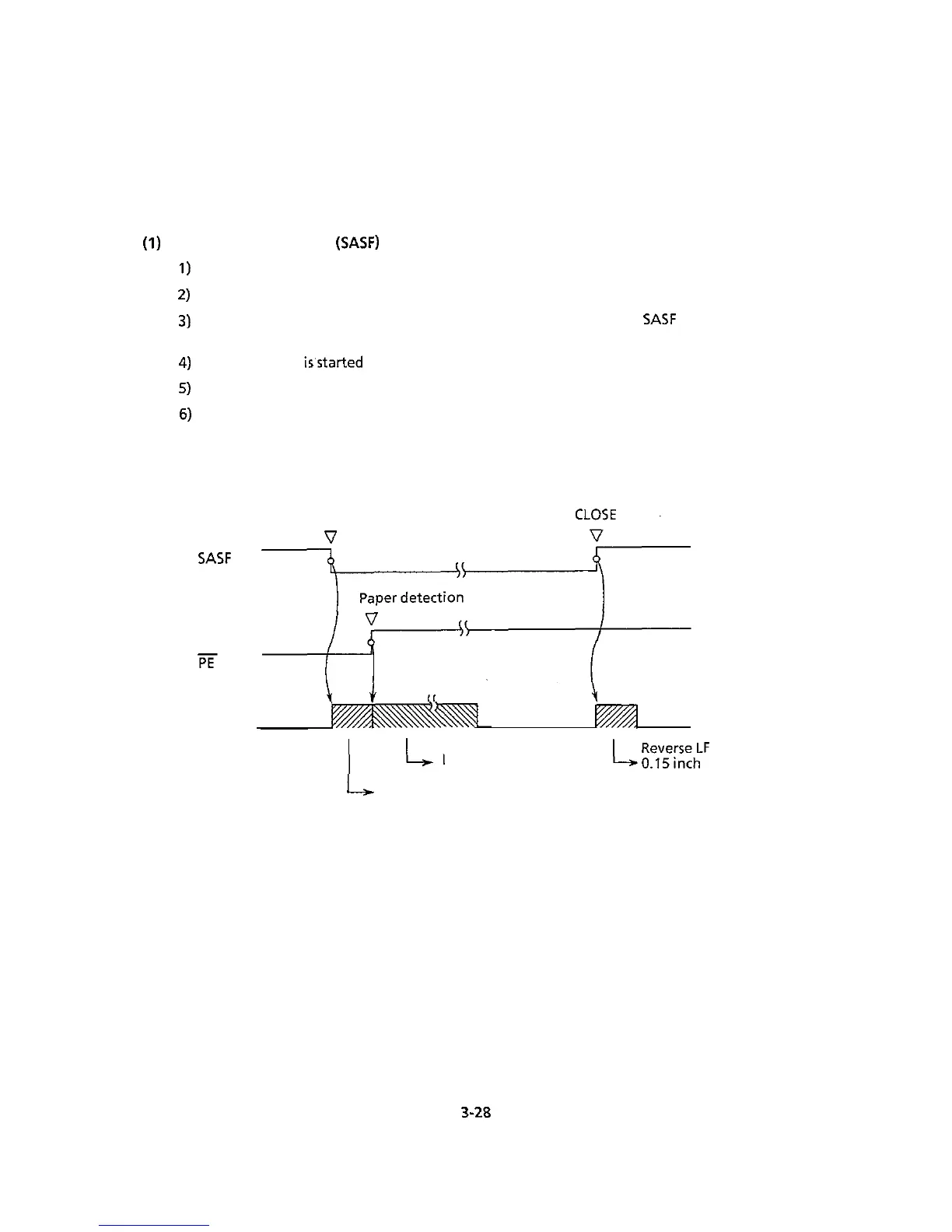

5A5F
Bail arm
OPEN
Bail arm
LF motion
LF of about 2.31 inches
T
r?e,v;[z;F
of about
L
Performs a LF until paper end
3-28
