Omni OMNI-624 User Manual

2-1
SECTION 2
System Wiring and Hookup
•••••••••••••••••••••••••••••••••••••••••••

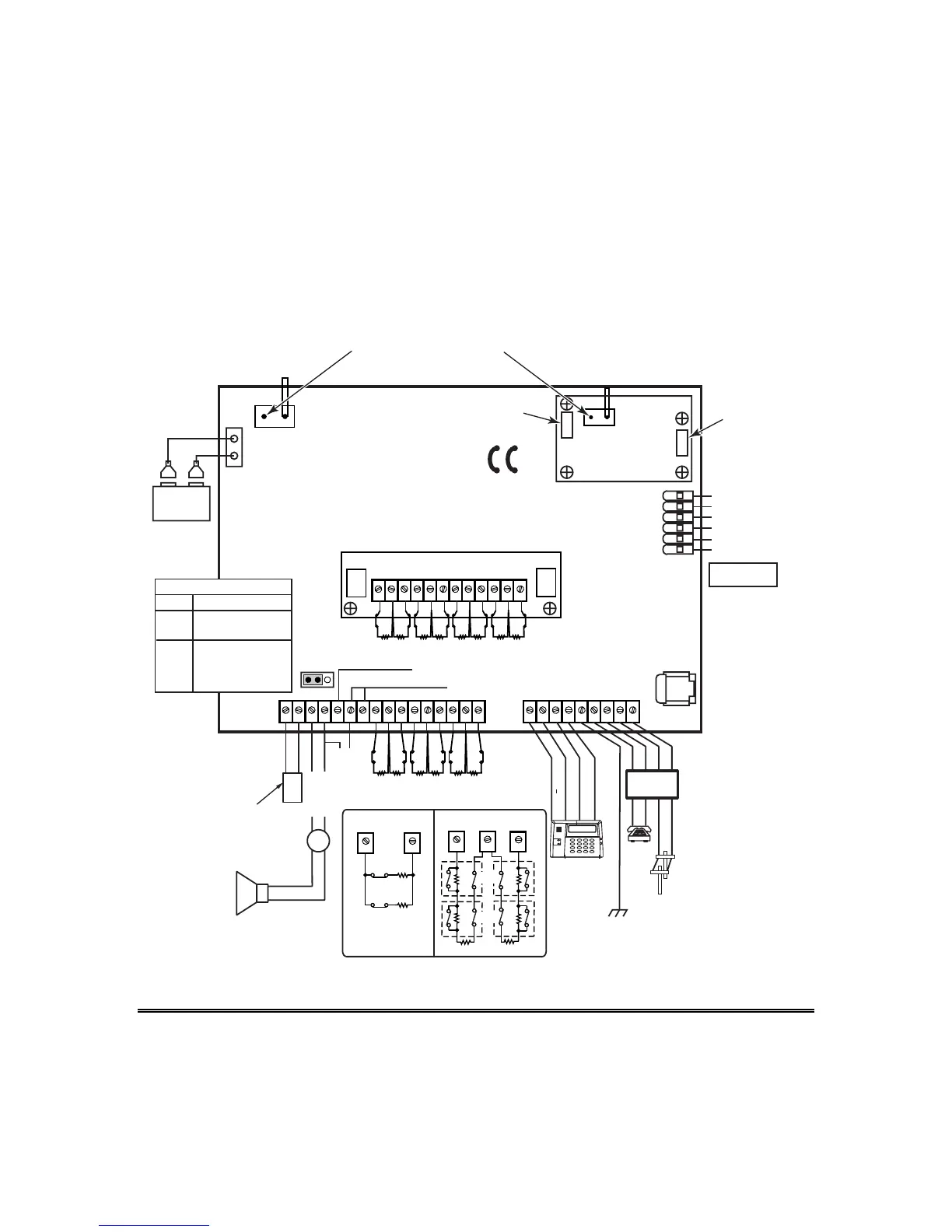

System Wiring Diagram
OMNI624-SOC-V1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 20 21 22 23 24 25 26 27 28
CONNECT GROUNDING LUGS TO LEFT-HAND TERMINALS
DIRECT PLUG-IN
(Wireless Zones)
ANTENNA 2
ZR-401/ZR-402EU/OMNI-RF
RF RECEIVER
(optional)
RECEIVER
INTERNAL
CONNECTIONS
BELL SUPV
JP4
TRANSFORMER
16.5 VAC, 25VA
(CONNECT TO
24 HR. SOURCE)
++
+
-
-
BELL
OR
SELF-CONTAINED
SIREN
2.2k
ZONE
1
2.2k
ZONE
2
2.2k
ZONE
3
2.2k
ZONE
4
2.2k
ZONE
5
2.2k
ZONE
6
BLACK ( ) YELLOW (DATA IN)
GREEN (DATA OUT)
RED (+)
12V, 4-6AH
BATTERY
MODEL 467
(4AH)
BLACK
RED
+
_
ANTENNA 1
JP1 JP2
29 30 31 32 33 34 35 36 37 38 39 40
P2 P3
2.2k
ZONE
7
2.2k
ZONE
8
2.2k
ZONE
9
2.2k
ZONE
10
2.2k
ZONE
11
2.2k
ZONE
12
2.2k
ZONE
13
2.2k
ZONE
14
TRIGGERS
+VBELL
GROUND
TRIGGER 2
TRIGGER 3 (OR CLOCK) *
TRIGGER 4 (OR DATA) *
TRIGGER 1
OMNI-EXP 8
HARDWIRE ZONE EXPANDER
(optional)
* IF XL4705 RELAY
MODULES USED.
MODEL 368 CORD
TO RJ31X OR
CA38A JACK
TELCO
HOME
RED GREEN
GRAY
BROWN
TO PREVENT RISK OF ELECTRICAL
SHOCK, DE-ENERGIZE THE SYSTEM
CONTROL UNIT AND DISCONNECT THE
TELEPHONE LINES BEFORE SERVICING
THIS UNIT.
WARNING
P3
P2
PROGRAMMING
DEFAULT JUMPERS
EXT. SIREN SUPERVISION INPUT
OPTIONAL
TRIGGER CABLE
XL4612TC
USE WITH
XK108 OR
OMNI-LCD,
OMNI-KP,
AND XK108L
TYPICAL DOUBLE
BALANCED ZONES
TYPICAL CONNECTION
FOR ZONE DOUBLING
JP4 JUMPER
PINS
APPLICATION
1 & 2
2 & 3
STANDARD BELL
SUPERVISION
EXTERNAL SIREN
DRIVER SUPERVISION
(USE TERM. 5 FOR
SVSN. INPUT)
89
7.5k
ZONE 2
3.3k
ZONE 1
2.2k
2.2k
2.2k
2.2k
2.2k
2.2k
89
10
TAMPER
CONTACTS
TAMPER
CONTACTS
TELCO CONNECTOR
(APPLICABLE ONLY
IN AUSTRALIA)
FIRE &
BURGLARY
ALARM
OUTPUT
(11.5 -
13.1VDC,
1A MAX)
STANDARD EOLR
SMOKE POWER (6+) & (7-)
12VDC REG., 50mA MAX
GROUND LUG
NOTES:
1. FOR UL INSTALLATIONS, USE TWO 4AH
BATTERIES CONNECTED IN PARALLEL
FOR MINIMUM STANDBY OF 24 HOURS.
THE TWO BATTERY CABLE (P/N F344)
IS OPTIONAL AND NOT INCLUDED WITH
THE PANEL.
2. 180 mA MAX, AUX. POWER (INCLUDING
KEYPADS CONNECTED TO TERMINALS
20-23) FOR UL INSTALLATIONS.
3. 650 mA MAX, ALARM OUTPUT FOR UL
INSTALLATIONS.
4. FOR CE COMPLIANCE, WIRE THE OMNI-
EXP 8 HARDWIRE ZONE EXPANDER AS
DESCRIBED IN THE OMNI-EXP 8 INSTAL-
LATION AND SETUP GUIDE N9953V1 OR
HIGHER.
AUX PWR
(500mA MAX)
