Omron 3G3AX-MX2-ECT User Manual

2 - 7
2 Starting a Sample System
EtherCAT Communication Unit USER’S MANUAL (3G3AX-MX2-ECT)
2-1 Part Names and Settings for the
EtherCAT Communication Unit
2
2-1-6 Connection between Communications Cables and Connectors

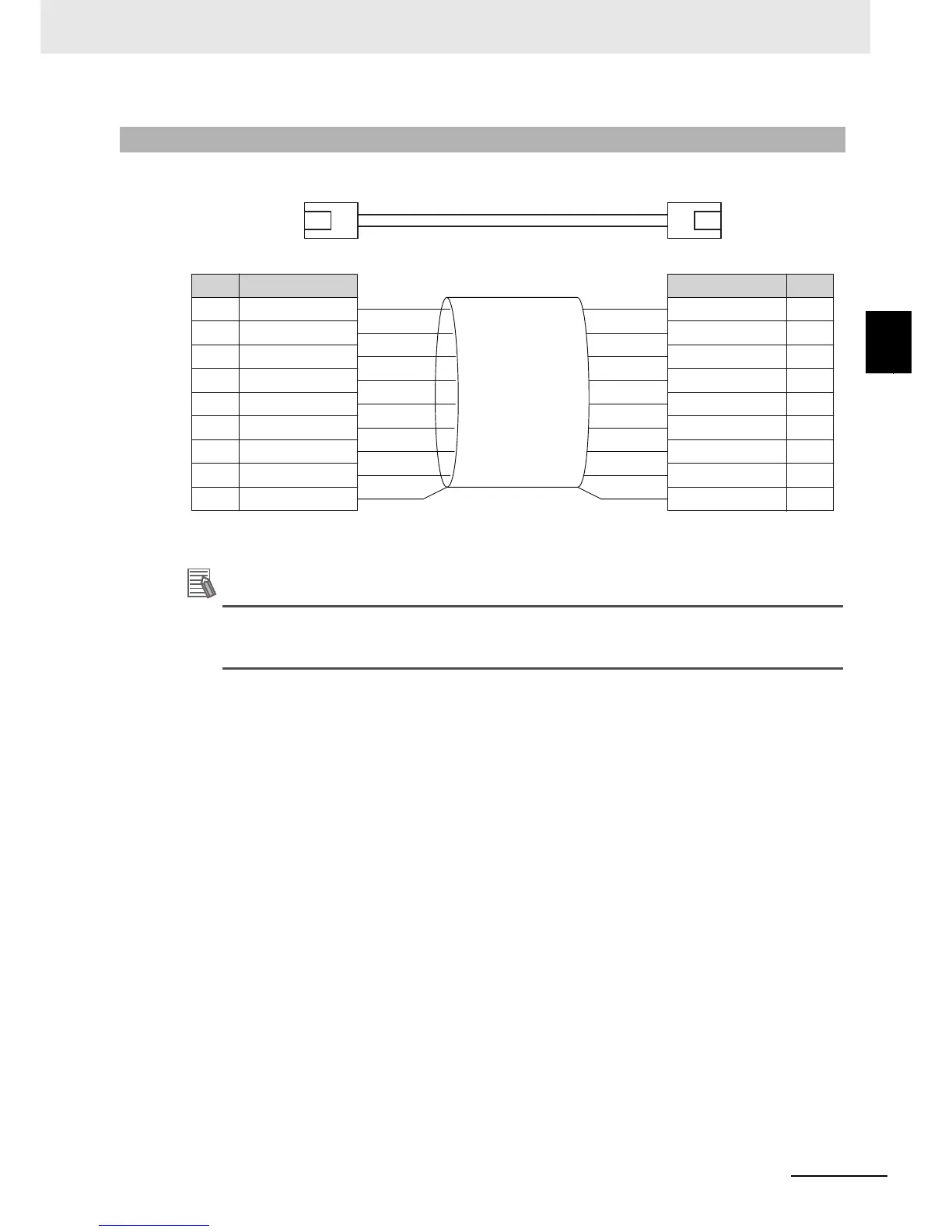

Connect the communications cable and the connector by wiring them straight as shown below.
* Connect both ends of cable shielded wires to the connector hoods.
Additional Information
There are 2 types of wiring standards for Ethernet cables: "T568A" and "T568B."
The figure above shows a wiring method conforming to the standard "T568A," but a wiring
method conforming to the standard "T568B" can also be used.
2-1-6 Connection between Communications Cables and Connectors
White-Green
Green
White-Orange
Blue
White-Blue
Orange
White-Brown
Brown
Connector
hood
1
2
3
4
5
6
7
8
Shielded cable*
Wire color
Pin No.
White-Green
Green
White-Orange
Blue
White-Blue
Orange
White-Brown
Brown
Connector
hood
1
2
3
4
5
6
7
8
Shielded cable*
Wire color
Pin No.
