Omron 3G3RX-V1 Series User Manual

7．Connection Procedure
7.5. Setting Up the Network
Set up remote I/O communications of DeviceNet.
7.5.1. Starting the CX-Integrator and Opening the Project File
Start the CX-Integrator and open the CX-Integrator project file.

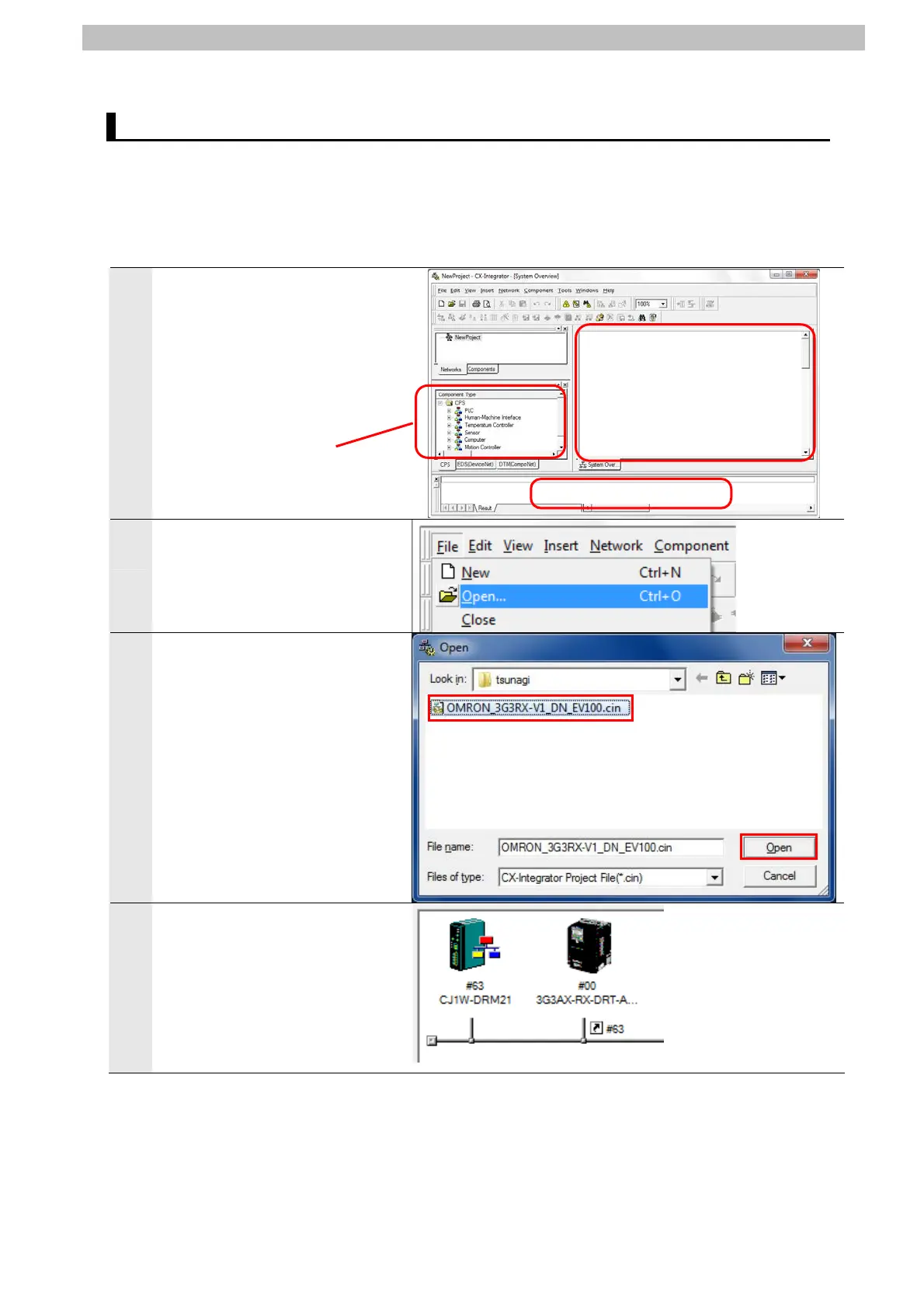

1
Start the CX-Integrator.
*If the Component List Window
is not displayed, select
Windows - Component List
Window from the View Menu.
2
Select Open from the File Menu.
3
The Open Dialog Box is
displayed. Select
OMRON_3G3RX-V1_DN_EV10
0.cin (CX-Integrator project file)
and click the Open Button.
4
The following devices are
displayed in the Network
Configuration Pane as shown on
the right figure.
#63: CJ1W-DRM21
#00: 3G3AX-RX-DRT- A2055
Component List Window
Network Configuration Window
Output window
29
