5．Applicable Products and Support Software

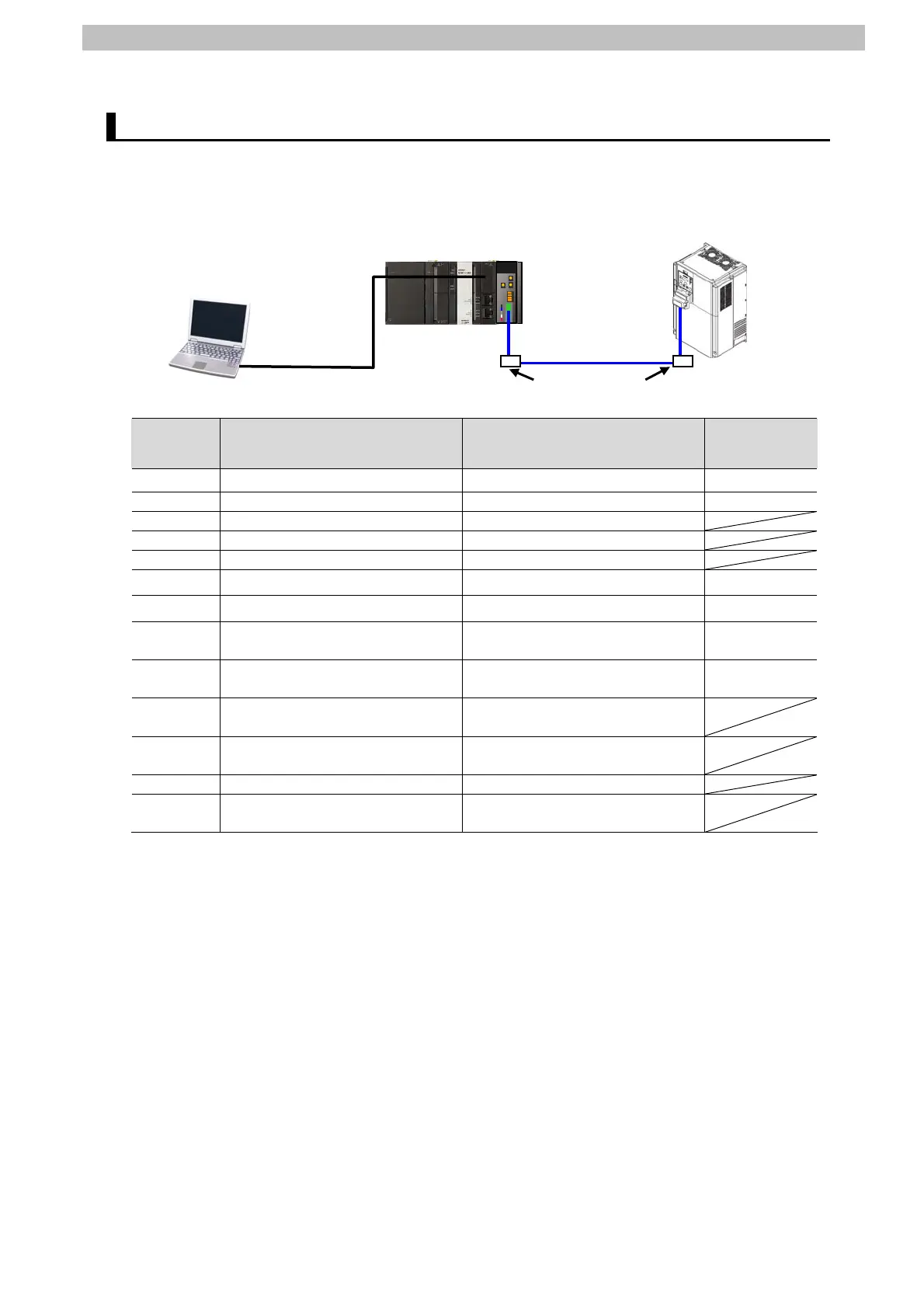

5.2. Device Configuration
The hardware components to reproduce the connection procedure of this document are as
follows:
DeviceNet cable
3G3RX-A2055-V1 +
3G3AX-RX-DRT-E
NJ501-1500+
CJ1W-DRM21
Personal computer
(Sysmac Studio
installed,
OS: Windows7)
USB cable
T-
branch Tap (DCN1-1C)
Manufact
urer
Name Model Version
OMRON DeviceNet Unit (Master) CJ1W-DRM21 Ver.1.1
OMRON CPU Unit NJ501-1500 Ver.1.03
OMRON Power Supply Unit NJ-PA3001
OMRON DeviceNet cable DCA1-5C10
OMRON T-branch Tap DCN1-1C
OMRON Sysmac Studio
SYSMAC-SE2[][][]
Ver.1.04
OMRON CX-Integrator
(Included with Sysmac Studio)
Ver.2.55
OMRON Sysmac Studio project file OMRON_3G3RX-V1_DN_EV1
00.SMC
Ver.1.00
OMRON CX-Integrator project file OMRON_3G3RX-V1_DN_EV1
00.cin
Ver.1.00
- Personal computer
(OS: Windows 7)
-
- USB cable
(USB 2.0 type B connector)
-
OMRON Inverter 3G3RX -A2055-V1
OMRON DeviceNet Communications
Unit
3G3AX-RX-DRT-E
6
