10．Appendix 2 Setting Procedure without the Configuration Files
10. Appendix 2 Setting Procedure without the Configuration Files
This section describes the procedure for setting up the Controller using the software without
using the configuration files (Procedure for setting the parameters from the beginning).
You can also refer to this section when you change the parameters of the configuration files.
Personal computer
44
Destination
device
Controller
10.1. Overview of Setting Procedure without the Configuration Files

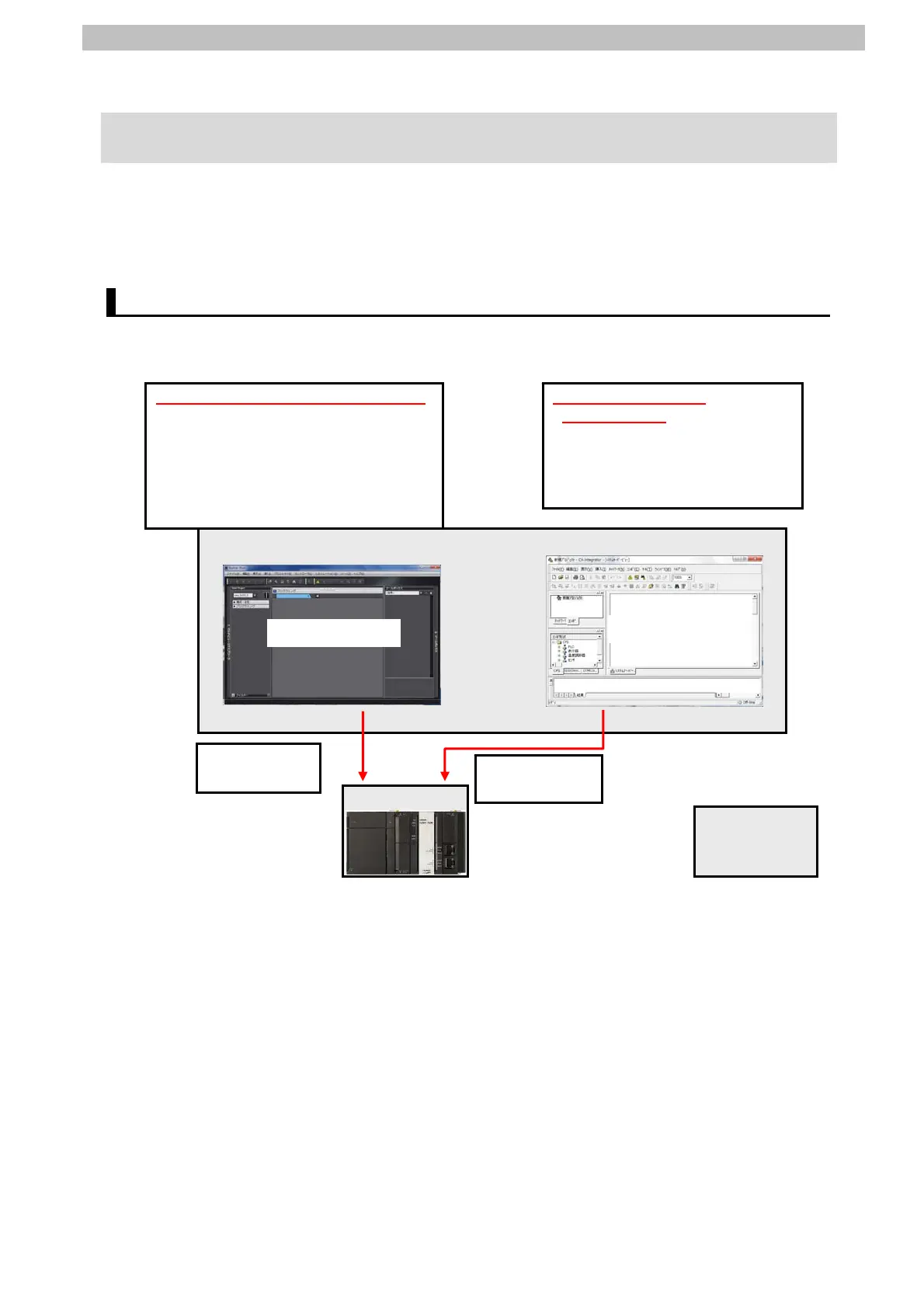

The following figure shows the relationship of processes to perform remote I/O
communications using the "procedure for setting parameters from the beginning".
Settings made with Sysmac Studio
•Setting parameters (DeviceNet
Unit)
•Setting global variables (name and
AT, etc)
•Building
•Settings in the Watch Tab Page
Settings made with
CX-Integrator
•Create the network
configuration
•Setting device (creating scan
list)
CX-Integrator
Transferring
project data
Sysmac Studio
Transferring
scan list
