Omron 3G3RX-V1 Series User Manual

10．Appendix 2 Setting Procedure without the Configuration Files
10.4. Setting Up the Network by CX-Integrator
Set up remote I/O communications of the DeviceNet by CX-Integrator.
10.4.1. Starting CX-Integrator and Configuring the Network
Start the CX-Integrator and configure the network and device offline.
Precautions for Correct Use
Please confirm that the DeviceNet cable is connected before proceeding to the following
procedures.
If it is not connected, turn OFF the power to the devices, and then connect the DeviceNet
cable.

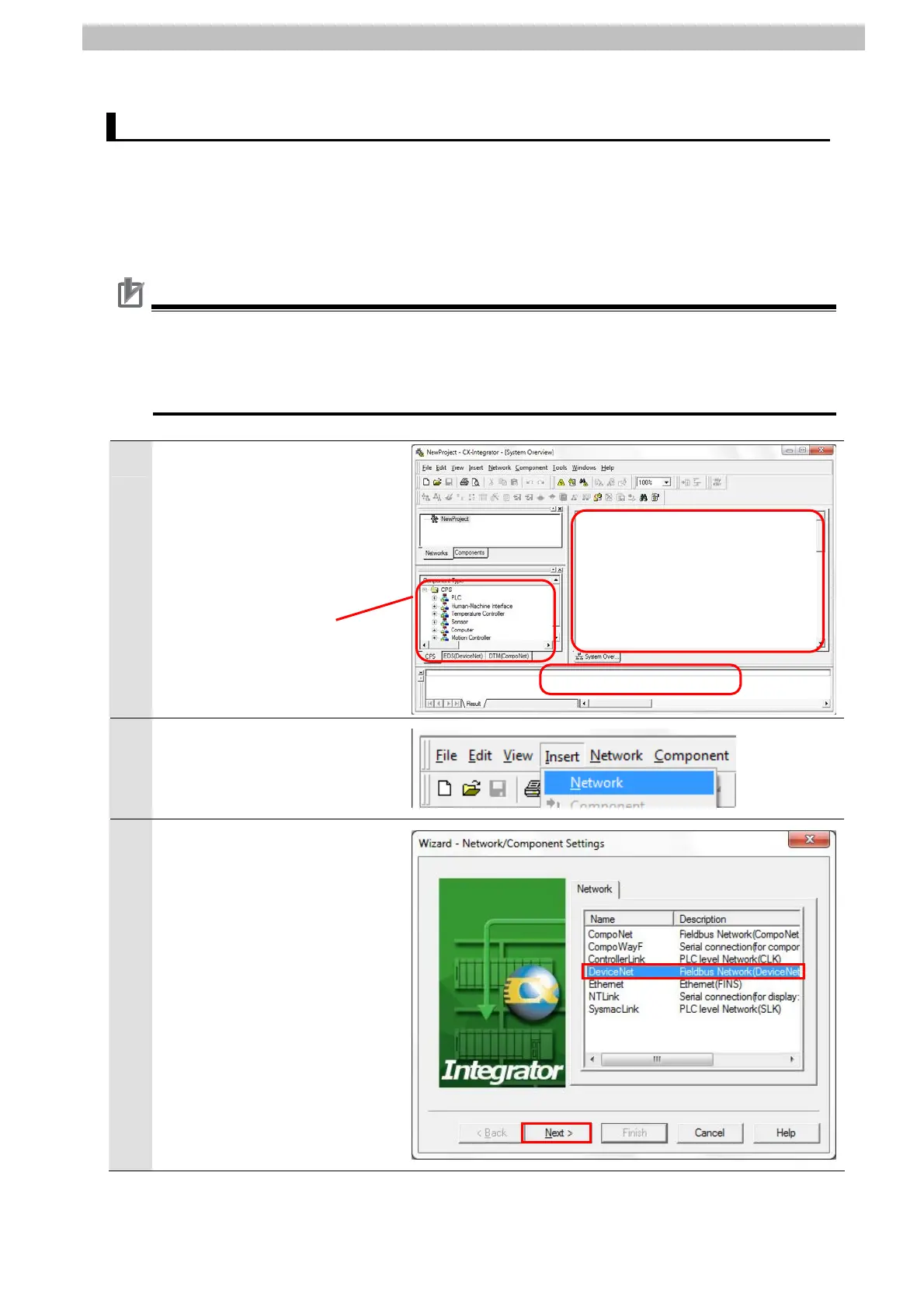

1
Start the CX-Integrator.
*If the Component List Window
is not displayed, select
Windows - Component List
Window from the View Menu.
2
Select Network from the Insert
Menu of the CX-Integrator.
3
Select DeviceNet and click the
Next Button.
Component List Window
Output window
Network Configuration Window
56
