Omron BU1002SW User Manual

20
2. Installation and Connection

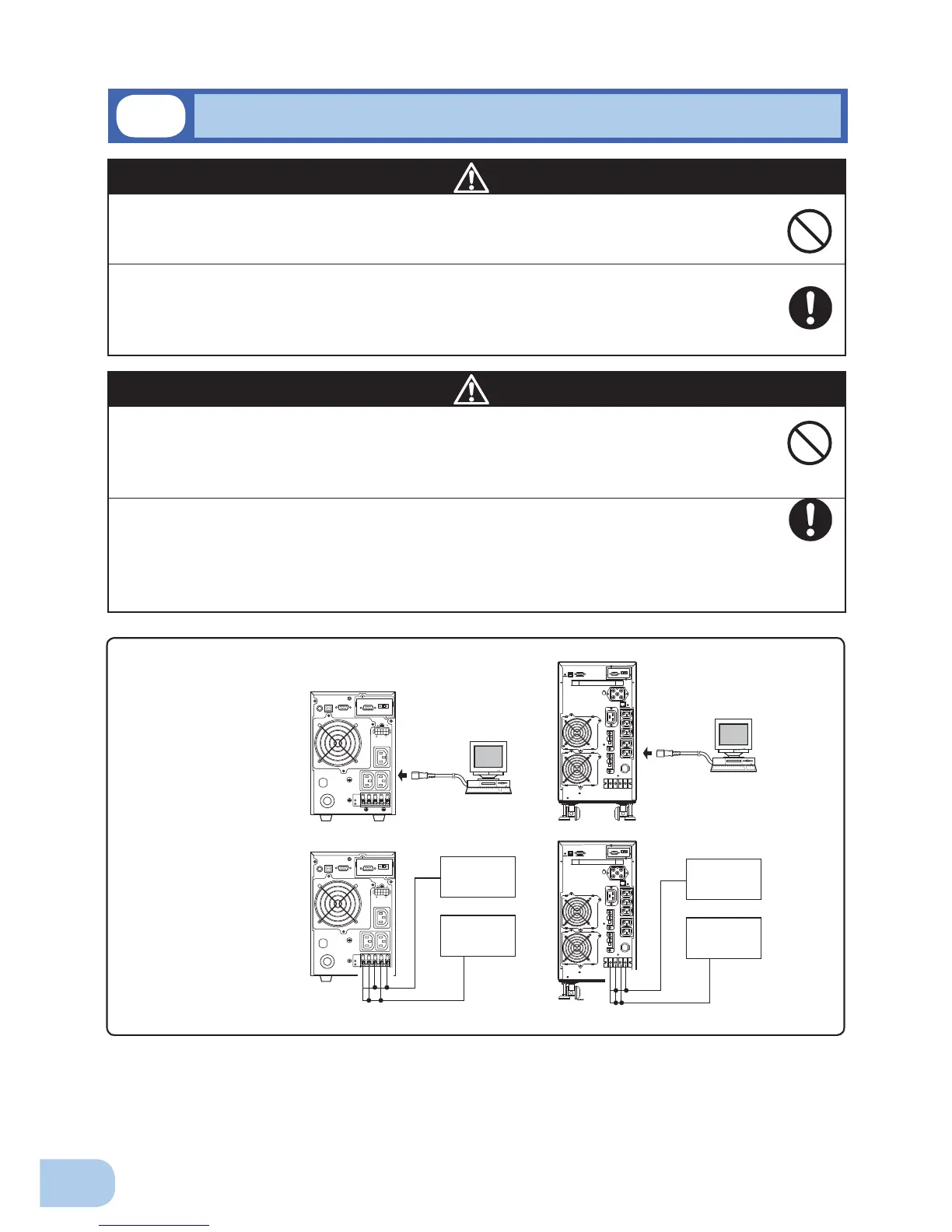

< Example of
connection 1 >
< Example of
connection 2 >
Connected
device (1)
Connected
device (2)
Connected
device (1)
Connected
device (2)
BU1002SW
BU3002SW
To the terminal
block for output
To the terminal
block for output
To power supply
output receptacle
PC
To power supply
output receptacle
PC
●
Group control of power supply output
This function can be used with the UPS monitoring software included with the UPS.
The output receptacles of the BU1002SW are separated into 3 groups: A, B, and C.
1. Power supply output group A
Output begins at the same time as startup.
Do not connect devices with rated voltage of 200 to 240 VAC or higher.
●
The rated output voltage of this device is 200 to 240 VAC.
●
Overcurrent may damage the connected devices.
When in use, make sure the output terminal block cover is attached.
Do not turn ON the power switch when it is detached.
●
Voltage is applied to the output terminal block when the power switch is ON, which can result
in electric shock.
Ne pas brancher de périphériques d’une tension nominale de 200 à 240
VAC ou plus.
●
La tension de sortie nominale de cet appareil est de 200 à 240 VAC.
●
La surtension peut endommager les équipements connectés.
Lors de l’utilisation, s’assurer que le couvercle du bornier de sortie est
bien fi xé.
Ne pas allumer l’interrupteur d’alimentation lorsqu’il est détaché.
●
Une tension est appliquée au bornier de sortie lorsque l’interrupteur d’alimentation est allumé,
ce qui peut provoquer un choc électrique.
Caution
Attention
2-3 Connecting the equipment
