7. Using the UPS monitoring software and contact signal

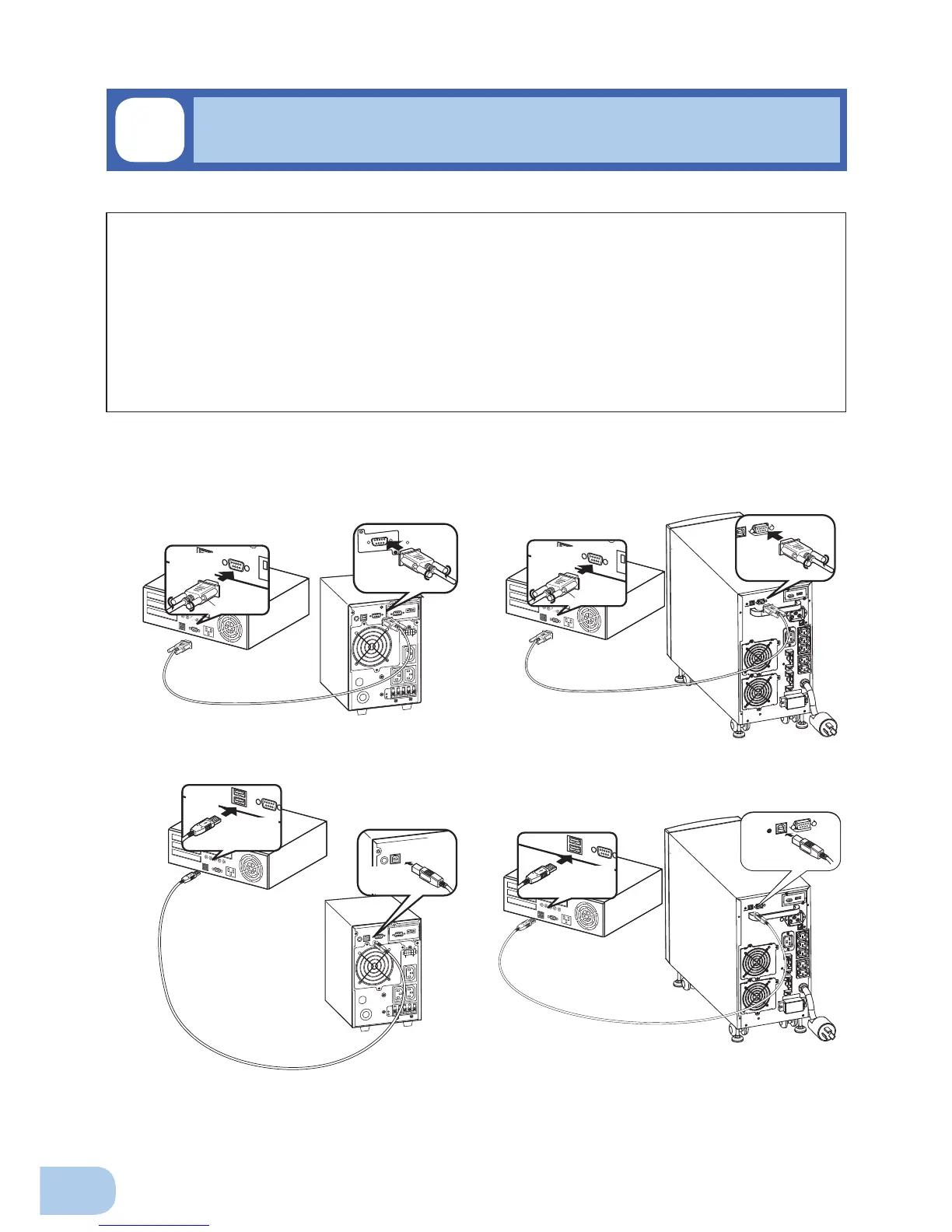

1. Connect the UPS to a computer.
Cable: Included connection cable (RS-232C or USB)
* The RS232C and USB cannot be used at the same time.
BU1002SW
信号カード
増設
RS232C
Connector
Connect to
RS-232C
terminal
Connect to RS-232C
port on PC
Included connection cable(RS-232C)
Connector
Connect to
RS-232C
connector on UPS
<RS-232C>
<USB>
BU1002SW
Connector
Connect to
USB
terminal
Connect to USB
port on PC
Included connection cable(USB)
Connector
Connect to
USB Port
on UPS
Connector
Connect to
USB
terminal
Connect to USB
port on PC
Included connection cable(USB)
Connector
Connect to
USB Port
on UPS
BU3002SW
BU3002SW
Connector
Connect to
RS-232C
terminal
Connect to RS-232C
port on PC
Included connection cable(RS-232C)
Connector
Connect to
RS-232C
connector on UPS
●
When using PowerAct Pro “UPS monitoring software for Windows/Linux”
"PowerAct Pro" UPS monitoring software
The included "PowerAct Pro" UPS monitoring software allows you to automatically save fi les and perform
shutdown processing of your PC when a power failure occurs.(It is possible to shut down multiple com-
puters on the network.)
Also, you can perform desired operation by setting the automatic start/stop of the UPS based on the
schedule setting.
* The time between the occurrence of a power failure and the shutdown of your PC must be within the
backup time measured in "5-1 How to measure backup time" on page 49.
For more information, refer to the Instruction Manual and online help of the UPS monitoring software.
7-1
When using the included UPS monitoring
software to perform auto shutdown
