126
Setting Tag Data Links Section 6-2
CS1W-EIP21, CJ1W-EIP21, and CJ2H-CPU@@-EIP
CJ2M-CPU3@
(2) When mounting the CJ1W-EIP21 to a CJ2 CPU Unit, select CJ1W-EIP21
(CJ2) from the Hardware List.

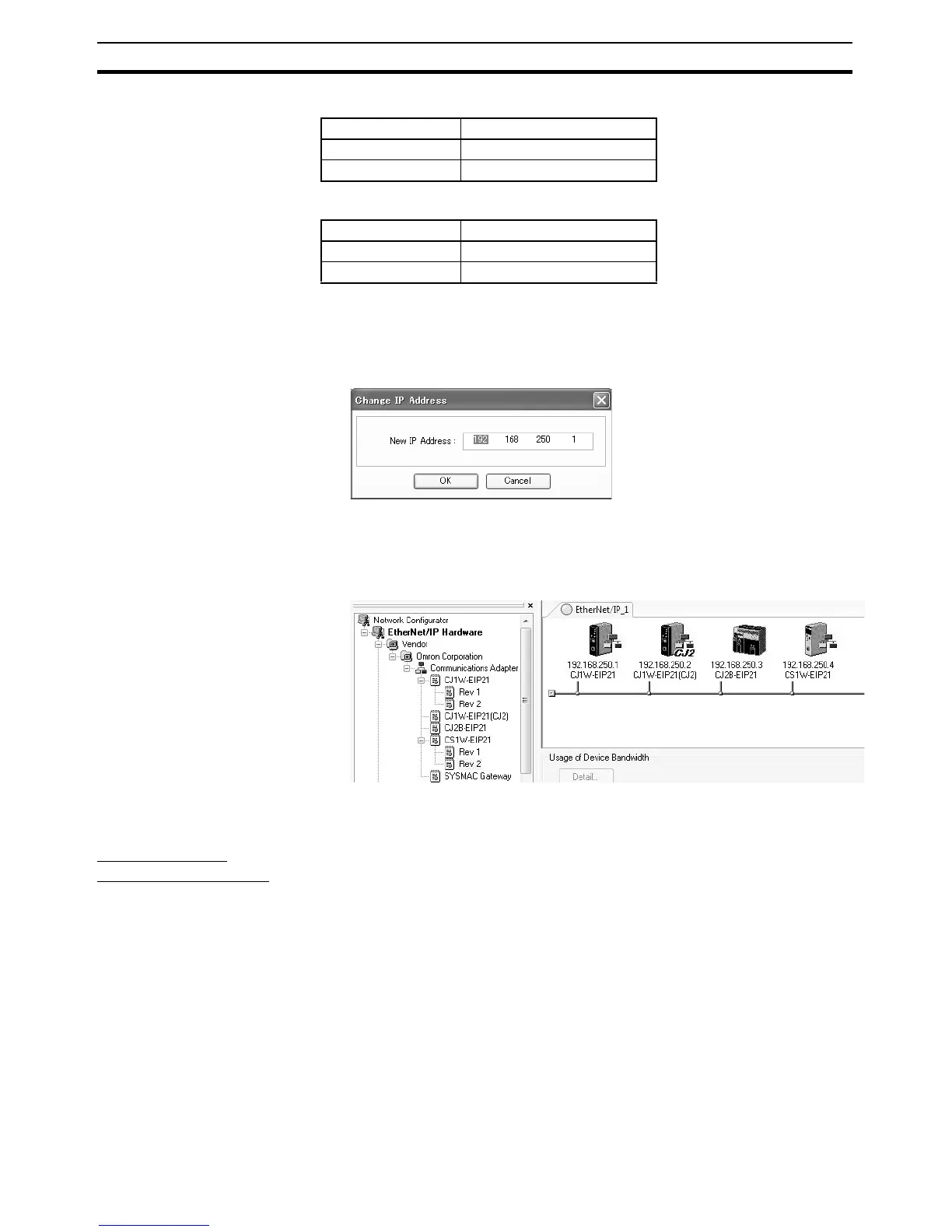

2. Click the right mouse button over the registered device’s icon to display the
pop-up menu, and select Change Node Address.
3. Set the IP address to match the node address (IP address) actually being
used in the device.
4. Repeat steps 1 to 3, and register all of the devices participating in the tag
data links.
6-2-4 Creating Tags and Tag Sets
Specifying I/O
Memory Addresses
The tag sets and set member tags required to create connections for a regis-
tered EtherNet/IP Unit must be created. The I/O memory addresses or net-
work symbols that are used in the control programs can be set for the tags.
(Using network symbols is supported only by the CJ2H-CPU6@-EIP21 and
CJ2M-CPU3@.) This section first describes the basic procedure for creating
tags and tag sets for using the Network Configurator's device parameter edit-
ing function.
1. Creating Tags and Tag Sets Using the Network Configurator's Device Pa-
rameter Editing Function
Next, the following two procedures, which can be used to effectively use net-
work symbols in tags, are described.
2. Importing Network Symbols Created with the CX-Programmer to the Net-
work Configurator
3. Importing Network Symbols That Were Registered to Tags with the Net-
work Configurator to the CX-Programmer
Unit version CIP revision
Ver. 1.0 Revision 1.01
Ver. 2.0 Revision 2.01 or 2.02
Unit version CIP revision
Ver. 2.0 Revision 2.01
Ver. 2.1 Revision 2.02
