Appendices
A-22
NJ-series CPU Unit Hardware User’s Manual (W500)

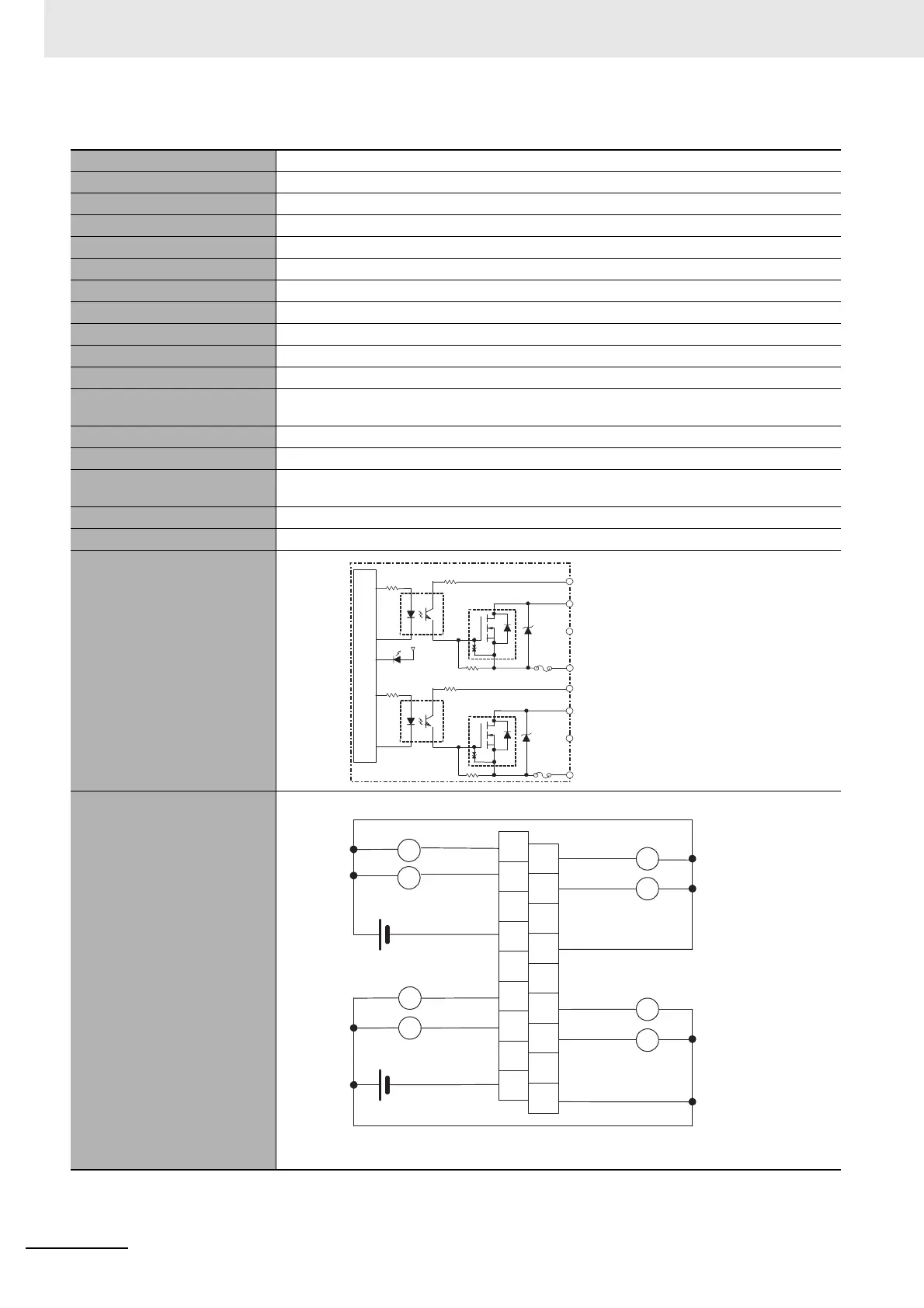

 CJ1W-OD201 Transistor Output Unit (8 Points)
* Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams. They are not printed
on the Units.
Name 8-point Transistor Output Unit with Terminal Block (Sinking Outputs)
Model CJ1W-OD201
Rated Voltage 12 to 24 VDC
Operating Load Voltage Range 10.2 to 26.4 VDC
Maximum Load Current 2.0 A/point, 8.0 A/Unit
Maximum Inrush Current 10 A/point, 10 ms max.
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 0.5 ms max.
OFF Response Time 1.0 ms max.
Insulation Resistance 20 M between the external terminals and the GR terminal (100 VDC)
Dielectric Strength
1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of
10 mA max.
Number of Circuits 8 (4 points/common, 2 circuits)
Internal Current Consumption 90 mA max.
Fuse
6.3 A (1/common, 2 used)
The fuse cannot be replaced by the user.
External Power Supply 12 to 24 VDC, 10 mA min.
Weight 110 g max.
Circuit Configuration
External connection and termi-
nal-device variable diagram
• When wiring, pay careful attention to the polarity of the external power supply. The load may oper-
ate incorrectly if the polarity is reversed.
Internal circuits
Output indicator
Fuse
Fuse
to
to
Signal name
Jxx_Ch1_Out00
+V
Jxx_Ch1_Out03
COM0
Jxx_Ch1_Out04
+V
Jxx_Ch1_Out07
COM1
12 to 24 VDC
12 to 24 VDC
Signal
name
Signal
name
Connec-
tor pin
*
B0
B1
B2
B3
B4
B5
B6
B7
B8
A0
A1
A2
A3
A4
A5
A6
A7
A8
L
L
L
L
L
L
L
L
Jxx_Ch1_Out00
Jxx_Ch1_Out02
COM0
NC
NC
Jxx_Ch1_Out04
Jxx_Ch1_Out06
NC
Jxx_Ch1_Out01
Jxx_Ch1_Out03
+V
NC
NC
NC
Jxx_Ch1_Out05
Jxx_Ch1_Out07
COM1
+V
