3-23
3 Configuration Units
NJ-series CPU Unit Hardware User’s Manual (W500)
3-4 CJ-series Basic I/O Units
3
3-4-2 Part Names and Functions
 Basic Mixed I/O Units
 Eight/sixteen-point Units (18-pin Terminal Blocks)
Note The CJ1W-OD202, CJ1W-OD204, and CJ1W-OD212 also have an ERR indicator for the load short-circuit
alarm.
Type of
Unit
Name Specifications Model Page
Mixed I/O
Units
24-VDC
Inputs/Transis-
tor Output Units
Sinking
output
Fujitsu connector
Inputs: 24 VDC
Outputs: 12 to 24 VDC, 0.5 A
16 inputs
16 outputs
CJ1W-MD231 A-41
MIL connector
Inputs: 24 VDC
Outputs: 12 to 24 VDC, 0.5 A
CJ1W-MD233 A-43
Fujitsu connector
Inputs: 24 VDC
Outputs: 12 to 24 VDC, 0.3 A
32 inputs
32 outputs
CJ1W-MD261 A-44
MIL connector
Inputs: 24 VDC
Outputs: 12 to 24 VDC, 0.3 A
CJ1W-MD263 A-46
Sourcing
output
MIL connector
Input: 24 VDC
Outputs: 24 VDC, 0.5 A, load short-cir-
cuit protection
16 inputs
16 outputs
CJ1W-MD232 A-48
TTL I/O Units Inputs: 5 VDC
Outputs: 5 VDC, 35 mA
32 inputs
32 outputs
CJ1W-MD563 A-50

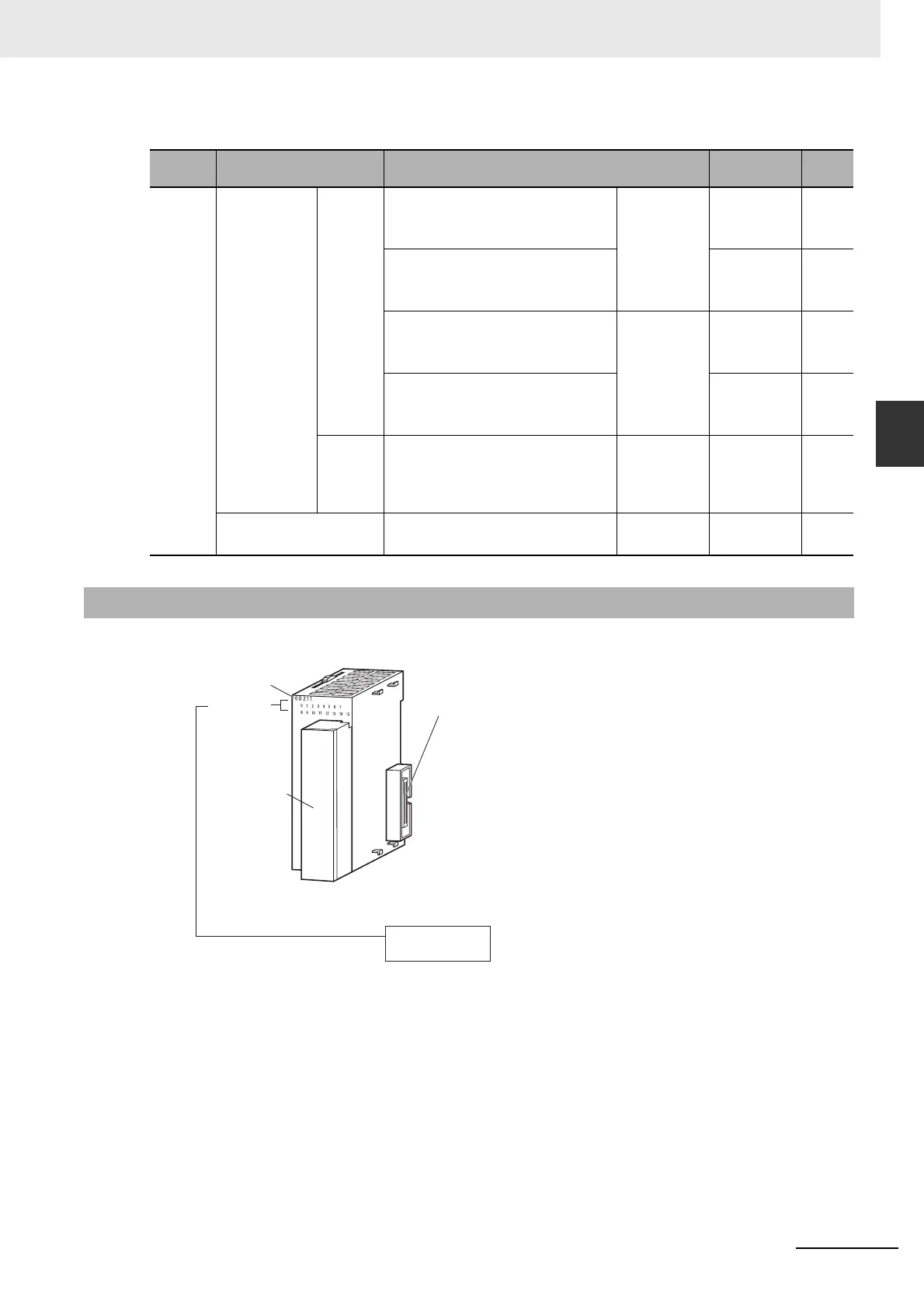

3-4-2 Part Names and Functions
ERR
0 1 2 3 4 5 6 7
8 9 10 11 12 13 14 15
Connector
Connect to the connector on the next Unit.
I/O indicators
Model number label
Terminal block for
I/O wiring, 18-pin × 1
