Omron NJ501-1400 User Manual

Appendices
A-50
NJ-series CPU Unit Hardware User’s Manual (W500)

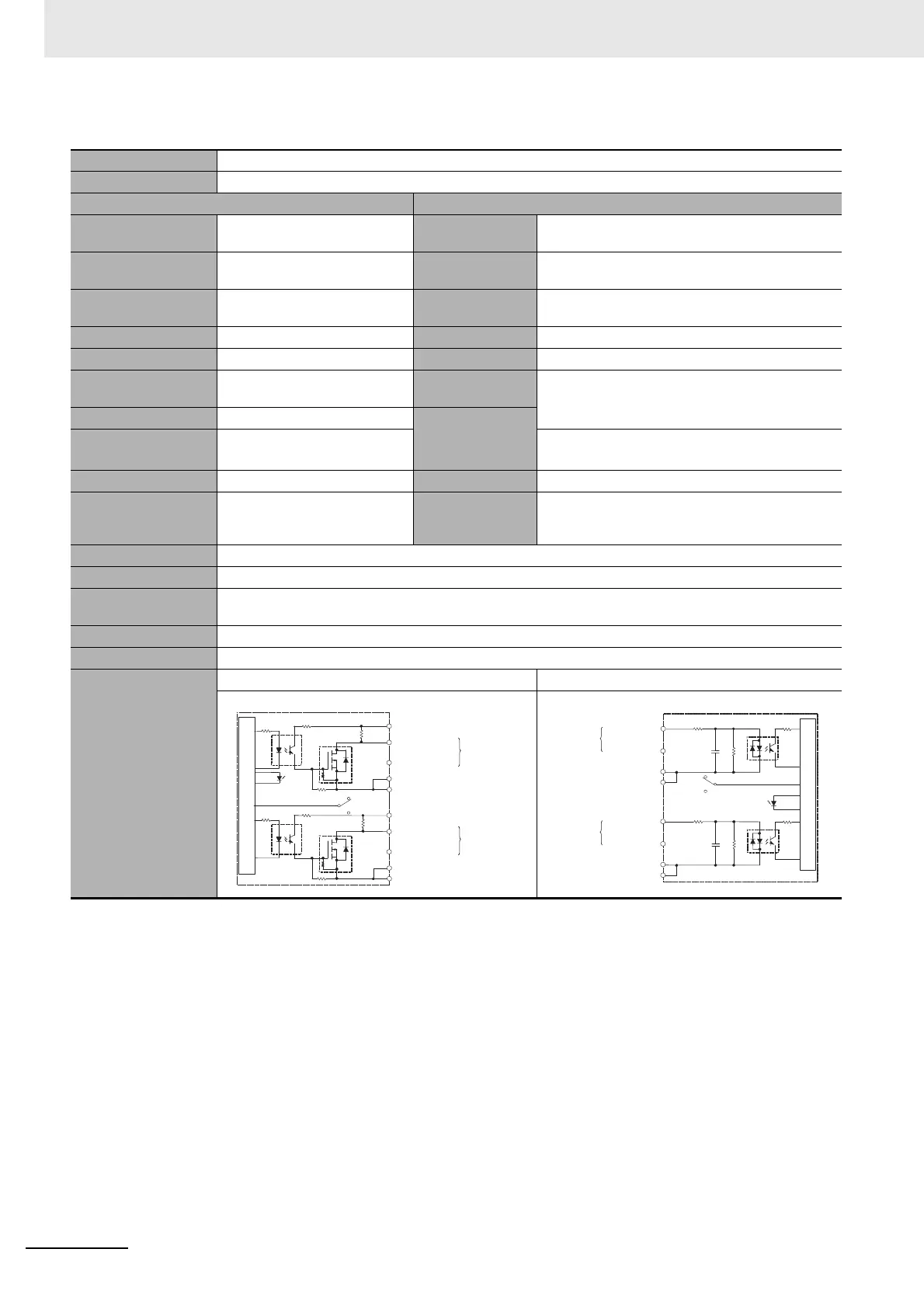

 CJ1W-MD563 TTL I/O Unit (32 Inputs/32 Outputs)
Name 32-point Input /32-point Output TTL I/O Unit with MIL Connectors
Model CJ1W-MD563
Output section (CN1) Input section (CN2)
Rated Voltage
5 VDC10%
Rated Input Volt-
age
5 VDC10%
Operating Load Volt-
age Range
4.5 to 5.5 VDC
Input Impedance
1.1 k
Maximum Load Cur-
rent
35 mA/point, 560 mA/common,
1.12 A/Unit
Input Current
Approx. 3.5 mA (at 5 VDC)
Leakage Current 0.1 mA max. ON Voltage 3.0 VDC min.
Residual Voltage 0.4 V max. OFF Voltage 1.0 VDC max.
ON Response Time
0.2 ms max.
ON Response
Time
8.0 ms max. (Can be set to between 0 and 32 ms in
the Unit Information settings.)
*
OFF Response Time 0.3 ms max.
OFF Response
Time
No. of Circuits
32 points (16 points/common, 2
circuits)
8.0 ms max. (Can be set to between 0 and 32 ms in
the Unit Information settings.)
*
Fuse None No. of Circuits 32 points (16 points/common, 2 circuits)
External Power Supply
5 VDC10%, 40 mA min. (1.2 mA
 No. of ON points)
Number of Simul-
taneously ON
Points
100% (16 points/common)
Insulation Resistance 20 M between the external terminals and the GR terminal (at 100 VDC)
Dielectric Strength 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max.
Internal Current Con-
sumption
5 VDC 190 mA max.
Weight 110 g max.
Accessories None
Circuit Configuration
CN1 (OUT) CN2 (IN)
5.6 k Ω
5.6 k Ω
Output
indicator
Indicator
switch
Internal circuits
to
to
Wd m
Wd m+1
Allocated
CIO word
Signal
name
Jxx_Ch1_Out00
Jxx_Ch1_Out15
Jxx_Ch2_Out00
Jxx_Ch2_Out15
+V
+V
COM1
COM1
to
Indicator switch
Input indicator
Internal circuits
to
1.1 kΩ
2.2 k
Ω
1000 pF
1.1 kΩ
2.2 k
Ω
1000 pF
Wd m+2
Wd m+3
Allocated
CIO word
Signal
name
Jxx_Ch1_In00
Jxx_Ch1_In15
Jxx_Ch2_In00
Jxx_Ch2_In15
COM2
COM3
COM2
COM3
