Appendices
A-30
NJ-series CPU Unit Hardware User’s Manual (W500)

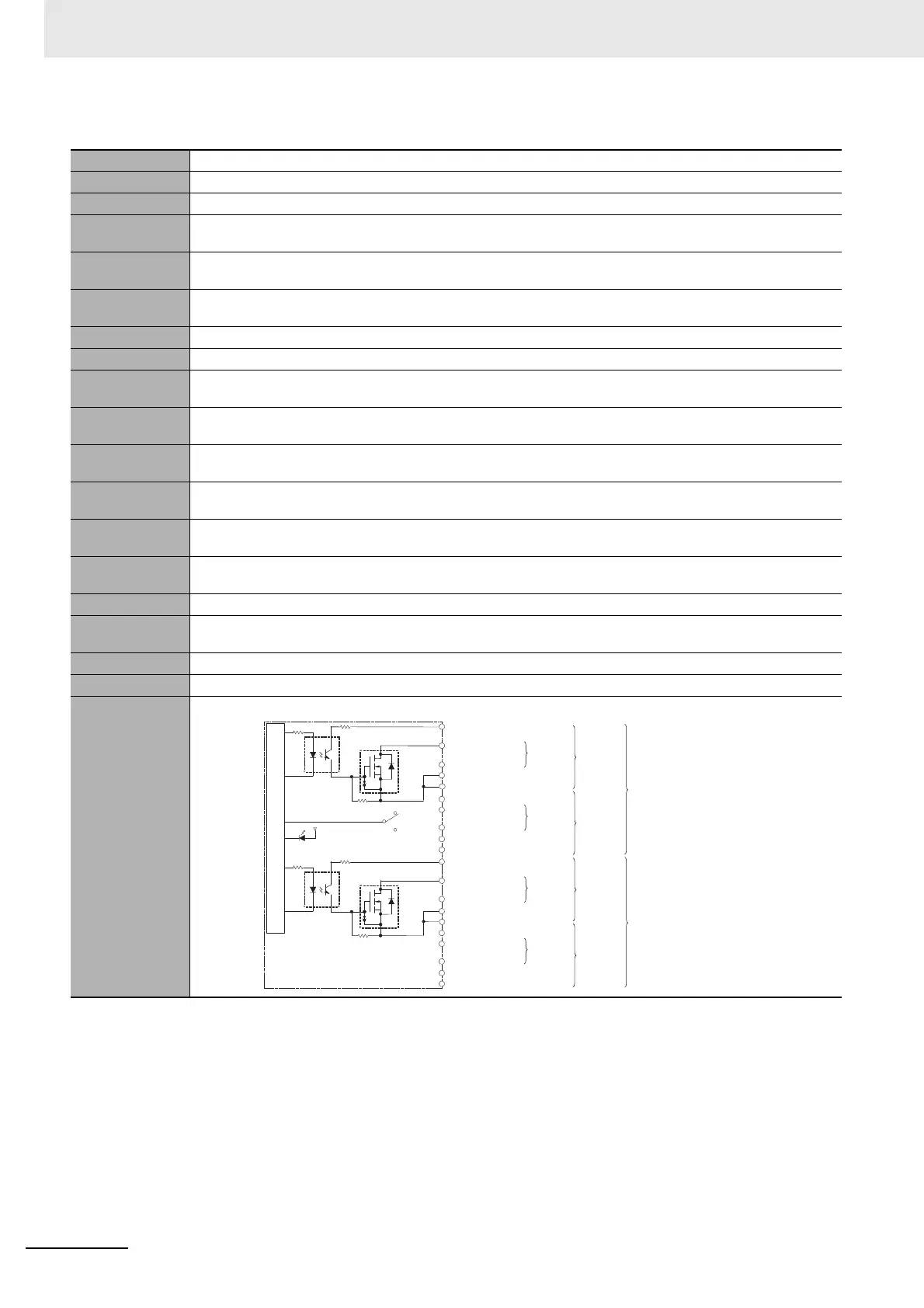

 CJ1W-OD261 Transistor Output Unit (64 Points)
Name 64-point Transistor Output Unit with Fujitsu Connectors (Sinking Outputs)
Model CJ1W-OD261
Rated Voltage 12 to 24 VDC
Operating Load
Voltage Range
10.2 to 26.4 VDC
Maximum Load
Current
0.3 A/point, 1.6 A/common, 6.4 A/Unit
Maximum Inrush
Current
3.0 A/point, 10 ms max.
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response
Time
0.5 ms max.
OFF Response
Time
1.0 ms max.
Insulation Resis-
tance
20 M between the external terminals and the GR terminal (100 VDC)
Dielectric
Strength
1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max.
Number of Cir-
cuits
64 (16 points/common, 4 circuits)
Internal Current
Consumption
5 VDC, 170 mA max.
Fuse None
External Power
Supply
10.2 to 26.4 VDC, 50 mA min.
Weight 110 g max.
Accessories None
Circuit Configura-
tion
Output indicator
to
to
to
to
Wd m
Wd m+1
Wd m+2
Wd m+3
Internal circuits
Allocated
CIO word
Signal name
Connector
row A
Connector
row B
Connector
row A
Connector
row B
Jxx_Ch1_Out00
+V
Jxx_Ch1_Out15
COM0
Jxx_Ch3_Out00
+V
Jxx_Ch3_Out15
COM2
COM0
COM2
+V
Jxx_Ch2_Out00
Jxx_Ch2_Out15
COM1
COM1
+V
Jxx_Ch4_Out00
Jxx_Ch4_Out15
COM3
COM3
CN1
SW
CN2
