1-5
1 Introduction to NJ-series Controllers
NJ-series CPU Unit Hardware User’s Manual (W500)
1-1 The NJ-series Controllers
1
1-1-2 Introduction to the System Configurations
Additional Information
You can connect the Sysmac Studio directly to the Communications Coupler Unit to set up the
Slave Terminal. Refer to the NX-series EtherCAT Coupler Units User’s Manual (Cat. No. W519)
for details.

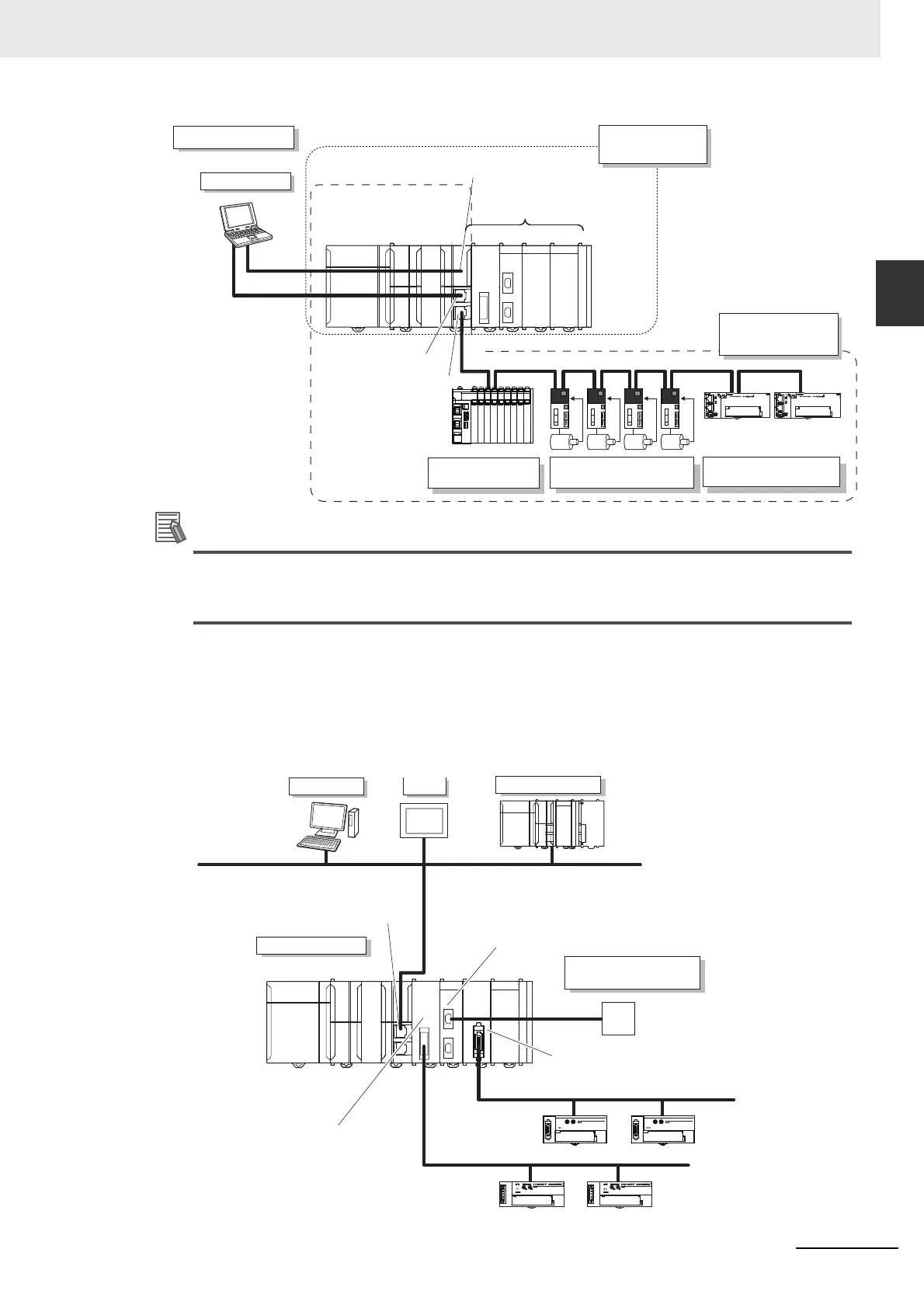

 Network Configurations
• Host computers, HMIs, and other NJ-series Controllers are connected to the built-in EtherNet/IP
port on the CPU Unit or to a CJ1W-EIP21 EtherNet/IP Unit.
• A DeviceNet network is connected to a DeviceNet Unit. A serial communications network is con-
nected to a Serial Communications Unit.
Sysmac Studio
USB
EtherNet/IP
LAN
EtherCAT
Servo Drive/encoder
input slaves
Peripheral USB port
Built-in EtherNet/IP port
Built-in EtherCAT port
General-purpose slaves
Or
CPU Rack
CJ-series Units
CJ-series Unit
Configuration
EtherCAT Network
Configuration
Power
Supply Unit
CPU Unit
NJ-series Controller
Support Software
Slave Terminal
BS+
BD H
DB L
BS
-
REMOTE TERMINAL
01234567 8 9 10 11 12 13 14 15
OUT
CRT1
CRT1
-
OD16
OD16
MS NS WORD NODE ADR
REMOTE TERMINAL
01234567 8 9 10 11 12 13 14 15
OUT
CRT1
CRT1
-
OD16
OD16
MS NS WORD NODE ADR
EtherNet/IP
EtherNet/IP
DeviceNet
CompoNet
CompoNet Master Unit
Serial
Host computer
NJ-series Controller
Example: DeviceNet Unit
Built-in EtherNet/IP port
Power Supply Unit
CPU Unit
NJ-series Controller
Example: Serial Communications Unit
General-purpose device
with serial communications
HMI
