Omron R88D-WT User Manual

2-33
2-3-3 AC Servomotors
H 3,000-r/min Servomotors without a Brake
D 100 V AC: 30 W/50 W/100 W
R88M-W03030L(-S1)/-W05030L(-S1)/-W10030L(-S1) [Incremental]
R88M-W03030S(-S1)/-W05030S(-S1)/-W10030S(-S1) [Absolute]
D 200 V AC: 30 W/50 W/100 W
R88M-W03030H(-S1)/-W05030H(-S1)/-W10030H(-S1) [Incremental]
R88M-W03030T(-S1)/-W05030T(-S1)/-W10030T(-S1) [Absolute]

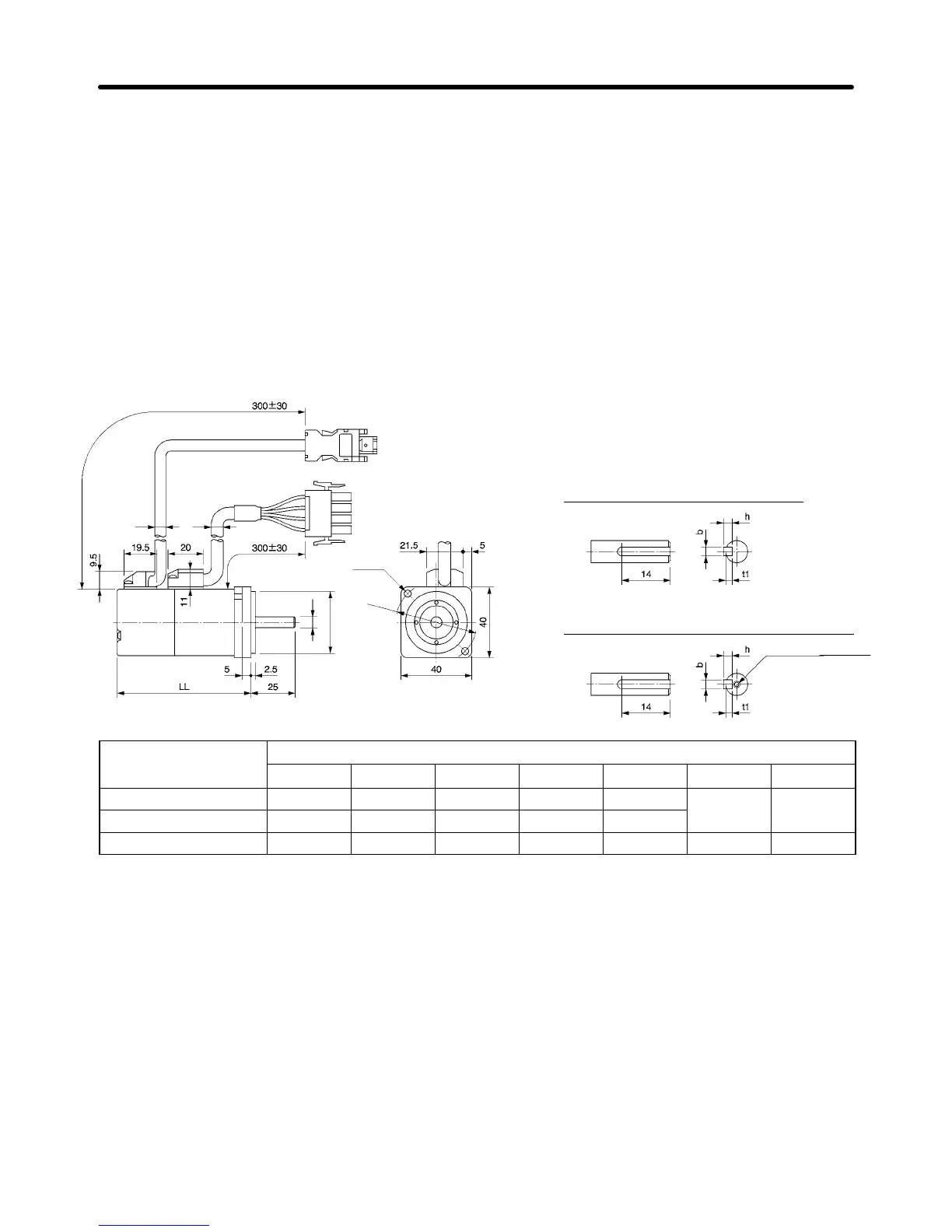

Dimensions of shaft end with key (-S1)
Two, 4.3 dia.
46 dia.
30h7 dia.
S dia.
Dimensions of shaft end with key and tap (-S2)
M (effective depth: )
7 dia.6 dia.
Model
Dimensions (mm)
LL S b h t1 M

R88M-W03030j-j
69.5 6h6 2 2 1.2
M2.5 5
R88M-W05030j-j
77 6h6 2 2 1.2
R88M-W10030j-j
94.5 8h6 3 3 1.8 M3 6
Standard Models and Specifications
Chapter 2

Omron R88D-WT Specifications
