4-17
there are no Pn006 to Pn099). For this reason, if, for example, you change Pn000 to Pn207 using the
Shift Key, you can perform the operation more quickly by making the change starting from the leftmost
digit side (i.e., digit No. 2).

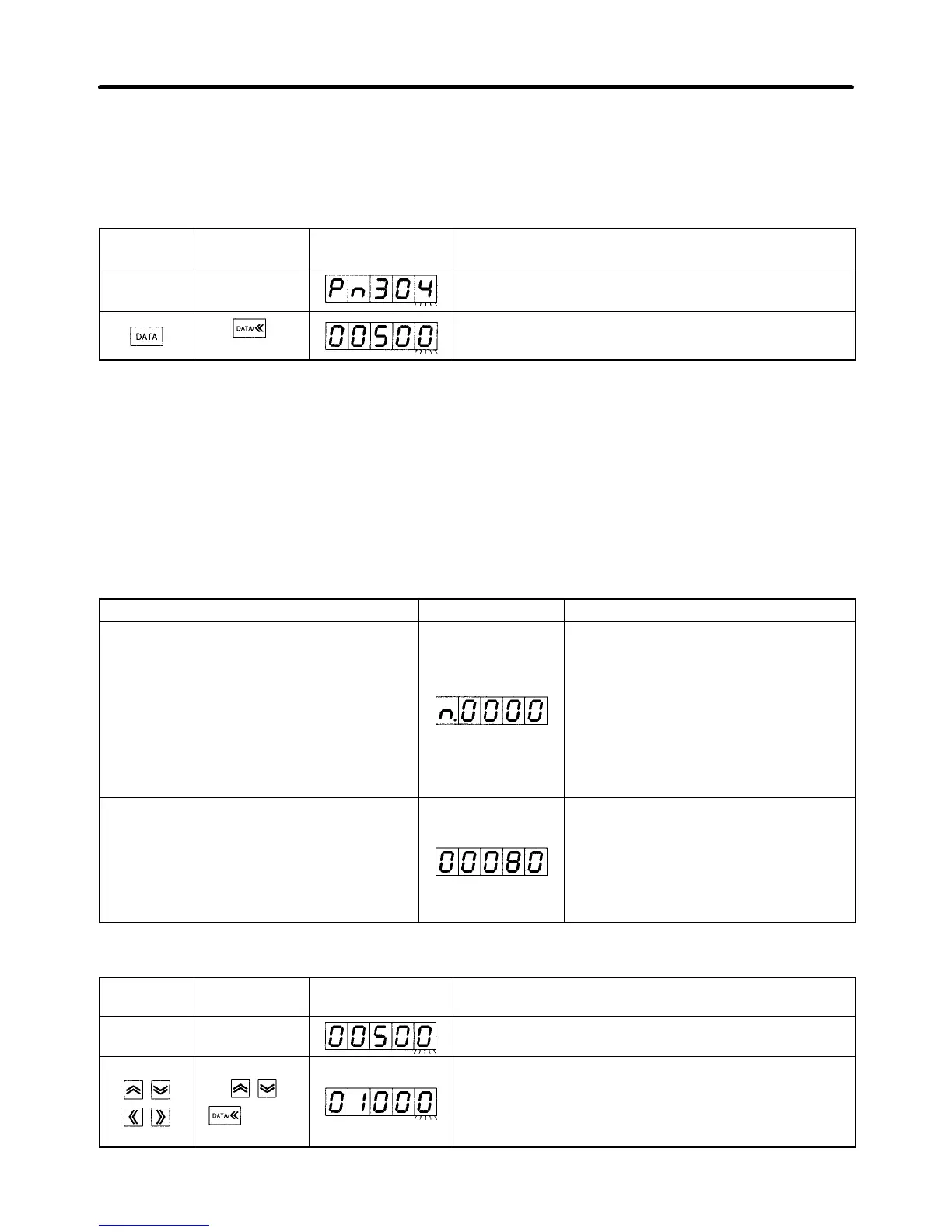

D Displaying Parameter Settings
PR02W
operation
Front panel
key operation
Display example Explanation
(The parameter number is displayed.)
(1 s min.)
Press the DATA Key (front panel: DATA Key for 1 s min.)
to display the parameter setting.
Note Parameter settings can be displayed as 5 digits as shown above, or as “n.” followed by 4 digits,
i.e., as n.jjjj.
D Changing Settings
• The following operation is not necessary if you are only checking the settings.
• Parameter settings can be set as 5 digits, or as 4 digits (displayed as n.jjjj). When set as 4 digits,
each digit in the parameter has a meaning, so the parameter cannot be set just by using the Up and
Down Keys. Be sure to set the parameter using the Left Key (front panel: DATA Key for less than 1 s),
and Right Key.
Types of parameters Display example Explanation
Function selection switches (Pn000 to
Pn003)
Speed control setting (Pn10b)
Online auto-tuning setting (Pn110)
Position control settings 1 to 3 (Pn200,
Pn207, Pn218)
Torque command setting (Pn408)
I/O signal selection (Pn50A to 513)
For parameters displayed as
“n.jjjj“, each of the 4 digits after
the “n.” indicate different function
settings (i.e., 4 different function
settings are performed using 1
parameter No.) For these parameters,
each digit must be set separately.
All other user parameters Parameters displayed using 5 digits
indicate a single value. These
parameters can be set from the lowest
point to the highest point within the
setting range using just the Up or Down
Key. You can also set the digits
separately.
Example of a 5-digit Parameter Setting
PR02W
operation
Front panel
key operation
Display example Explanation
(Present setting)
(less than
1 s)
Change the setting using the Up or Down Key. If the
setting is too large, you can set the operation to be
performed more quickly while changing the operation
digits, using the Left Key (front panel: DATA Key for less
than 1 s) or Right Key.
Operation Chapter 4
