Omron R88M-W User Manual

4-143

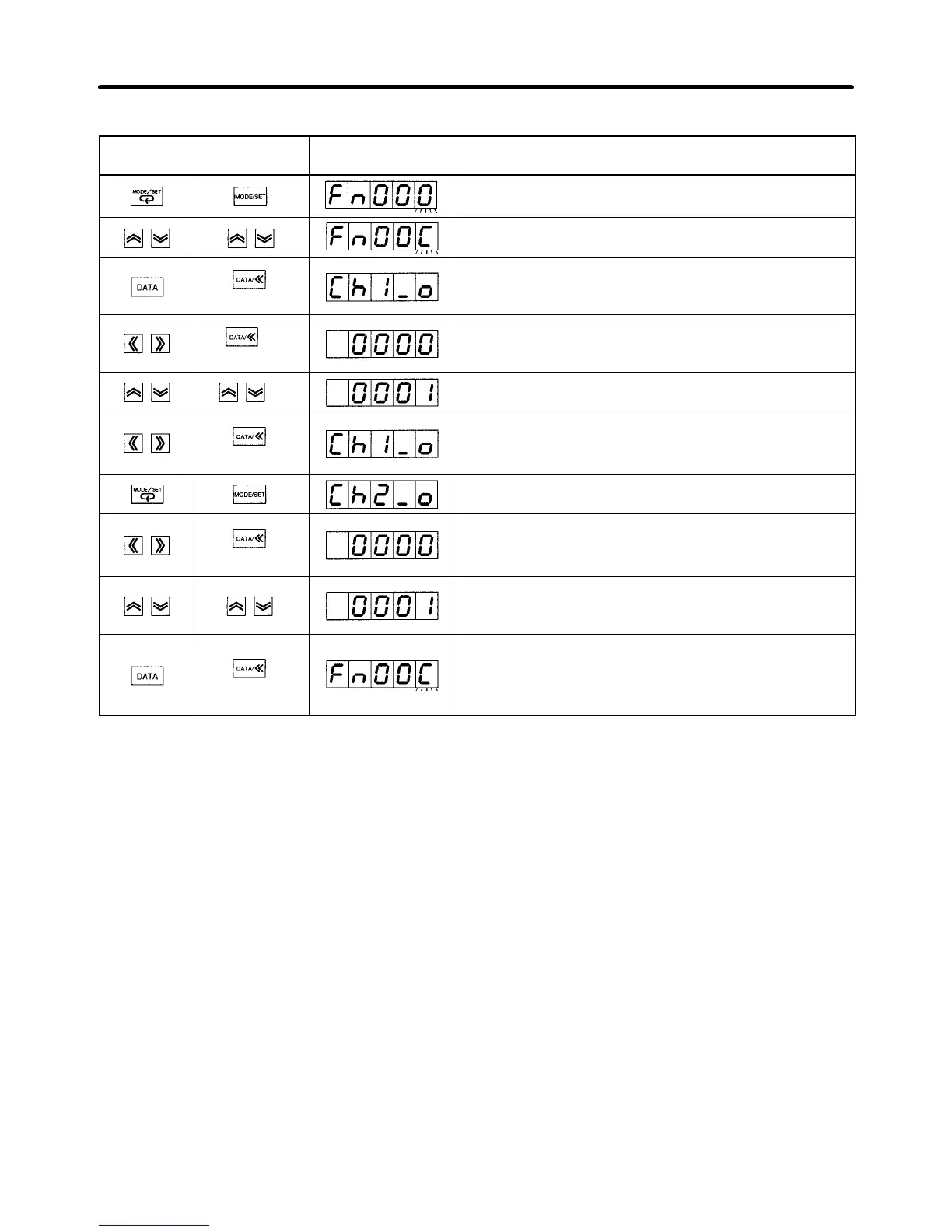

Operation Procedure
PR02W
operation
Front panel
key operation
Display Explanation
Press the MODE/SET Key to change to System Check
Mode.
Press the Up or Down Key to set function code Fn00C.
(See note 1.)
(1 s min.)
Press the DATA Key (front panel: DATA Key for 1 s min.)
to display “Ch1_o” (for analog monitor output 1 (AM)).
(See note 2.)
(1 s max.)
Press the Left Key (front panel: DATA Key for less than
1 s) or Right Key to display the analog monitor output 1
(AM) offset amount. (See note 3.)
Press the Up or Down Key to change the offset amount.
Adjust the measuring device measurement value to 0 V.
(1 s max.)
After completing adjustments for analog monitor 1, press
the Left Key (front panel: DATA Key for less than 1 s) or
Right Key to return to the “Ch1_o” display.
Press the MODE/SET Key to display “Ch2_o.”
(1 s max.)
Press the Left Key (front panel: DATA Key for less than
1 s) or Right Key to display the analog monitor output 2
(NM) offset amount. (See note 3.)
Press the Up or Down Key to change the offset amount.
Adjust the measuring device measurement value to 0 V,
the same as for analog output monitor 1.
(1 s min.)
After completing adjustments for analog monitor 2, press
the DATA Key (front panel: DATA Key for 1 s min.). The
display will return to the System Check Mode function
code.
Note 1. The digits you can manipulate will flash.
Note 2. Press the MODE SET Key in this mode to display “Ch2_o,” then select analog monitor output
2 (NM). Press the same Key again to return to “Ch1_o” display.
Note 3. The offset amount unit is x 17 mV.
Operation Chapter 4
