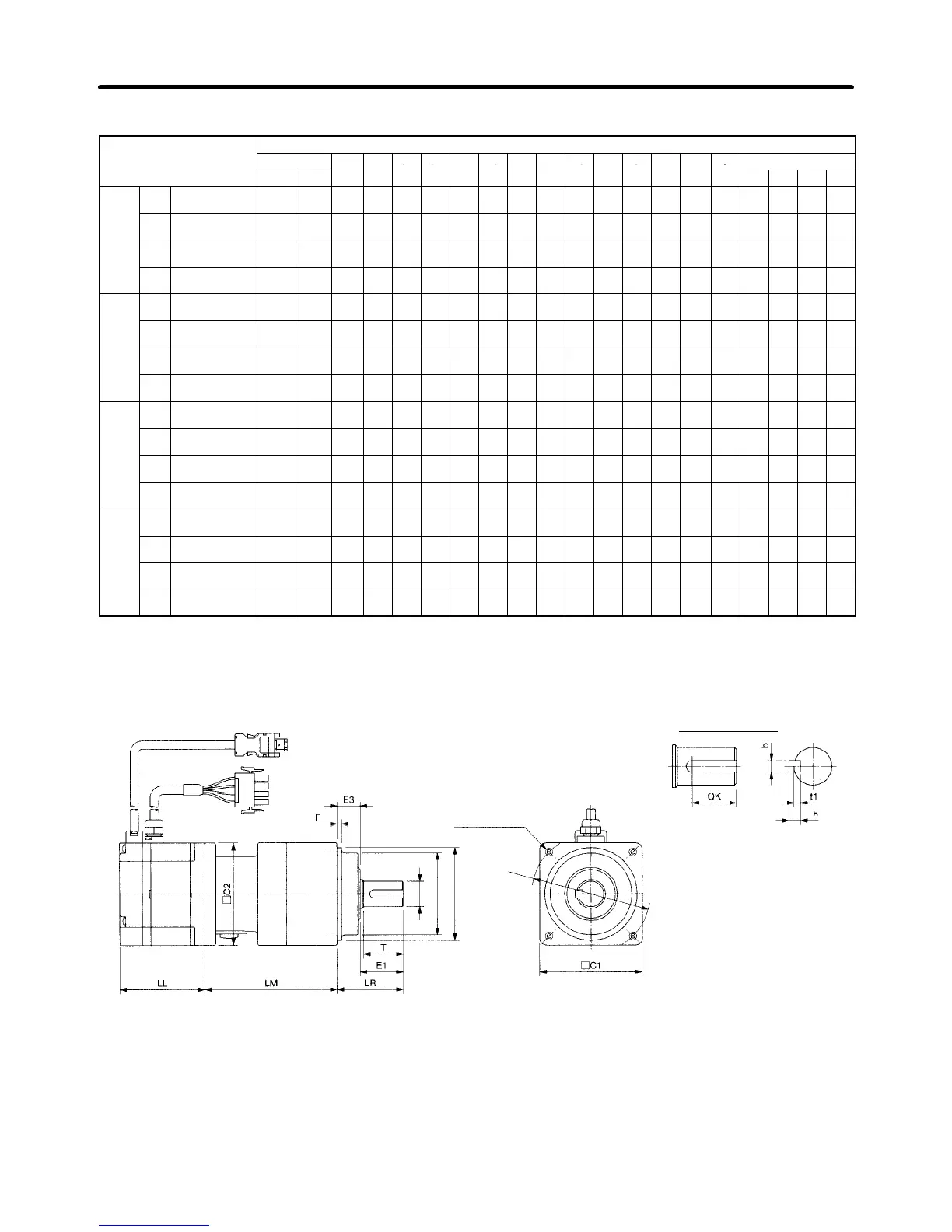

D 3,000-r/min Flat-style Servomotors (100 to 750 W) with Economy Gears
Model
Dimensions (mm)
Model
LL
LM LR C1 C2 D2 D3 D4 E1 E3 F S T Z
 Key dimensions
WOB* WB*
LM
LR
C1
C2
D2
D3
D4
E1
E3
F
S
T
Z

QK b h t1
100 W
1/5
R88M-WP10030
j-jG05CJ
62 91 72.5 32 52 60 60 50 45 22 10 3 12 20 M5 12 16 4 4 2.5
1/9
R88M-WP10030
j-jG09CJ
62 91 72.5 32 52 60 60 50 45 22 10 3 12 20 M5 12 16 4 4 2.5
1/15
R88M-WP10030
j-jG15CJ
62 91 78 32 52 60 60 50 45 22 10 3 12 20 M5 12 16 4 4 2.5
1/25
R88M-WP10030
j-jG25CJ
62 91 92 50 78 60 90 70 62 33 17 3 19 30 M6 20 22 6 6 3.5
200 W
1/5
R88M-WP20030
j-jG05CJ
67 98.5 72.5 32 52 80 60 50 45 22 10 3 12 20 M5 12 16 4 4 2.5
1/9
R88M-WP20030
j-jG09CJ
67 98.5 89.5 50 78 80 90 70 62 33 17 3 19 30 M6 20 22 6 6 3.5
1/15
R88M-WP20030
j-jG15CJ
67 98.5 100 50 78 80 90 70 62 33 17 3 19 30 M6 20 22 6 6 3.5
1/25
R88M-WP20030
j-jG25CJ
67 98.5 100 50 78 80 90 70 62 33 17 3 19 30 M6 20 22 6 6 3.5
400 W
1/5
R88M-WP40030
j-jG05CJ
87 118.5 89.5 50 78 80 90 70 62 33 17 3 19 30 M6 20 22 6 6 3.5
1/9
R88M-WP40030
j-jG09CJ
87 118.5 89.5 50 78 80 90 70 62 33 17 3 19 30 M6 20 22 6 6 3.5
1/15
R88M-WP40030
j-jG15CJ
87 118.5 100 50 78 80 90 70 62 33 17 3 19 30 M6 20 22 6 6 3.5
1/25
R88M-WP40030
j-jG25CJ
87 118.5 104 61 98 80 115 90 75 43 18 5 24 40 M8 20 30 8 7 4
750 W
1/5
R88M-WP75030
j-jG05CJ
86.5 120 93.5 50 78 120 90 70 62 33 17 3 19 30 M6 20 22 6 6 3.5
1/9
R88M-WP75030
j-jG09CJ
86.5 120 97.5 61 98 120 115 90 75 43 18 5 24 40 M8 20 30 8 7 4
1/15
R88M-WP75030
j-jG15CJ
86.5 120 110 61 98 120 115 90 75 43 18 5 24 40 M8 20 30 8 7 4
1/25
R88M-WP75030
j-jG25CJ
86.5 120 135 75 125 120 135 110 98 58 17 5 32 55 M10 20 45 10 8 5
Note WOB and WB mean “without brake” and “with brake,” respectively.
Diagram
Key dimensions
Four, Z dia.
(Effective depth:
)
D2 dia.
D3h7 dia.
D4 dia.
Sh6 dia.
