Omron SMARTSTEP 2 R88M-G Series User Manual

3-42
3-4 Cable and Connector Specifications
3
Specifications

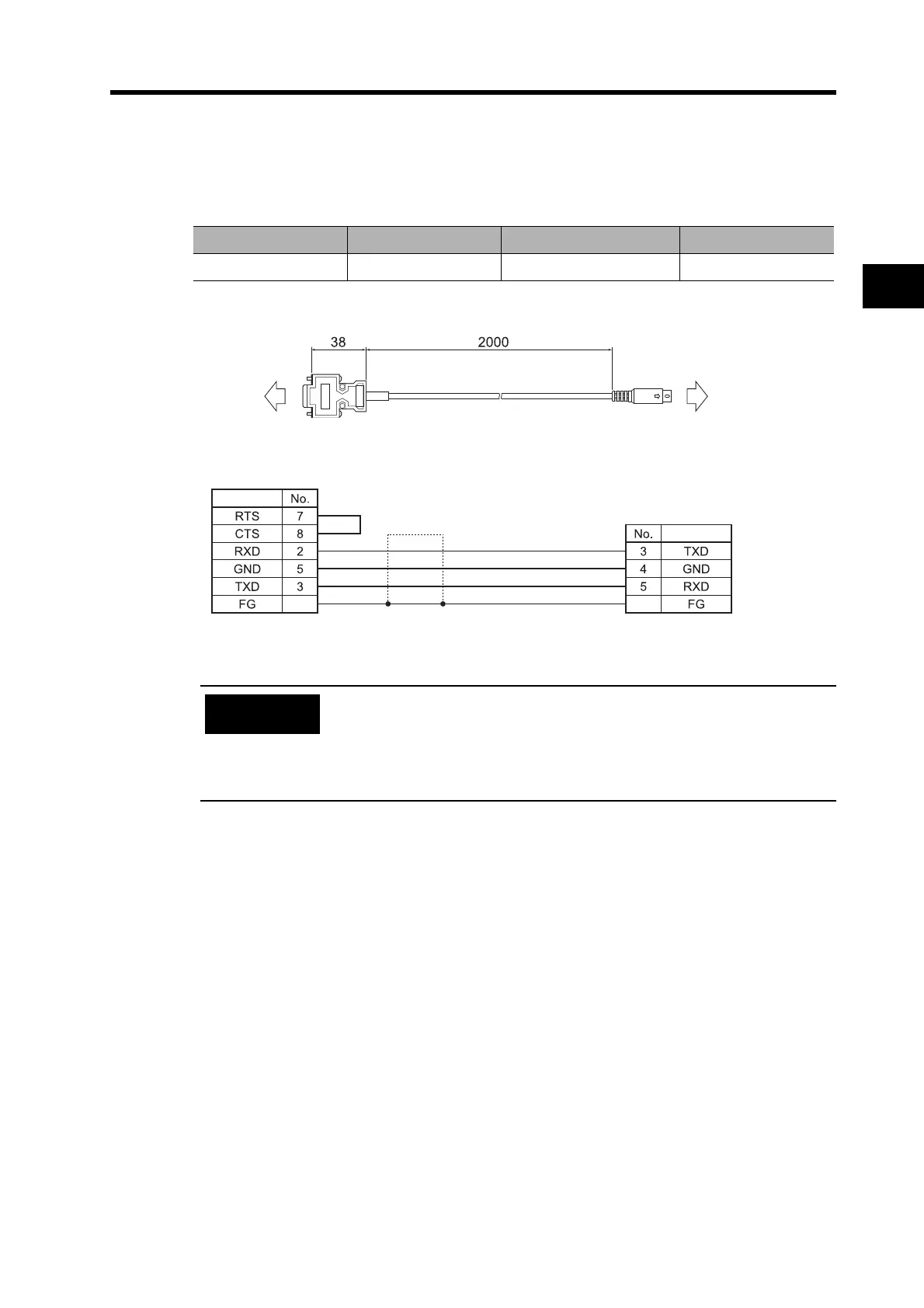

Communications Cable Specifications
 Personal Computer Monitor Cable
Cable Models
Connection Configuration and External Dimensions
Wiring
Model Length (L) Outer diameter of sheath Weight
R88A-CCG002P2
2 m 5.2 dia. Approx. 0.12 kg
 Communications with the Host Device
After confirming the startup of the Servo Drive, initiate communications
with the host device.
Note that irregular signals may be received from the host interface during
startup. For this reason, take appropriate initialization measures such as
clearing the receive buffer.
R7D-BP@
Personal computer end
Servo Drive end
Signal
Signal
Personal computer
Shell Shell
Cable: AWG28 x 3C UL2576
Servo Drive
PC Connector
17JE-13090-02 (D8A) (DDK Ltd.)
Precautions
for Correct Use
