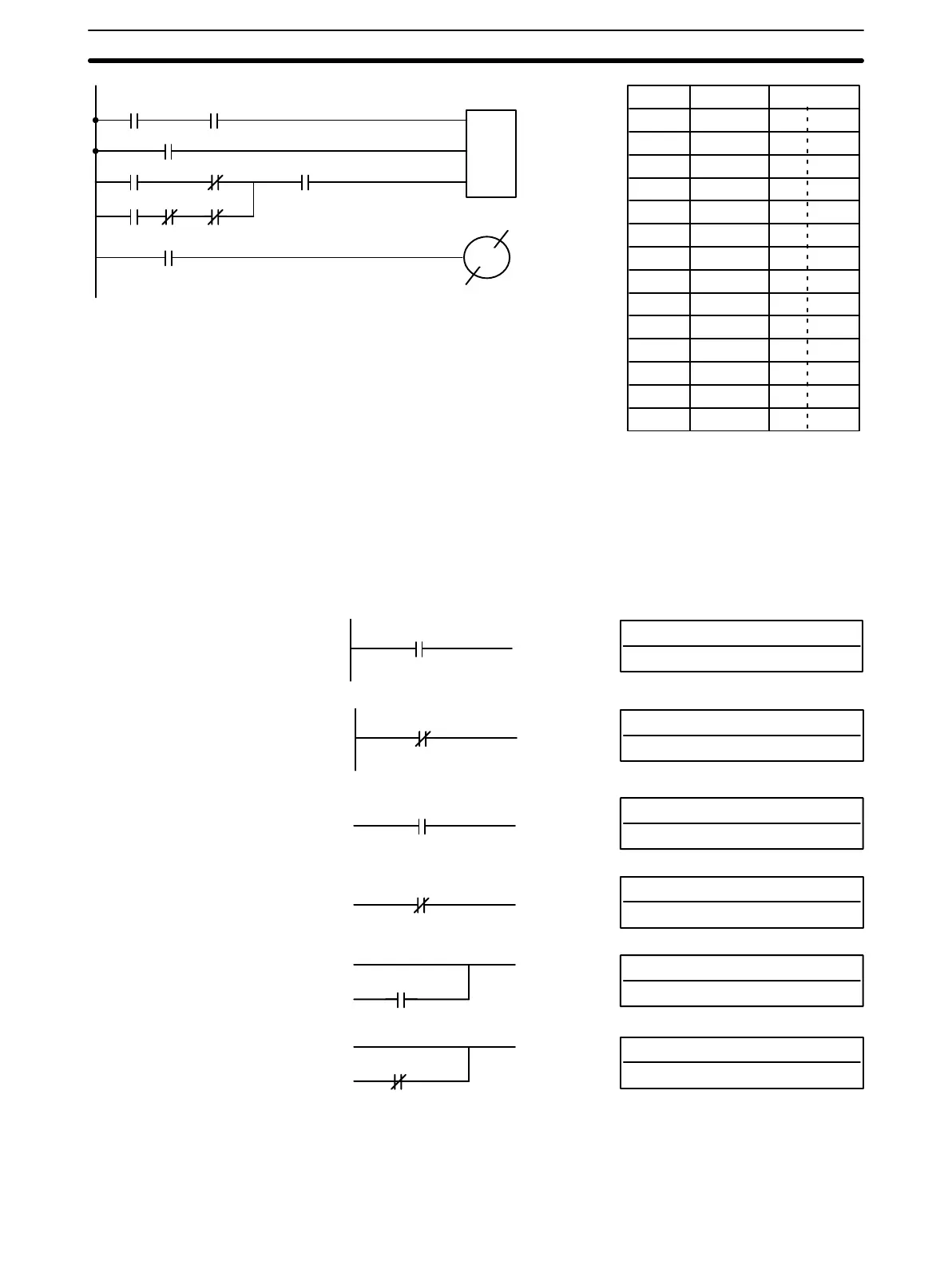

I
P
R
SFT(33)
DR 00
Address Instruction Data
000 LD 0000
001 AND 0001
002 LD 0002
003 LD 0215
004 AND NOT 0200
005 LD 0201
006 AND NOT 0214
007 AND NOT LR 0000
008 OR LD --
009 AND 0215
010 SFT(33) --
DR 00
011 LD DR 0015
012 OUT NOT 0100
0215 0200
0100
0201 0214 LR 0000
0215
0002
DR 0015
0000 0001
When you have finished coding the program, make sure you have placed
END(01) at the last address. If there is not END(01) instruction in the pro-
gram, the program will not be executed even if you switch to RUN mode.
3-7-5 LOAD, LOAD NOT, AND, AND NOT, OR, and OR NOT
B: Bit
I/O, work, dedicated, DR, LR, TC
Ladder Symbols Operand Data Areas
LOAD - LD
B
B: Bit
I/O, work, dedicated, DR, LR, TC
LOAD NOT - LD NOT
B
B: Bit
I/O, work, dedicated, DR, LR, TC
AND - AND
B
B: Bit
I/O, work, dedicated, DR, LR, TC
AND NOT - AND NOT
B
B: Bit
I/O, work, dedicated, DR, LR, TC
OR - OR B
B: Bit
I/O, work, dedicated, DR, LR, TC
OR NOT - OR NOT B
There is no limit to the number of any of these instructions, or restrictions in
the order in which they must be used, as long as the memory capacity of the
PC is not exceeded.
END(01)
Limitations
Instruction Set Section 3-7
