on networks N300RE User Manual

Extender Network Settings
15
N300RE WiFi Range Extender
Your computer or wireless devices is automatically disconnected from the Extender WiFi
network.

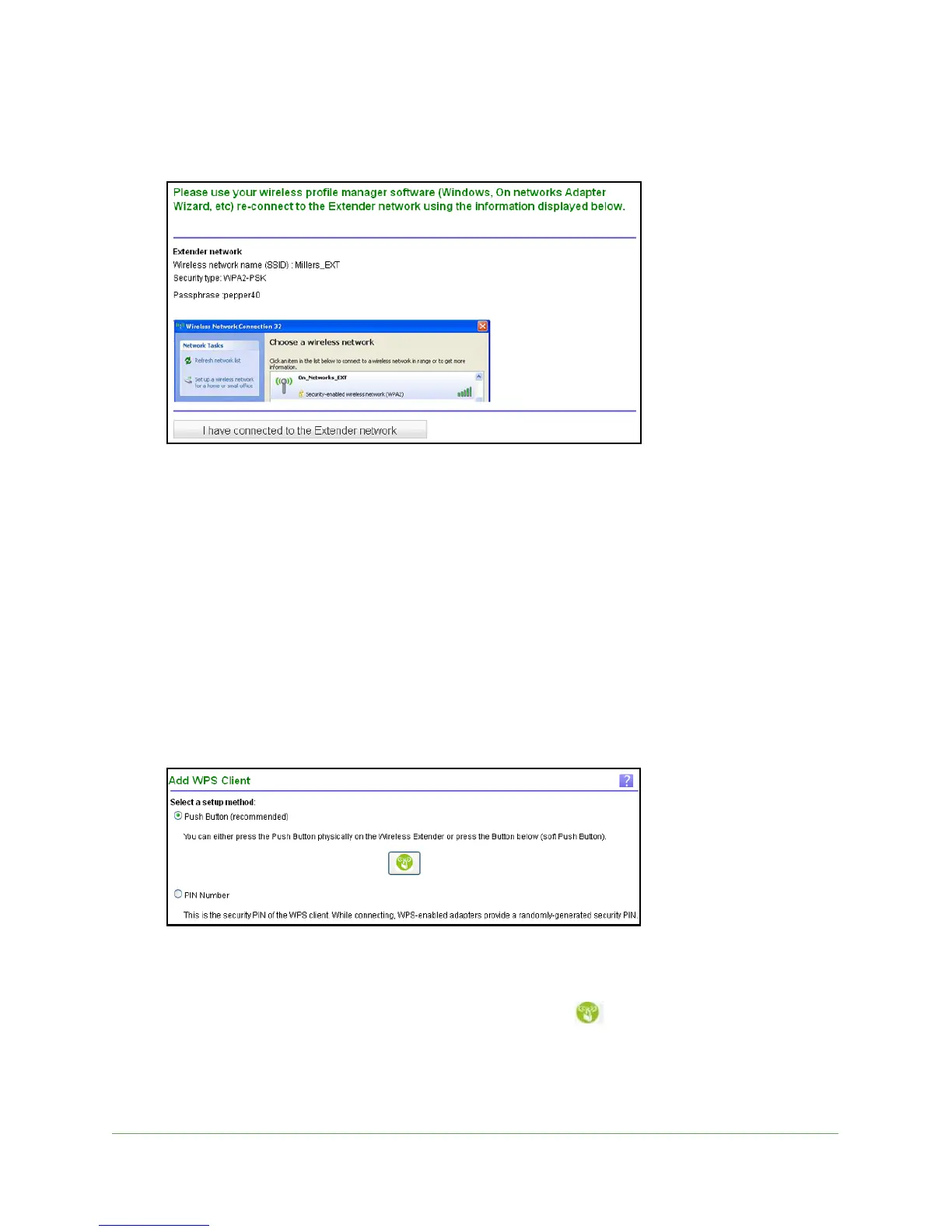

4. With the software that you use to manage your wireless connections, join the Extender
wireless network.
5. Click the I ha
ve connected to the Extender network button.
Use WPS to Join the Extender Wireless Network
Wi-Fi Protected Setup (WPS) lets you connect to a secure WiFi network without typing its
password. Instead, press a button or enter a PIN. Some older WiFi equipment is not
compatible with WPS. WPS works only with WPA2 or WPA wireless security.
 To use WPS to join the extender network:
1. Select Home > WPS Setup.
2. Click Next.
By default, the Push Button (recommended) radio button is selected.
3. Use
either the push button or PIN method.
• T
o connect with the push button method, click the button.
• T
o connect with a PIN, select the PIN number radio button and enter the client PIN in
the field that displays.

on networks N300RE Specifications

General

Type	-
Maximum transfer distance	- m
Windows operating systems supported	Yes
Product color	White
Bandwidth	2.4 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPS
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	45 mm
Width	74 mm
Height	112 mm
Weight	245 g
