on networks N300RE User Manual

Extender Network Settings
19
N300RE WiFi Range Extender

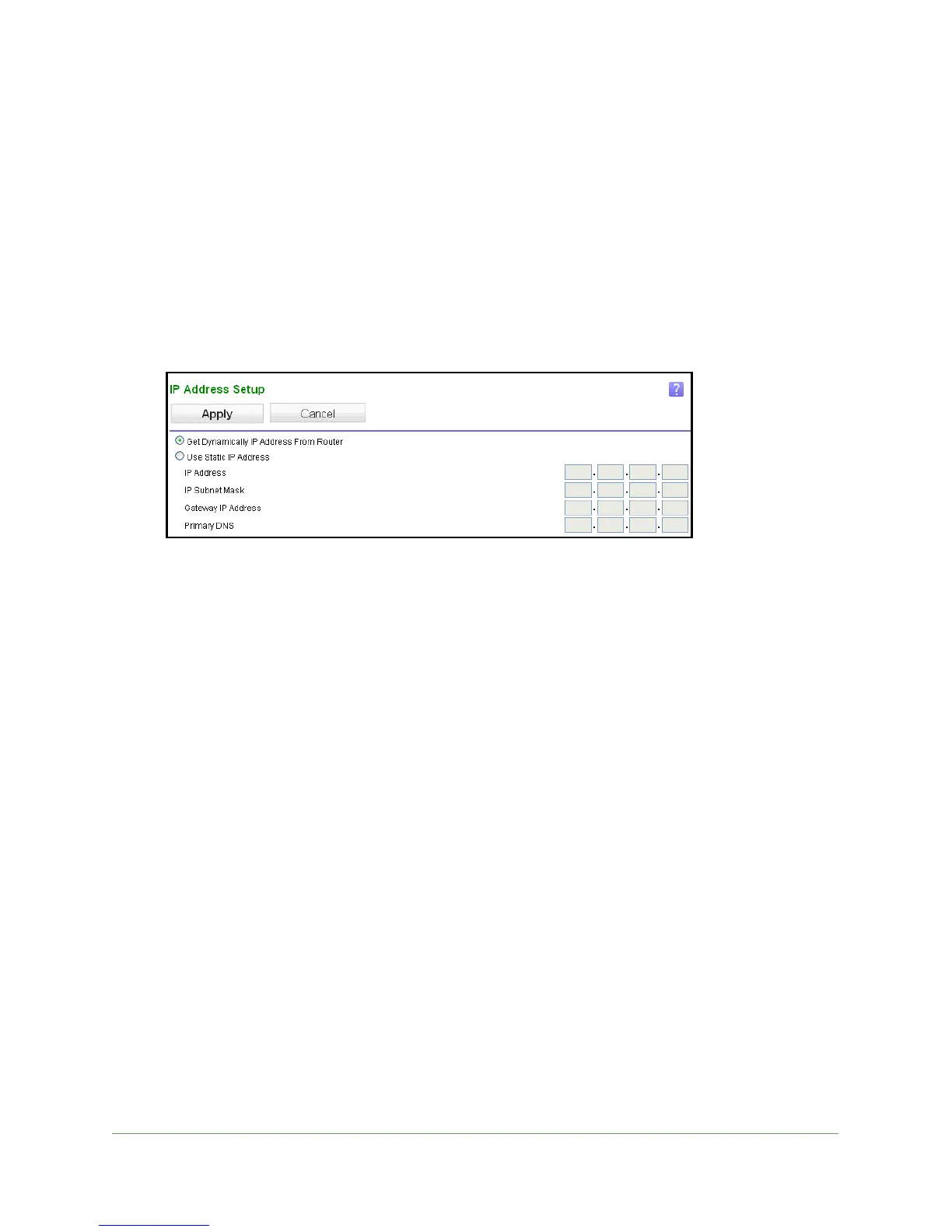

IP Address Setup
The IP Address Setup screen shows whether the extender is set to get its IP address
dynamically from the router (this is the most common setting), or is set as a static IP address.
By default, the extender is set up so that the router in your existing network assigns the
extender an IP
address. Most networks are set up so that the router automatically assigns IP
addresses.
 To view the IP address setup:
Select Maintena
nce > IP Address.
By default, the Get Dynamically IP Address From Router check box is selected.
On Networks recommends this setting because it is easy to
use and is compatible with
most networks.
 To specify a static IP address:
On Networks recommends that you do this only if you
have a specific reason and you have
experience with static IP addresses or you have a technically experienced person help you.
1. Select Ma
intenance > IP Address
2. Select the Us
e Static IP Address radio button.
3. In th
e IP Address field, enter the static IP address.
4. In th
e IP Subnet Mask field, enter the subnet mask associated with the IP address.
5. In th
e Gateway IP Address field, enter the IP address for the gateway.
6. In th
e Primary DNS field, enter the primary Domain Name Server (DNS).
7. In th
e Secondary DNS field, enter the secondary Domain Name Server (DNS).
8. Click Apply.
Your changes are saved.

on networks N300RE Specifications

General

Type	-
Maximum transfer distance	- m
Windows operating systems supported	Yes
Product color	White
Bandwidth	2.4 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPS
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	45 mm
Width	74 mm
Height	112 mm
Weight	245 g
