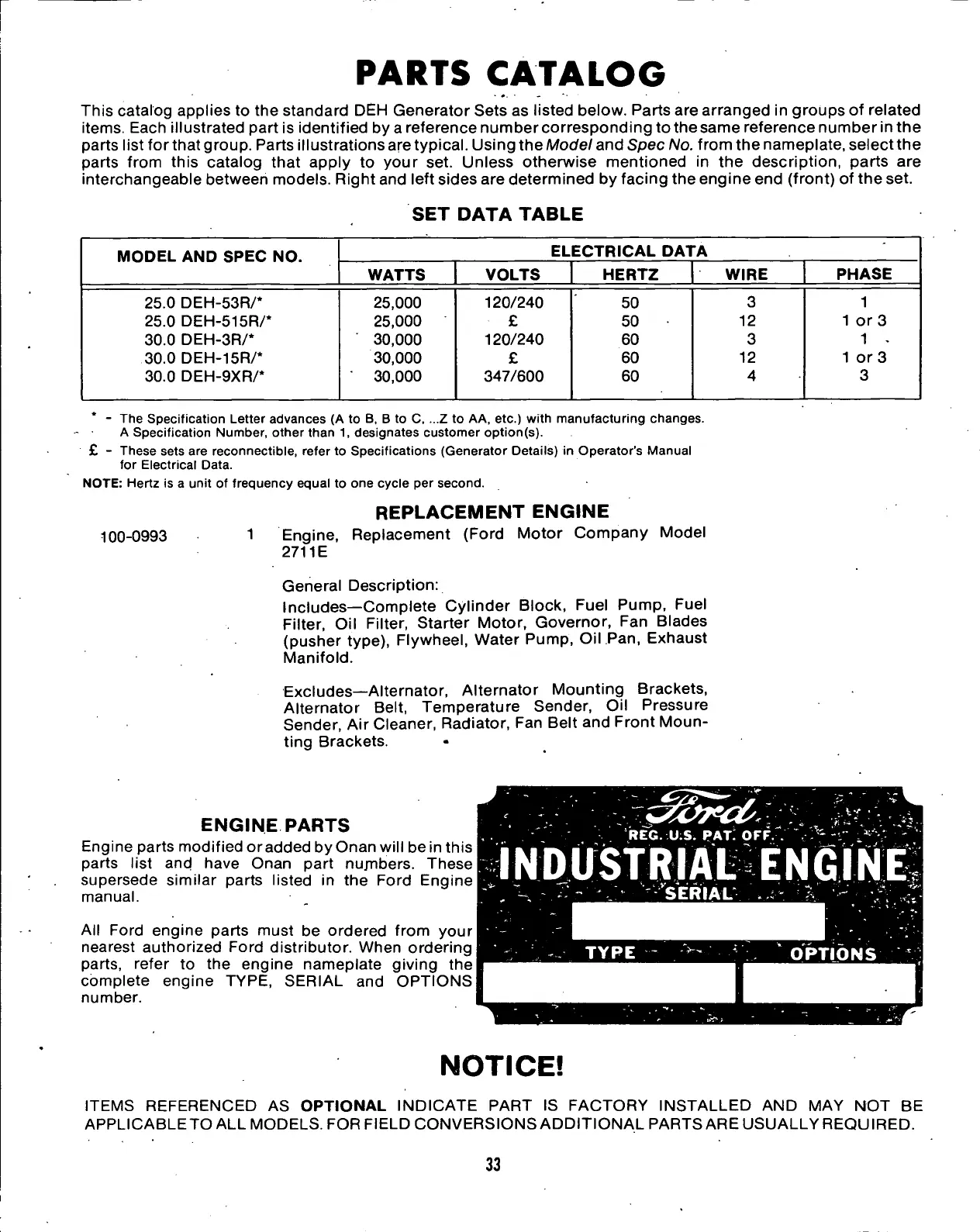

PARTS
CATALOG
This catalog applies to the standard DEH Generator Sets as listed below. Parts are arranged in groups of related
items.
Each illustrated part is identified by a reference number corresponding to the same reference number in the
parts list for that group. Parts illustrations are
typical.
Using the Model and Spec No. from the nameplate, select the
parts from this catalog that apply to your set. Unless otherwise mentioned in the description, parts are
interchangeable between models. Right and left sides are determined by facing the engine end (front) of the set.
SET
DATA
TABLE
MODEL
AND
SPEC
NO.
ELECTRICAL
DAI
FA
MODEL
AND
SPEC
NO.
WATTS
VOLTS
HERTZ
WIRE
PHASE
25.0 DEH-53R/*
25,000 120/240
50
3
1
25.0 DEH-515R/*
25,000 £
50
12 1 or 3
30.0 DEH-3R/* 30,000
120/240 60
3
1 -
30.0 DEH-15R/*
30,000 £
60
12 1 or 3
30.0 DEH-9XR/*
• 30,000
347/600 60
4
3
* - The Specification Letter advances (A to B, B to C, ...Z to AA, etc.) with manufacturing changes.
A Specification Number, other than 1, designates customer option(s).
£ - These sets are reconnectible, refer to Specifications (Generator Details) in Operator's Manual
for Electrical Data.
NOTE:
Hertz is a unit of frequency equal to one cycle per second.
100-0993
REPLACEMENT
ENGINE
Engine, Replacement (Ford Motor Company Model
2711E
General Description:
Includes—Complete Cylinder Block, Fuel Pump, Fuel
Filter, Oil Filter, Starter Motor, Governor, Fan Blades
(pusher type), Flywheel, Water Pump, Oil Pan, Exhaust
Manifold.
Excludes—Alternator, Alternator Mounting Brackets,
Alternator Belt, Temperature Sender, Oil Pressure
Sender, Air Cleaner, Radiator, Fan Belt and Front Moun-
ting Brackets.
ENGINE
PARTS
Engine parts modified oradded by Onan will be in this
parts list and have Onan part numbers. These
supersede similar parts listed in the Ford Engine
manual.
_ I
All Ford engine parts must be ordered from your
nearest authorized Ford distributor. When ordering
parts,
refer to the engine nameplate giving the
complete engine TYPE, SERIAL and OPTIONS
number.
< ' ^petrel': : ^.•••^
REG.
U.S. PAT. OFF.". . > •
1
• -
INDUSTRIAL
ENGINE
SERIAL
TYPE
OPTIONS
NOTICE!
ITEMS REFERENCED AS OPTIONAL INDICATE PART IS FACTORY INSTALLED AND MAY NOT BE
APPLICABLETO ALL MODELS. FOR FIELD CONVERSIONS ADDITIONAL PARTS ARE USUALLY REQUIRED.
33
