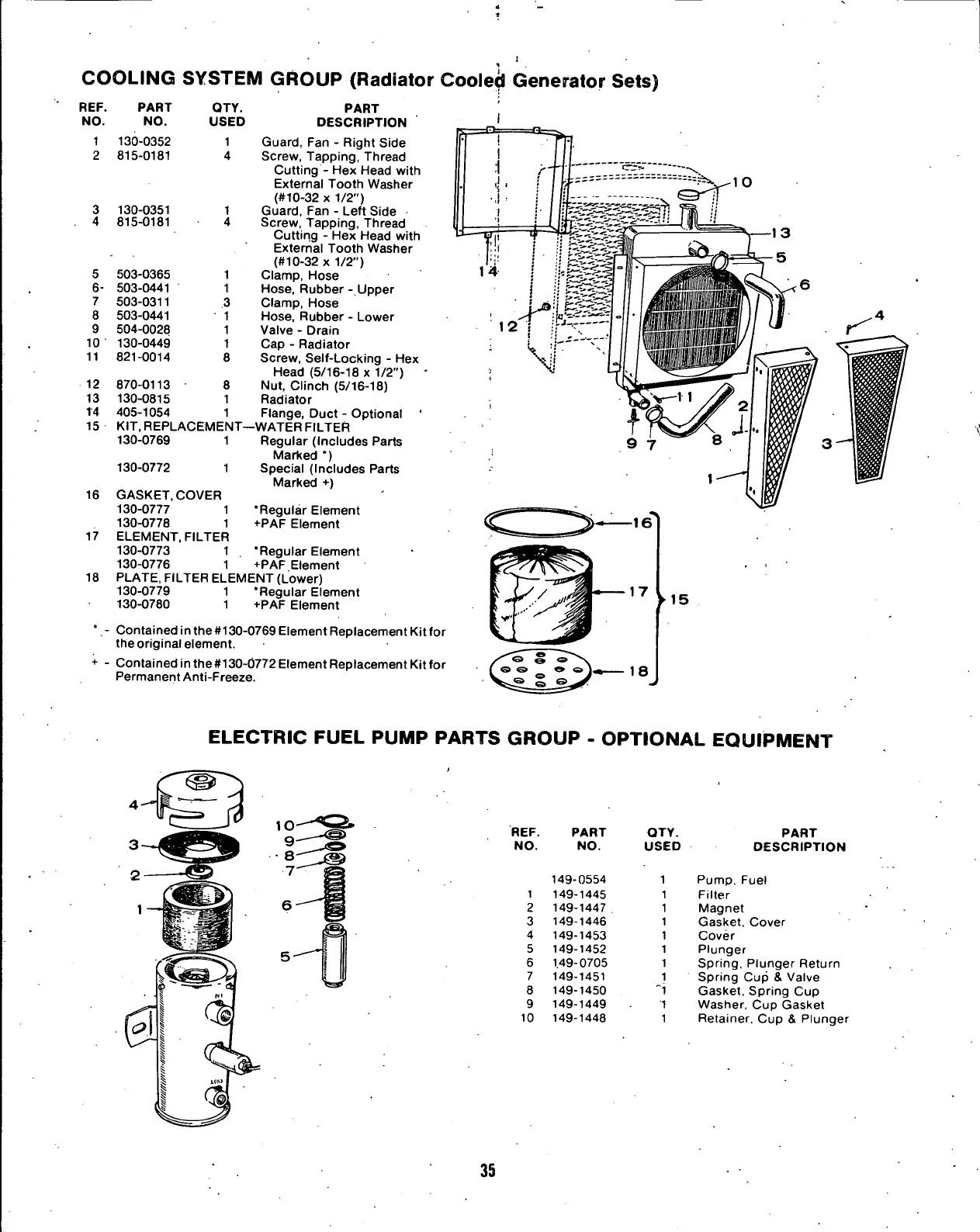

COOLING SYSTEM GROUP (Radiator Cooled Generator Sets)
^EF. PART
QTY.
PART
NO. NO. USED
DESCRIPTION
1
130-0352
1
Guard, Fan - Right Side
2 815-0181 4
Screw, Tapping, Thread
Cutting - Hex Head with
External Tooth Washer
(#10-32 x 1/2")
3 130-0351 1 Guard, Fan - Left Side
4 815-0181 4 Screw, Tapping, Thread
Cutting - Hex Head with
External Tooth Washer
(#10-32 x 1/2")
5 503-0365 1
Clamp, Hose
6- 503-0441 1
Hose, Rubber - Upper
7 503-0311
3
Clamp, Hose
8 503-0441 1
Hose, Rubber - Lower
9 504-0028 1
Valve - Drain
10 130-0449
1
Cap - Radiator
11 821-0014
8
Screw, Self-Locking - Hex
Head (5/16-18 x 1/2")
12 870-0113 8
Nut, Clinch (5/16-18)
13 130-0815 1
Radiator
14 405-1054
1
Flange, Duct - Optional '
15 KIT, REPLACEMENT-
-WATER FILTER
130-0769
1
Regular (Includes Parts
Marked *)
130-0772 1
Special (Includes Parts
Marked +)
16 GASKET, COVER
Marked +)
130-0777
1
•Regular Element
130-0778 1
+PAF Element
17 ELEMENT, FILTER
130-0773
1
•Regular Element
130-0776 1
+PAF Element
18
PLATE, FILTER ELEMENT (Lower)
130-0779 1 •Regular Element
130-0780 1 +PAF Element
Contained i n the #130-0769 Element Replacement Kit for
the original element.
Contained in the #130-0772 Element Replacement Kit for
Permanent Anti-Freeze.
ELECTRIC FUEL PUMP PARTS GROUP - OPTIONAL EQUIPMENT
REF.
PART QTY.
NO. NO.
USED
149-0554
!
1
149-1445
1
2 149-1447 . 1
3
149-1446
1
4
149-1453
1
5
149-1452
1
6 1.49-0705
1
7
149-1451
1
8
149-1450
"1
9 149-1449 1
10
149-1448
1
PART
DESCRIPTION
Pump. Fuel
Filter
Magnet
Gasket, Cover
Cover
Plunger
Spring, Plunger Return
Spring Cup & Valve
Gasket. Spring Cup
Washer, Cup Gasket
Retainer. Cup & Plunger
35
