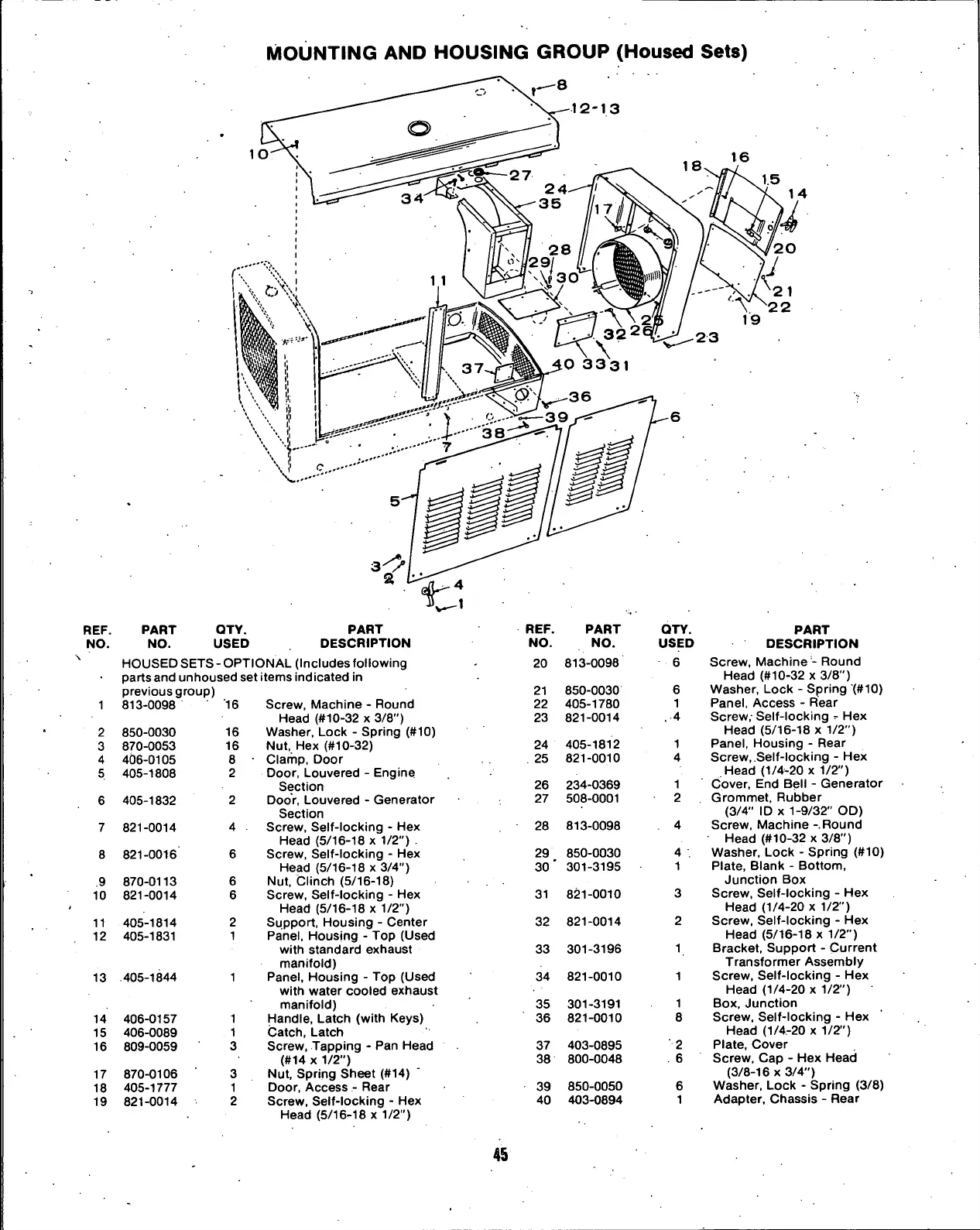

MOUNTING AND HOUSING GROUP (Housed Sets)
-8
-12-13
REF.
NO.
PART
NO.
QTY.
USED
PART
DESCRIPTION
HOUSED SETS - OPTIONAL (Includes following
parts and unhoused set items indicated in
previous group)
Screw, Machine - Round
Head (#10-32 x 3/8")
Washer, Lock - Spring (#10)
Nut, Hex (#10-32)
Clamp, Door
Door, Louvered - Engine
Section
Door, Louvered - Generator
Section
Screw, Self-locking - Hex
Head (5/16-18 x 1/2") .
Screw, Self-locking - Hex
Head (5/16-18 x 3/4")
Nut, Clinch (5/16-18)
Screw, Self-locking - Hex
Head (5/16-18 x 1/2")
Support, Housing - Center
Panel, Housing - Top (Used
with standard exhaust
manifold)
Panel, Housing - Top (Used
with water cooled exhaust
manifold)
Handle, Latch (with Keys)
Catch, Latch
Screw, Tapping - Pan Head
(#14 x 1/2")
Nut, Spring Sheet (#14) "
Door, Access - Rear
Screw, Self-locking - Hex
Head (5/16-18 x 1/2")
1
813-0098
"16
2
850-0030
16
3
870-0053
16
4
406-0105
8
5 405-1808
2
6 405-1832
2
7 821-0014
4
8 821-0016
6
.9
870-0113
6
10
821-0014 6
11
405-1814
2
12 405-1831
1
13
.405-1844
1
14 406-0157
1
15 406-0089
1
16 809-0059
3
17 870-0106 '
3
18
405-1777 1
19
821-0014
2
REF.
PART QTY.
NO. NO. USED
20
813-0098
6
21 850-0030
6
22 405-1780
1
23 821-0014 .4
24
405-1812 1
25
821-0010
4
26
234-0369
1
27 508-0001 2
28 813-0098
. 4
29 850-0030
4 .
30'
301-3195 1
31 821-0010
3
32
821-0014
2
33
301-3196
1
34 821-0010
1
35
301-3191
1
36 821-0010
8
37 403-0895
2
38
800-0048
6
39
850-0050 6
40
403-0894
1
PART
DESCRIPTION
Screw, Machine - Round
Head (#10-32 x 3/8")
Washer, Lock - Spring (#10)
Panel, Access - Rear
Screw,- Self-locking =• Hex
Head (5/16-18 x 1/2")
Panel, Housing - Rear
Screw,.Self-locking - Hex
Head (1/4-20 x 1/2")
Cover, End Bell - Generator
Grommet, Rubber
(3/4" ID x 1-9/32" OD)
Screw, Machine - Round
Head (#10-32x3/8")
Washer, Lock - Spring (#10)
Plate, Blank - Bottom,
Junction Box
Screw, Self-locking - Hex
Head (1/4-20 x 1/2")
Screw, Self-locking - Hex
Head (5/16-18 x 1/2")
Bracket, Support - Current
Transformer Assembly
Screw, Self-locking - Hex
Head (1/4-20 x 1/2")
Box, Junction
Screw, Self-locking - Hex
Head (1/4.-20 x 1/2")
Plate, Cover
Screw, Cap - Hex Head
(3/8-16 x 3/4")
Washer, Lock - Spring (3/8)
Adapter, Chassis - Rear
45
