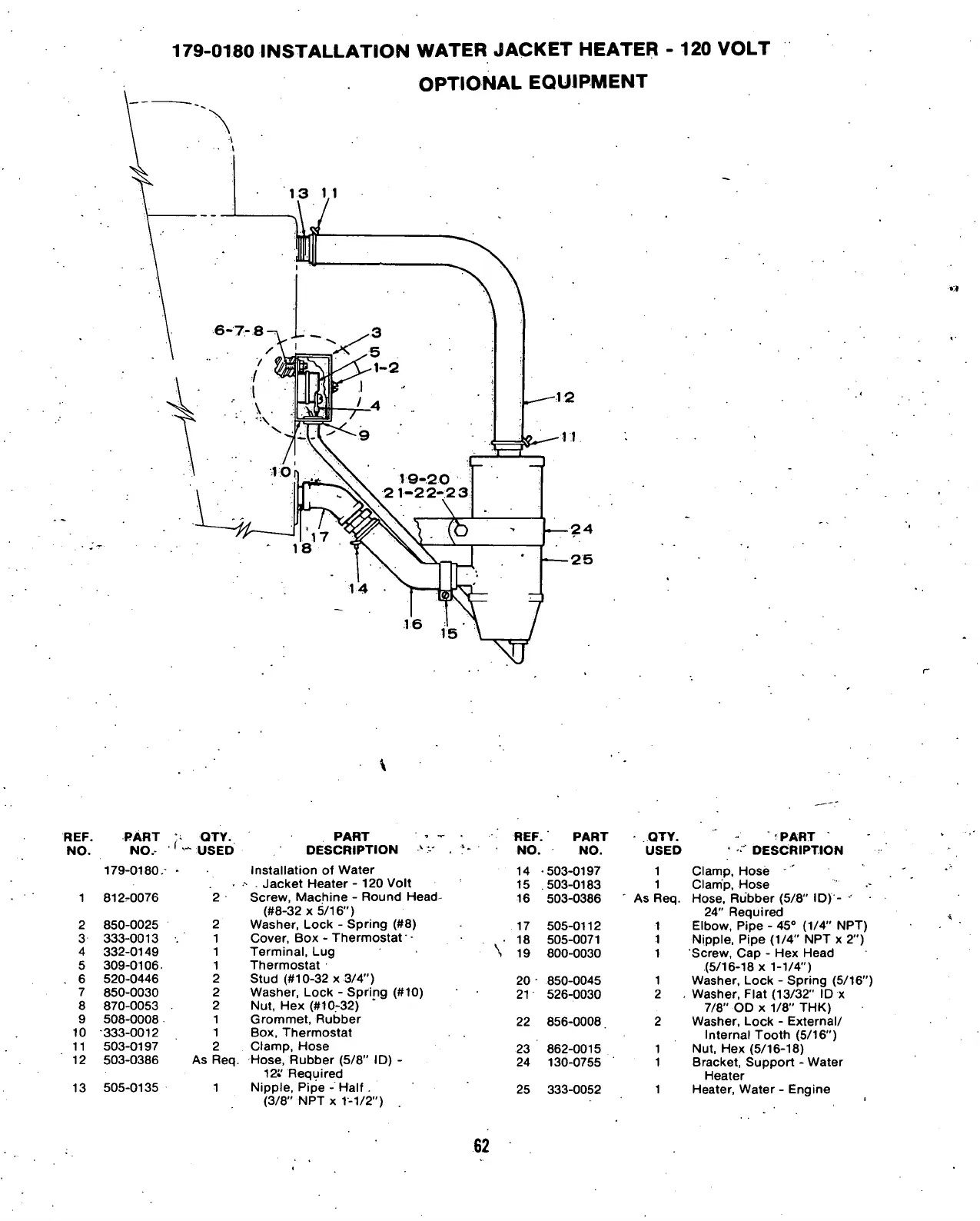

179-0180 INSTALLATION WATER JACKET HEATER - 120 VOLT
OPTIONAL EQUIPMENT
REF.
PART
; QTY.
PART • * - • REF. PART QTY.
PART
NO.
NO. ' ~ USED
DESCRIPTION
NO.
NO.
USED
DESCRIPTION
179-0180 .-
Installation of Water
14
503-0197
1
Clamp, Hose
- Jacket Heater - 120 Volt
15
503-0183
1 Clamp, Hose
1 812^0076 2 Screw, Machine - Round Head
16
503-0386
As Req. Hose, Rubber (5/8" ID) - - •
(#8-32x5/16")
As Req.
24" Required
2 850-0025 2 Washer, Lock - Spring (#8)
17 505-0112 1
Elbow, Pipe - 45° (1/4" NPT)
3 333-0013 1 Cover, Box - Thermostat --
• 18
505-0071 1 Nipple, Pipe (1/4" NPT x 2")
4 332-0149 1 Terminal, Lug
\ 19 800-0030 1
Screw, Cap - Hex Head
5 309-0106. 1 Thermostat
(5/16-18 x 1-1/4")
. 6 520-0446 2 Stud (#10-32 x 3/4")
20 -
850-0045
1
Washer, Lock - Spring (5/16")
7 850-0030 2 Washer, Lock - Spring (#10)
21
526-0030
2 Washer, Flat (13/32" ID x
8 870-0053 . 2 Nut, Hex (#10-32)
7/8" OD x 1/8" THK)
9 508-0008 1 Grommet, Rubber
22 856-0008.
2 Washer, Lock - External/
10 -333-0012 1 Box, Thermostat
Internal Tooth (5/16")
11 503-0197 2 Clamp, Hose
23 862-0015
1 Nut, Hex (5/16-18)
12 503-0386 As Req. Hose, Rubber (5/8" ID) -
24
130-0755
1
Bracket, Support - Water
12;' Required
Heater
13 505-0135 1 Nipple, Pipe - Half.
25 333-0052
1
Heater, Water - Engine
(3/8" NPT x 1-1/2")
Heater, Water - Engine
62
