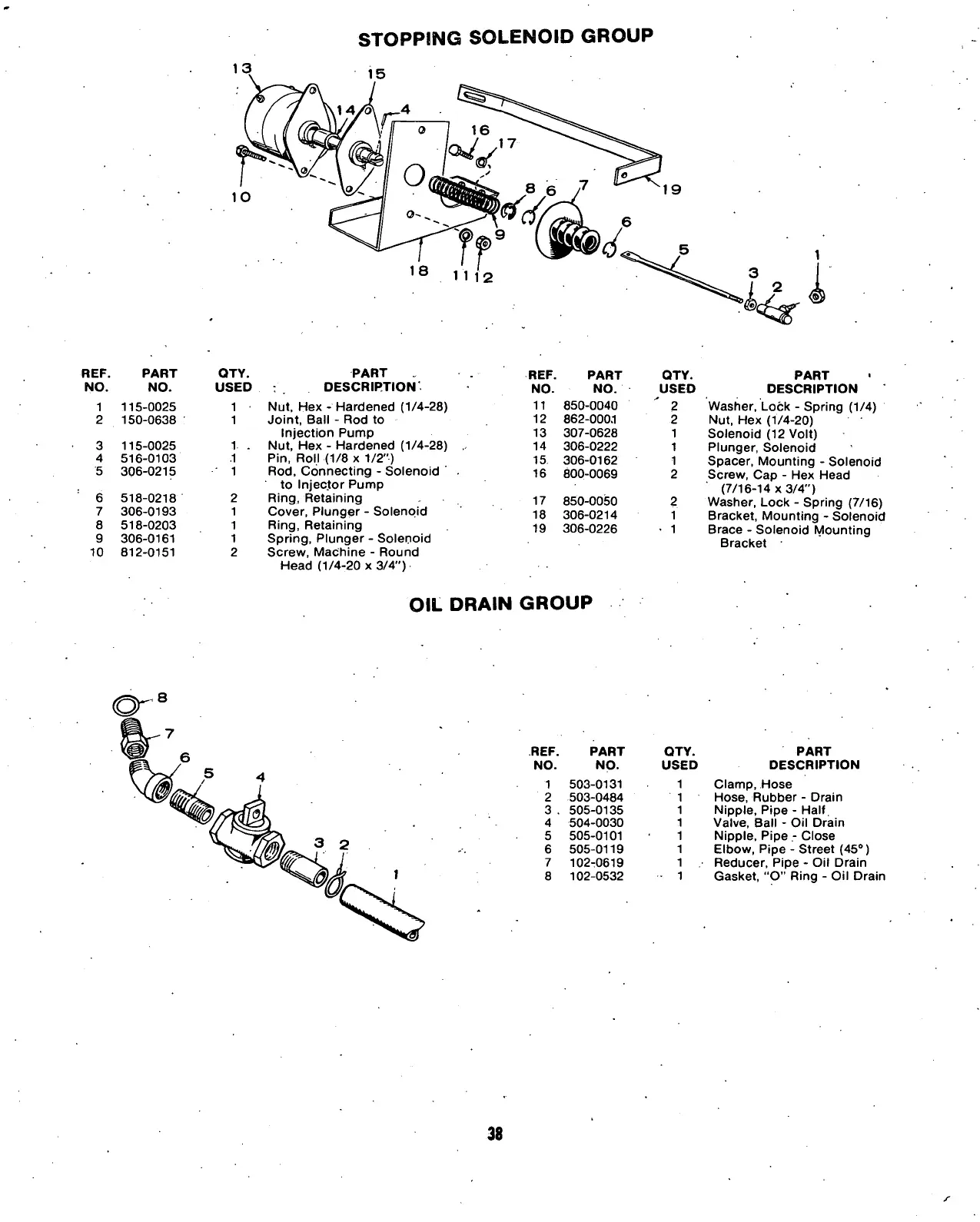

STOPPING SOLENOID GROUP
18
1112
REF. PART QTY.
NO.
NO.
USED
1 115-0025 1
2
150-0638
1
3 115-0025 1 .
4 516-0103 .1
5
306-0215 ' 1
6
518-0218
2
7 306-0193
1
8 518-0203 1
9
306-0161
1
10 812-0151
2
PART
DESCRIPTION
Nut. Hex - Hardened (1/4-28)
Joint, Ball - Rod to
Injection Pump
Nut, Hex - Hardened (1/4-28)
Pin, Roll (1/8 x 1/2")
Rod, Connecting - Solenoid '
to Injector Pump
Ring, Retaining
Cover, Plunger - Solenoid
Ring, Retaining
Spring, Plunger - Solenoid
Screw, Machine - Round
Head (1/4-20 x 3/4")
REF.
PART QTY.
PART
NO. NO. USED DESCRIPTION
11 850-0040
2
Washer, Lock - Spring (1/4)
12 862-000.1 2 Nut, Hex (1/4-20)
13 307-0628 1
Solenoid (12 Volt)
14 306-0222 1
Plunger, Solenoid
15 306-0162 1
Spacer, Mounting - Solenoid
16 800-0069 2
Screw, Cap - Hex Head
(7/16-14x3/4")
17 850-0050 2
Washer, Lock - Spring (7/16)
18 306-0214 1 Bracket, Mounting - Solenoid
19 306-0226 • 1
Brace - Solenoid Mounting
OIL DRAIN GROUP
REF. PART QTY. PART
NO. NO- USED DESCRIPTION
1 503-0131 1 Clamp, Hose
2 503-0484 1 Hose, Rubber - Drain
3 . 505-0135 1 Nipple, Pipe - Half
4 504-0030 1 Valve, Bail - Oil Drain
5 505-0101 1 Nipple, Pipe - Close
6 505-0119 1 Elbow, Pipe - Street (45°)
7 102-0619 1 Reducer, Pipe - Oil Drain
8 102-0532 - 1 Gasket, "O" Ring - Oil Drain
38
