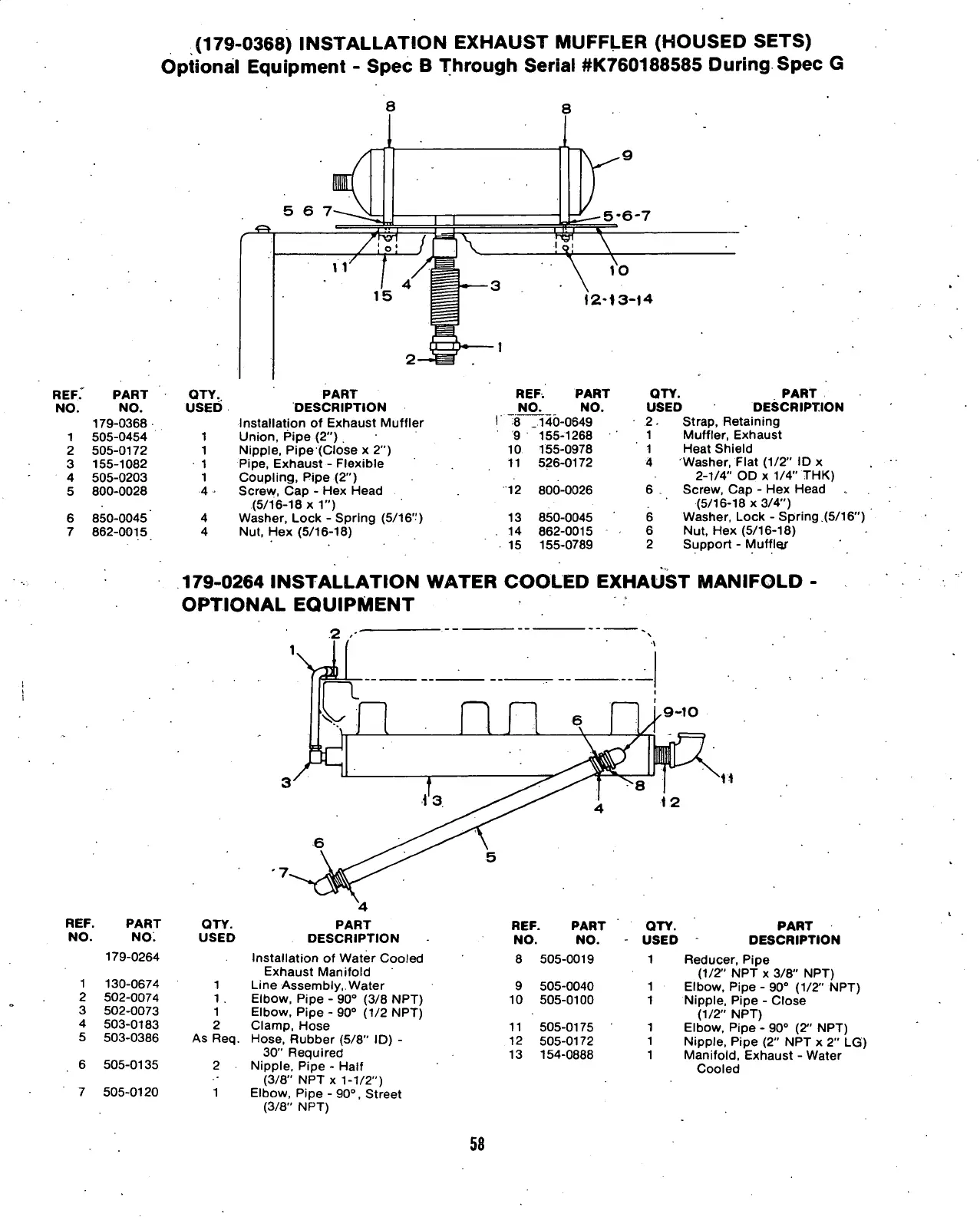

(179-0368) INSTALLATION EXHAUST MUFFLER (HOUSED SETS)
Optional Equipment - Spec B Through Serial #K760188585 During Spec G
REF."
PART QTY.
PART
REF, PART QTY. PART
NO.
NO.
USED
DESCRIPTION
NO. NO.
USED DESCRIPTION
179-0368 Installation of Exhaust Muffler
1' «
.140-0649
2. Strap, Retaining
1
505-0454
1 Union, Pipe (2")
9 155-1268 1 Muffler, Exhaust
2 505-0172 1
Nipple, Pipe (Close x 2")
10
155-0978 1 Heat Shield
3
155-1082
• 1
Pipe, Exhaust - Flexible
11 526-0172 4 Washer, Flat (1/2" ID x
4
505-0203
1 Coupling, Pipe (2")
2-1/4" OD x 1/4" THK)
5
800-0028
4 „
Screw, Cap - Hex Head
12 800-0026 6 . Screw, Cap - Hex Head
(5/16-18 x 1")
(5/16-18x3/4")
6 850-0045
4 Washer, Lock - Spring (5/16")
13 850-0045 6 Washer, Lock - Spring .(5/16")
7
862-0015
4 Nut, Hex (5/16-18)
. 14
862-0015
6 Nut, Hex (5/16-18)
15
155-0789 2 Support - Muffler
179-0264 INSTALLATION WATER COOLED EXHAUST MANIFOLD -
OPTIONAL EQUIPMENT
.2 N
REF.
PART
QTY.
NO.
NO.
USED
179-0264
1
130-0674
1
2
502-0074
1 .
3
502-0073
1
4
503-0183 2
5
503-0386
As Req
6
505-0135
2
7
505-0120
1
1
6
9-10
4
PART
DESCRIPTION
Installation of Water Cooled
Exhaust Manifold
Line Assembly,. Water
Elbow, Pipe - 90° (3/8 NPT)
Elbow, Pipe-90° (1/2 NPT)
Clamp, Hose
Hose, Rubber (5/8" ID) -
30" Required
Nipple, Pipe - Half
(3/8" NPT x 1-1/2")
Elbow, Pipe - 90°, Street
(3/8" NPT)
REF. PART QTY. PART
NO. NO. USED DESCRIPTION
8 505-0019 1 Reducer, Pipe
(1/2" NPT x 3/8" NPT)
9 505-0040 1 Elbow, Pipe - 90" (1/2" NPT)
10 505-0100 1 Nipple, Pipe - Close
(1/2" NPT)
11 505-0175 1 Elbow, Pipe - 90° (2" NPT)
12 505-0172 1 Nipple, Pipe (2" NPT x 2" LG)
13 154-0888 1 Manifold, Exhaust - Water
Cooled
58
