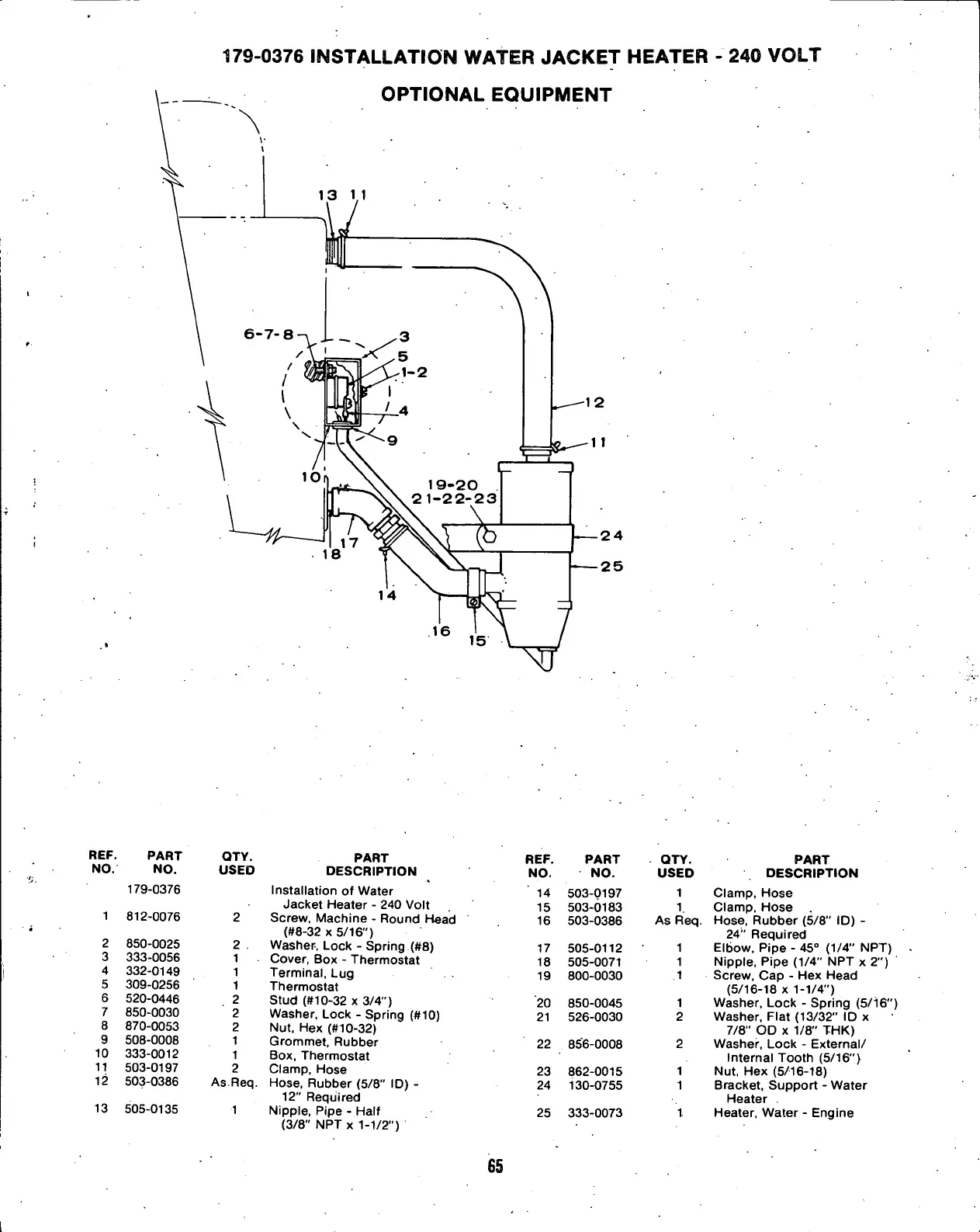

179-0376 INSTALLATION WATER JACKET HEATER - 240 VOLT
OPTIONAL EQUIPMENT
REF.
PART
QTY.
NO.
NO.
USED
179-0376
1
812-0076
2
2
850-0025
2
3
333-0056
1
4 332-0149
1
5
309-0256 1
6
520-0446 2
7
850-0030
2
8
870-0053
2
9
508-0008 1
10 333-0012
1
11
503-0197
2
12
503-0386
As. Req
13
505-0135
1
PART
DESCRIPTION
Installation of Water
Jacket Heater - 240 Volt
Screw, Machine - Round Head
(#8-32x5/16")
Washer, Lock - Spring (#8)
Cover, Box - Thermostat
Terminal, Lug
Thermostat
Stud (#10-32 x 3/4")
Washer, Lock - Spring (#10)
Nut, Hex (#10-32)
Grommet, Rubber
Box, Thermostat
Clamp, Hose
Hose, Rubber (5/8" ID) -
12" Required
Nipple, Pipe - Half
(3/8" NPT x 1-1/2")
REF. PART
QTY.
PART
NO. NO. USED DESCRIPTION
' 14
503-0197
1
Clamp, Hose
15
503-0183
1. Clamp, Hose
16
503-0386
As Req.
Hose, Rubber (5/8" ID) -
24" Required
17 505-0112 1 Elbow, Pipe - 45° (1/4" NPT)
18 505-0071 1
Nipple, Pipe (1/4" NPT x 2")
19 800-0030
1 Screw, Cap - Hex Head
(5/16-18 x 1-1/4")
20
850-0045
1 Washer, Lock - Spring (5/16")
21 526-0030
2
Washer, Flat (13/32" ID x
7/8" OD x 1/8" THK)
22
856-0008
2 Washer, Lock - External/
Internal Tooth (5/16"}
23 862-0015
1
Nut, Hex (5/16-18)
24
130-0755
1 Bracket, Support - Water
Heater
25
333-0073 1 Heater, Water - Engine
65
