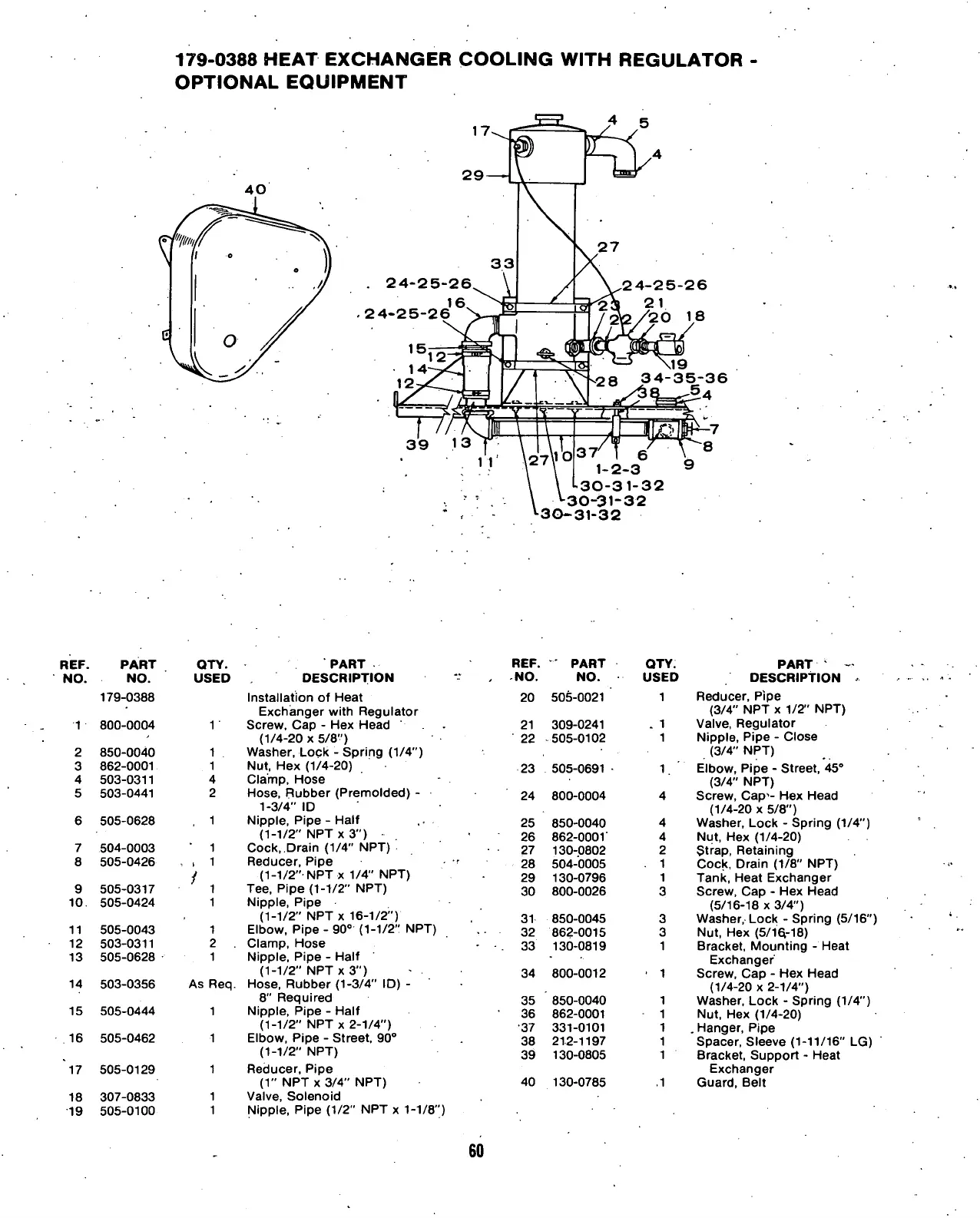

179-0388
HEAT
EXCHANGER
COOLING
WITH
REGULATOR
OPTIONAL
EQUIPMENT
30-31-32
30-31-32
30-31-32
REF.
PART QTY.
PART
REF.
PART
QTY.
PART
NO.
NO.
USED
DESCRIPTION
. -NO.
NO.
USED
DESCRIPTION -
179-0388 Installation of Heat
Exchanger with Regulator
20
505-0021
1
Reducer, Pipe
(3/4"
NPT x 1/2" NPT)
1 800-0004 1 Screw, Cap - Hex Head 21 309-0241 . 1
Valve,
Regulator
•
(1/4-20 x 5/8") 22
505-0102
1 Nipple, Pipe - Close
2
850-0040
1 .
Washer, Lock - Spring (1/4")
(3/4"
NPT)
3 862-0001 1 Nut, Hex (1/4-20)
23
505-0691 •
1.
' Elbow, Pipe - Street, 45°
4 503-0311 4 Clamp, Hose
(3/4"
NPT)
5 503-0441 2
Hose,
Rubber (Premolded) -
1-3/4"
ID
24
800-0004
4 Screw, Cap^- Hex Head
(1/4-20 x 5/8")
6 505-0628 , 1 Nipple, Pipe - Half
25
850-0040
4 Washer, Lock - Spring (1/4")
(1-1/2"
NPT x 3") -
26
862-0001'
4 Nut, Hex (1/4-20) . .
7 504-0003 " 1 Cock,.Drain (1/4" NPT)
27
130-0802
2
Strap,
Retaining
8 505-0426 , > 1 Reducer, Pipe • •<
28 504-0005
. 1
Cock, Drain (1/8" NPT)
i
(1-1/2"-NPT x 1/4" NPT)
29
130-0796
1 Tank, Heat Exchanger
9 505-0317 1
Tee,
Pipe (1-1/2" NPT)
30
800-0026
3
Screw, Cap - Hex Head
10.
505-0424 1 Nipple, Pipe
(5/16-18x3/4")
(1-1/2"
NPT x 16-1/2")
31
850-0045
3
Washer, Lock - Spring (5/16")
11 505-0043 1 Elbow, Pipe - 90° (1-1/2" NPT)
32
862-0015
3
Nut, Hex (5/1^-18)
12 503-0311 2 . Clamp, Hose
. 33 130-0819
1
Bracket, Mounting - Heat
13 505-0628 1 Nipple, Pipe - Half
Exchanger
(1-1/2"
NPT x 3")
34 800-0012
• 1
Screw, Cap - Hex Head
14 503-0356 As Req.
Hose,
Rubber (1-3/4" ID) -
(1/4-20 x 2-1/4")
8" Required
35 " 850-0040
1
Washer, Lock - Spring (1/4")
15 505-0444 1 Nipple, Pipe - Half
36 862-0001 1
Nut, Hex (1/4-20)
(1-1/2"
NPT x 2-1/4")
•37
331-0101
1
. Hanger, Pipe
16 505-0462 1 Elbow, Pipe - Street, 90°
38
212-1197
1
Spacer, Sleeve (1-11/16" LG)
(1-1/2"
NPT)
39 130-0805
1
Bracket, Support - Heat
'l7
505-0129
1
Reducer, Pipe
Exchanger
(1"
NPT x 3/4" NPT) 40 130-0785 .1
Guard,
Belt
18 307-0833
1
Valve,
Solenoid
19
505-0100
1 Nipple, Pipe (1/2" NPT x
1-1/8")
60
To Next Page
