Onkyo HTX-22HD User Manual

20

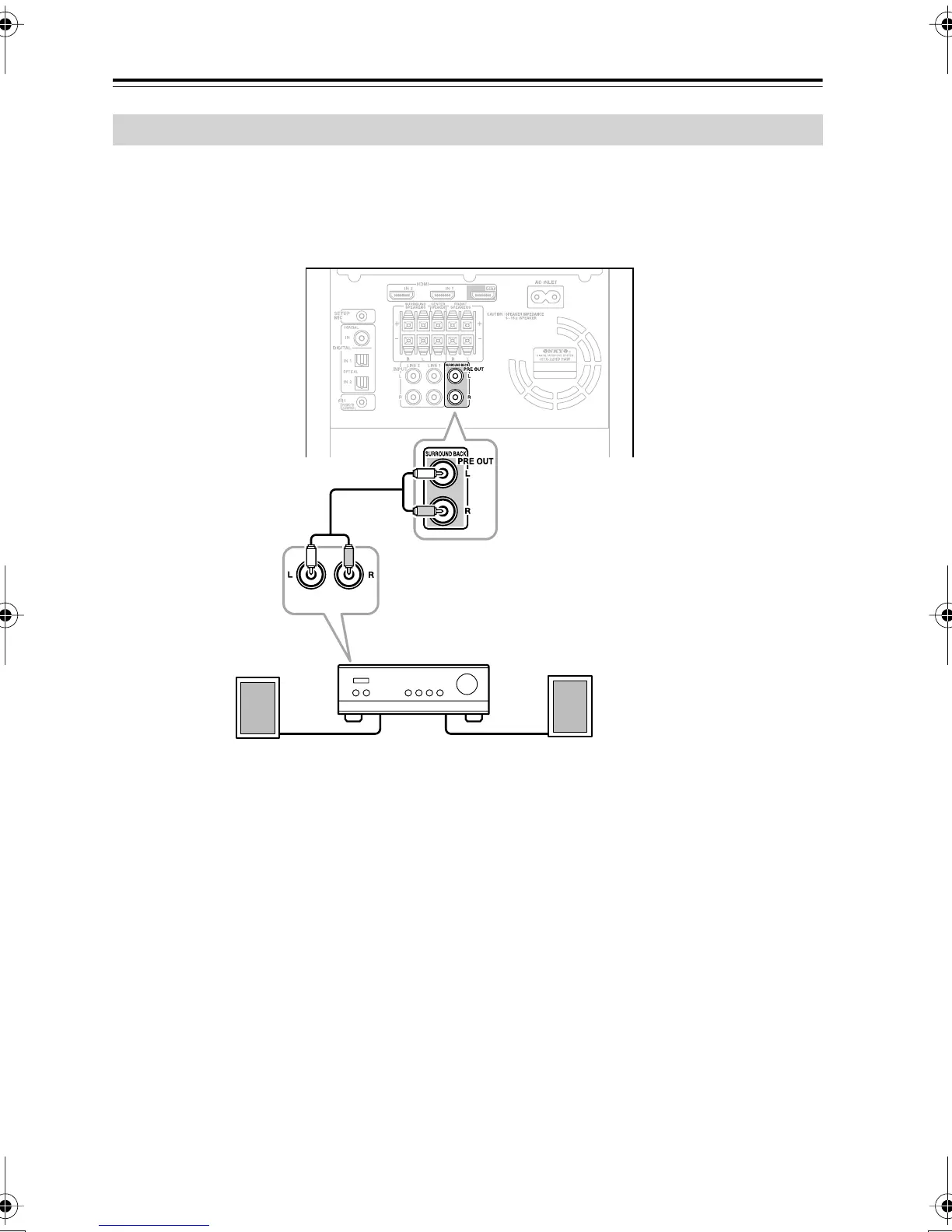

Connecting the Speakers —Continued
For 7.1-channel surround sound, in addition to the 5.1 speakers shown in the hookup diagram on
page 19, you’ll need a pair of surround back speakers and a power amp to drive them. Using an
RCA audio cable, connect the HTX-22HD’s SURROUND BACK PRE OUT jacks to the audio
input on the power amp, as shown below.
Note:
• If you’re using only one surround back speaker, connect it to the SURROUND BACK PRE
OUT L jack.
Connecting Surround Back Speakers
AUDIO INPUT
Surround
back right
speaker
Surround
back left
speaker
Power amp
HTX-22HDEn.book Page 20 Monday, April 7, 2008 2:03 PM

Onkyo HTX-22HD Specifications

General

Product color	Black
RMS rated power	50 W
Remotely operated	Yes
Audio output channels	2.1 channels
Satellite speakers RMS power	2 W
Satellite speaker frequency range	70 - 50000 Hz
Subwoofer frequency range	35 - 200 Hz
