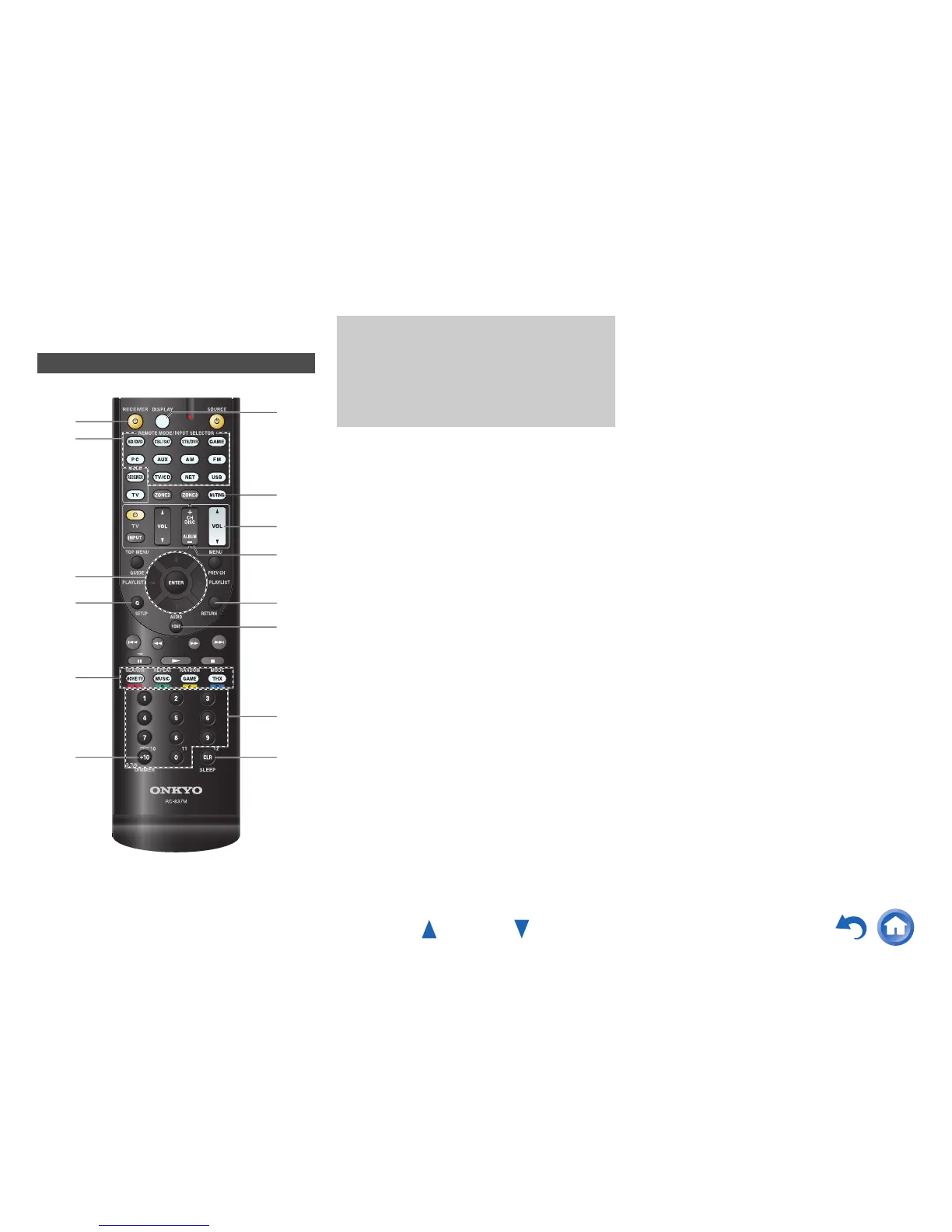

Remote Controller
For detailed information, see the pages in parentheses.
a 8 RECEIVER button (20)
b REMOTE MODE/INPUT SELECTOR buttons (23)
c q/w/e/r and ENTER buttons
d Q SETUP button (47)
e Listening Mode buttons (37)
f DIMMER button (45)
g DISPLAY button (45)
h MUTING button (46)
i VOL q/w button (23)
j RETURN button
k HOME button (44)
l SLEEP button (45)
■ Controlling the tuner
To control the AV receiver’s tuner, press AM or FM (or
RECEIVER).
a q/w buttons (31)
b D.TUN button (31)
c DISPLAY button
d CH +/– button (32)
e Number buttons (31)
Controlling the AV Receiver
a
i
j
k
d
l
bf
d
ac
b
h
gc
e
e
To control the AV receiver, press RECEIVER to select
Receiver mode.
You can also use the remote controller to control
Onkyo Blu-ray Disc/DVD player, CD player, and
other components.
See “Entering Remote Control Codes” for more
details (➔ page 75).

Onkyo TX-NR616 Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	240 W
Dynamic power per channel (4 Ohm)	210 W
Dynamic power per channel (8 Ohm)	120 W
Power output per channel (1KHz@6 Ohm)	160 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Composite video in	5
Digital audio optical in	2
Component video (YPbPr/YCbCr) in	1
Connectivity technology	Wired
Speakers connectivity type	Banana connector
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display	-
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	Not supported
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	620 W
Package weight	13500 g

Weight and Dimensions

Depth	328 mm
Width	435 mm
Height	173.5 mm
Weight	11000 g
