Advanced Operations
En-70

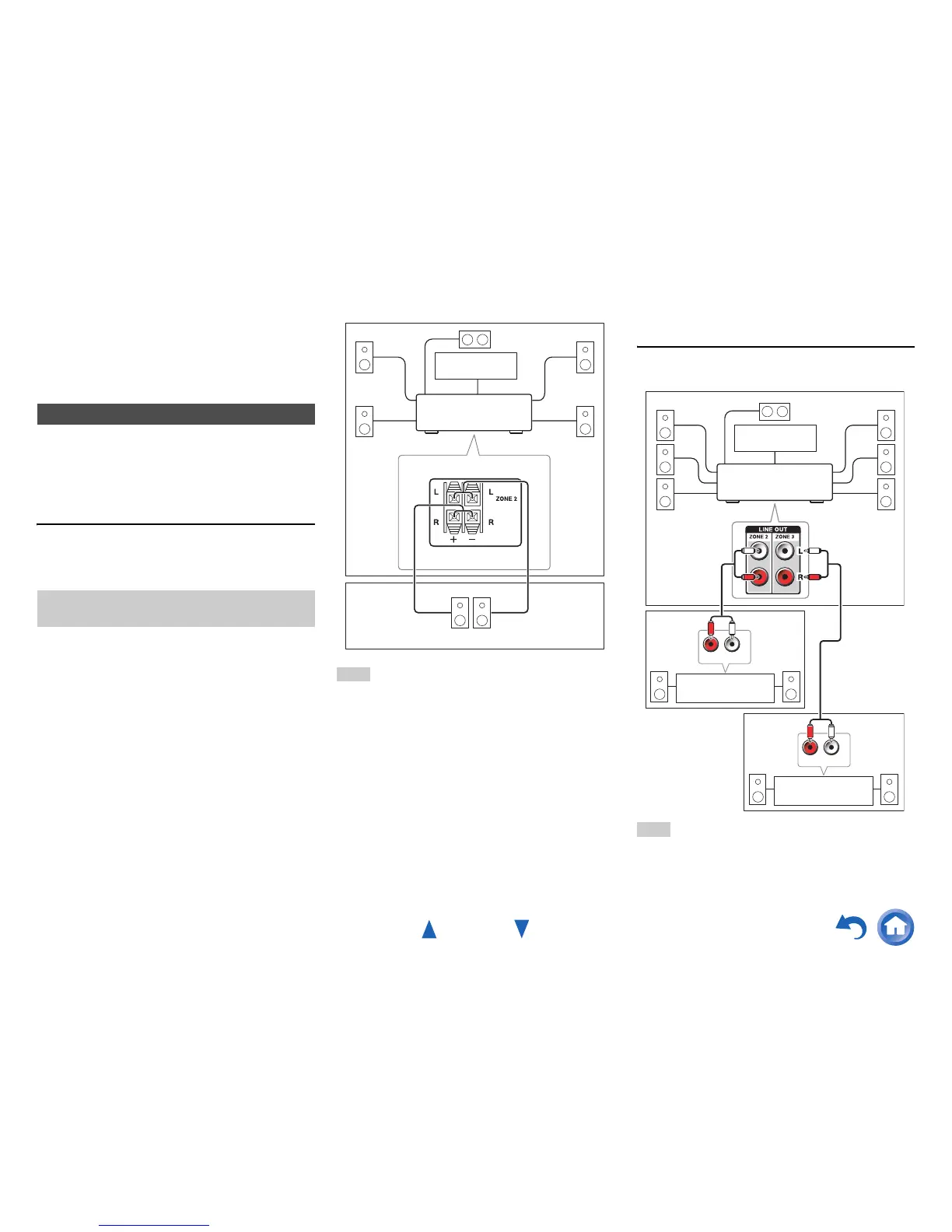

Multi Zone
In addition to the main listening room, you can also enjoy
playback in the other room, or as we call Multi Zone. And,
you can select a different source for each room.
There are two ways you can connect Zone speakers:
1. Connect them directly to the AV receiver.
2. Connect them to an additional amplifier.
Connecting Your Zone 2 Speakers Directly
to the AV receiver
This setup allows you to select different sources for Main
room and Zone 2. This is called Powered Zone, as the
Zone 2 speakers are powered by the AV receiver.
Note
• With this setup, the volume of Zone 2 is controlled by the AV
receiver.
• When Powered Zone 2 is used, playback in the main room is
reduced to 5.1 channels.
Connecting the Zone Speakers to an
Additional Amplifier
This setup allows 7.1-channel playback in your main
listening room and 2-channel stereo playback in Zone 2/3.
Note
• The volume of Zone 2/3 must be set on the Zone 2/3 amplifier.
Making Multi Zone Connections
To use this setup, you must activate the Powered Zone
2 setting (➔ page 54).
L R
Main room
TV
AV receiver
Zone 2
R
L
IN
R
L
IN
Main room
TV
Zone 2
AV receiver
Receiver/
integrated amp
Receiver/
integrated amp
Zone 3
To Next Page
