Onkyo TX-NR616 User Manual

Connections
En-19
This section explains how to connect the supplied indoor FM antenna and AM loop antenna.
The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use
the tuner.
Note
• Once your AV receiver is ready for use, you’ll need to tune into a radio station and position the antenna to achieve the best possible
reception.
• Keep the AM loop antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords.
Tip
• If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.
• If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM
antenna.

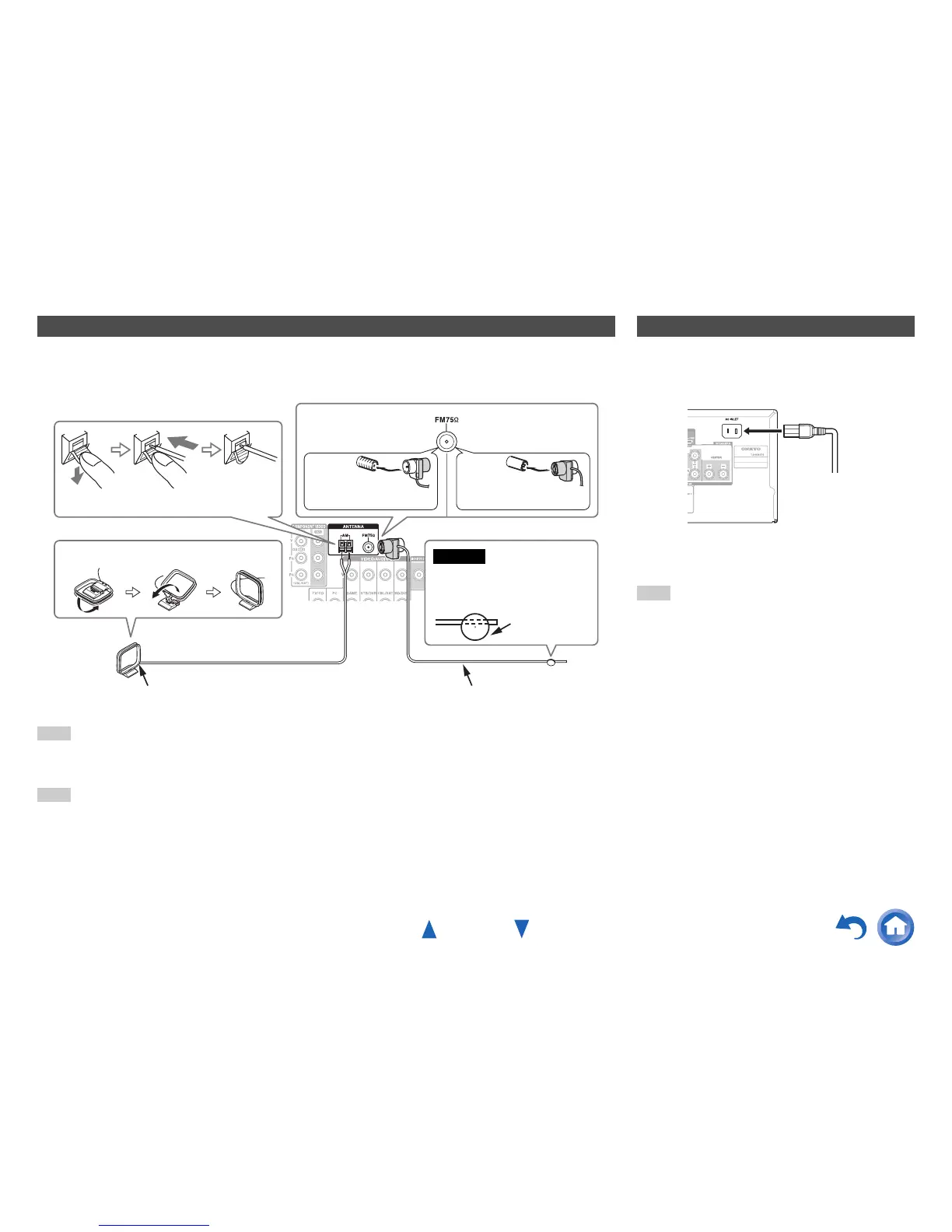

Connecting the Antennas
Thumbtacks, etc.
Insert the plug fully
into the jack.
Insert the plug fully
into the jack.
North American and
Taiwanese models
European, Australian
and Asian models
Push. Insert wire. Release.
Assembling the AM loop antenna
Indoor FM antenna (supplied)AM loop antenna (supplied)
Caution
• Be careful not to injure yourself
when using thumbtacks.
Note
• Before connecting the power cord, connect all of your
speakers and AV components.
• Turning on the AV receiver may cause a momentary power surge
that might interfere with other electrical equipment on the same
circuit. If this is a problem, plug the AV receiver into a different
branch circuit.
• Do not use a power cord other than the one supplied with the AV
receiver. The supplied power cord is designed exclusively for use
with the AV receiver and should not be used with any other
equipment.
• Never disconnect the power cord from the AV receiver while the
other end is still plugged into a wall outlet. Doing so may cause
an electric shock. Always disconnect the power cord from the
wall outlet first, and then the AV receiver.
Connecting the Power Cord
1
(Taiwanese models)
Connect the supplied power cord to the AV
receiver’s AC INLET.
2
Plug the power cord into an AC wall outlet.
To AC wall outlet

Onkyo TX-NR616 Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	240 W
Dynamic power per channel (4 Ohm)	210 W
Dynamic power per channel (8 Ohm)	120 W
Power output per channel (1KHz@6 Ohm)	160 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Composite video in	5
Digital audio optical in	2
Component video (YPbPr/YCbCr) in	1
Connectivity technology	Wired
Speakers connectivity type	Banana connector
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display	-
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	Not supported
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	620 W
Package weight	13500 g

Weight and Dimensions

Depth	328 mm
Width	435 mm
Height	173.5 mm
Weight	11000 g
