Connections
En-17
Connect your components to the appropriate jacks. The
default input assignments are shown below. See
“Connection Tips and Video Signal Path” for more
information (➔ page 89).
✔: Assignment can be changed (➔ page 53).
Note
*1
When the USB input is selected, you can input video signals
from the VIDEO jack. Video signals input from VIDEO will
be output from the MONITOR OUT and HDMI output jacks.
*2
Do not connect the AV receiver’s USB port to a USB port on
your computer. Music on your computer cannot be played
through the AV receiver in this way.
*3
Only the front-panel USB input is compatible with
iPod/iPhone.
*4
Connect a turntable (MM) that has a phono preamp built-in. If
your turntable (MM) doesn’t have it, you’ll need a
commercially available phono preamp.
If your turntable has a moving coil (MC) type cartridge, you’ll
need a commercially available MC head amp or MC
transformer as well as a phono preamp. See your turntable’s
manual for details.
• With connection C, you can enjoy Dolby Digital and
DTS. (To listen in Zone 2/3 as well, use C and F.)
• With connection F, you can enjoy audio from external
components while you are in Zone 2/3.
• With connection F, if your Blu-ray Disc/DVD player
has both the main stereo and multichannel outputs, be
sure to connect the main stereo.

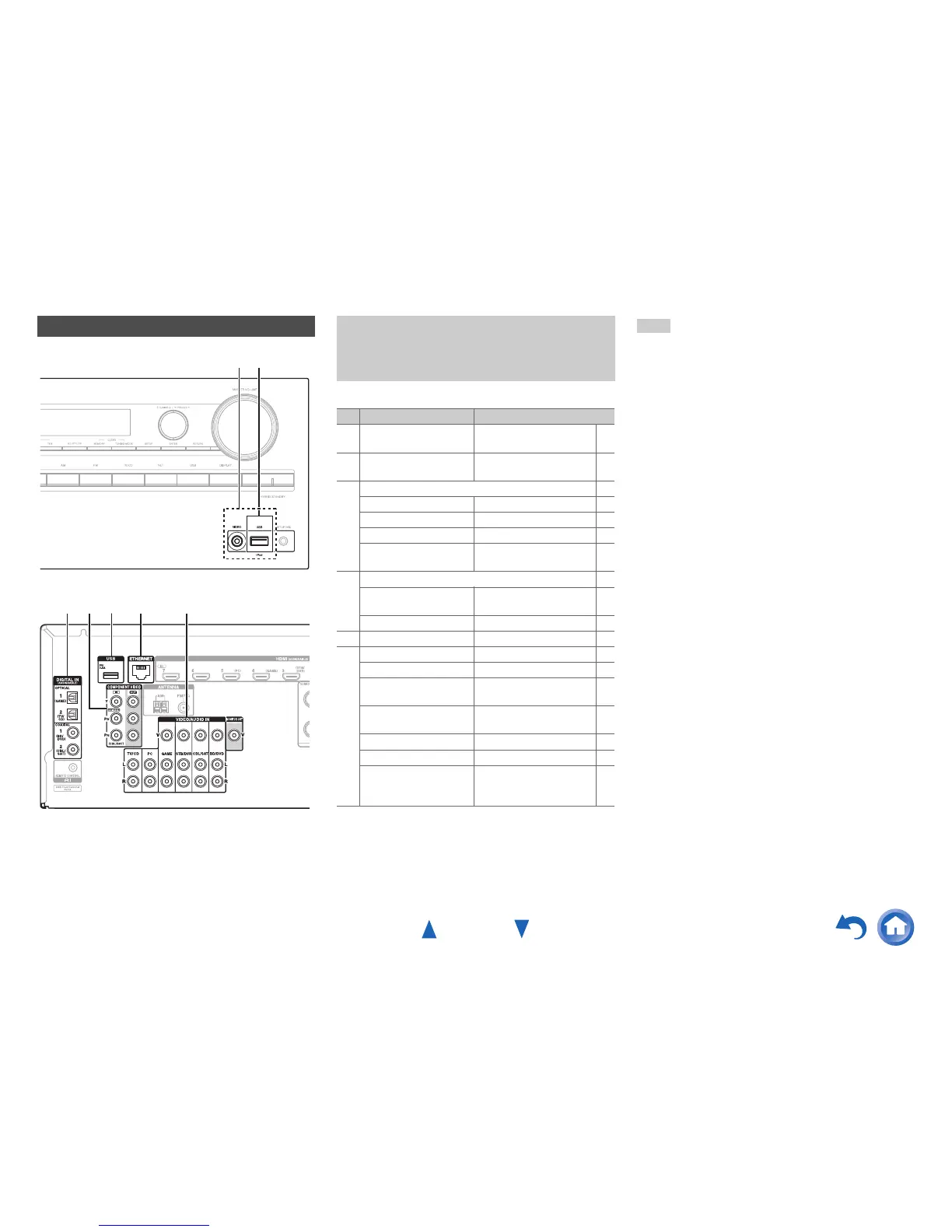

Connecting Your Components
BA
CFDEB
The on-screen menus appear only on a TV that is
connected to HDMI OUT MAIN. If your TV is
connected to other video outputs, use the AV
receiver’s display when changing settings.
No. Jack/Port Components
A
USB, VIDEO
*1
iPod/iPhone (video
playback)
B
USB
*2*3
iPod/iPhone, MP3 player,
USB flash drive
C
DIGITAL IN
OPTICAL 1 (GAME) Game consoles ✔
OPTICAL 2 (TV/CD) TV, CD player ✔
COAXIAL 1 (BD/DVD) Blu-ray Disc/DVD player ✔
COAXIAL 2 (CBL/SAT) Satellite/cable set-top box,
RI dock, etc.
✔
D
COMPONENT VIDEO
IN (CBL/SAT) Satellite/cable set-top box,
RI dock, etc.
✔
OUT TV, projector, etc.
E
ETHERNET Router
F
MONITOR OUT TV, projector, etc.
BD/DVD IN Blu-ray Disc/DVD player
CBL/SAT IN Satellite/cable set-top box,
etc.
STB/DVR IN Set top box/Digital video
recorder, etc
GAME IN Game console, RI dock
PC IN Personal computer
TV/CD IN TV, CD player, cassette
tape deck, MD, CD-R,
Turntable
*4
, RI dock

Onkyo TX-NR616 Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	240 W
Dynamic power per channel (4 Ohm)	210 W
Dynamic power per channel (8 Ohm)	120 W
Power output per channel (1KHz@6 Ohm)	160 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Composite video in	5
Digital audio optical in	2
Component video (YPbPr/YCbCr) in	1
Connectivity technology	Wired
Speakers connectivity type	Banana connector
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display	-
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	Not supported
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	620 W
Package weight	13500 g

Weight and Dimensions

Depth	328 mm
Width	435 mm
Height	173.5 mm
Weight	11000 g
